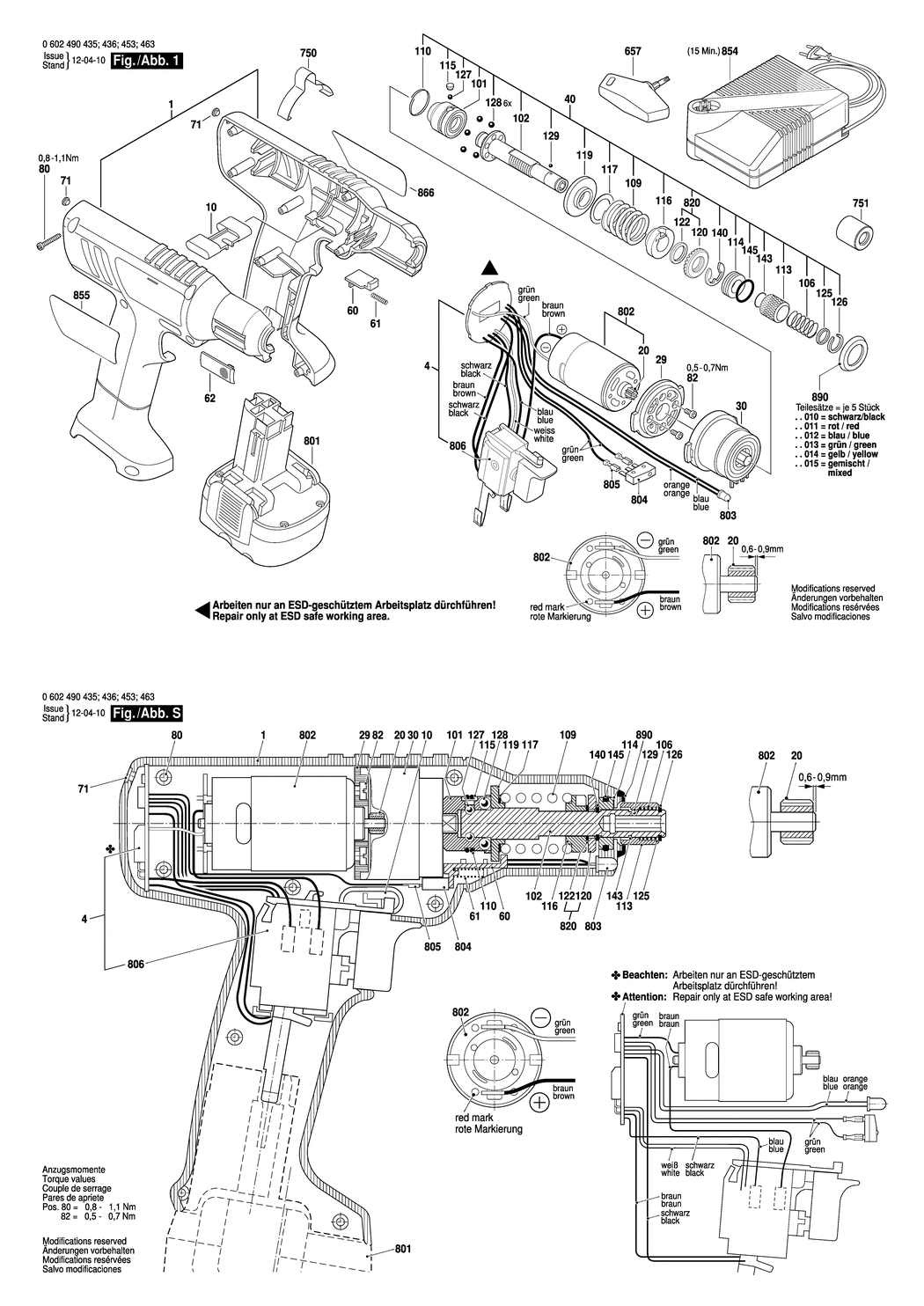

1 - HOUSING SECTION
BSD-3605105015.A7
3605105015
|
£27.23
|
£32.68
|
|
|
4 - ELECTRONIC ASSEMBLY
BSD-3607200106.A19
3607200106
|
£218.41
|
£262.09
|
|
|
10 - SWITCH SLIDE
BSD-3601099003.A111
3601099003
|
£2.80
|
£3.36
|
|
|
20 - PINION
BSD-3606328018.A28
3606328018
|
£4.26
|
£5.11
|
|
|
29 - INTERMEDIATE FLANGE
BSD-2605719011.A35
2605719011
|
£3.72
|
£4.47
|
|
|
30 - PLANETARY GEAR TRAIN
BSD-3607030490.A13
3607030490
|
£48.38
|
£58.06
|
|
|
40 - ASSEMBLY KIT
BSD-3607031535.A15
3607031535
|
£283.50
|
£340.20
|
|
|
60 - SWITCHING ELEMENT
BSD-3601923022.A57
3601923022
|
£5.30
|
£6.36
|
|
|
61 - COMPRESSION SPRING
BSD-3604611022.A22
3604611022
|
£3.72
|
£4.47
|
|
|
62 - PUSHER
BSD-3601923029.A56
3601923029
|
£5.30
|
£6.36
|
|
|
71 - LIGHT CONDUCTOR
BSD-3604460132.A116
3604460132
|
£2.80
|
£3.36
|
|
|
80 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A417
2603490018
|
£1.75
|
£2.10
|
|
|
82 - TORX SH CAP SCREW M3x5-8.8-Z
BSD-2603414048.A55
2603414048
|
£1.75
|
£2.10
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A11
3601119236
|
£3.72
|
£4.47
|
|
|
101 - CLUTCH ELEMENT
BSD-3606445043.A111
3606445043
|
£102.57
|
£123.08
|
|
|
102 - OUTPUT SHAFT
BSD-3603124023.A54
3603124023
|
£68.42
|
£82.10
|
|
|
106 - COMPRESSION SPRING
BSD-3604610011.A54
3604610011
|
£2.80
|
£3.36
|
|
|
109 - COMPRESSION SPRING
BSD-3604619020.A32
3604619020
|
£5.58
|
£6.70
|
|
|
110 - RETAINING RING
BSD-3600224053.A63
3600224053
|
£1.75
|
£2.10
|
|
|
113 - CLAMP BUSHING
BSD-3600499023.A90
3600499023
|
£18.96
|
£22.75
|
|
|
114 - PLAIN BEARING
BSD-3600921001.A88
3600921001
|
£10.10
|
£12.12
|
|
|
115 - SEALING PLATE
BSD-3601023011.A137
3601023011
|
£2.61
|
£3.13
|
|
|
116 - SETTING RING
BSD-3600134014.A137
3600134014
|
£31.64
|
£37.97
|
|
|
117 - PLAIN WASHER 0.5 MM
BSD-1600101023.A38
1600101023
|
£1.75
|
£2.10
|
|
|
119 - SUPPORT DISC
BSD-3600190036.A43
3600190036
|
£8.67
|
£10.41
|
|
|
120 - CATCH DISK
BSD-3603344046.A45
3603344046
|
£33.74
|
£40.49
|
|
|
122 - SHIM WASHER
BSD-3600101052.A43
3600101052
|
£8.67
|
£10.41
|
|
|
125 - BACKUP RING
BSD-3600202020.A57
3600202020
|
£8.67
|
£10.41
|
|
|
126 - RETAINING RING
BSD-3600224006.A103
3600224006
|
£2.80
|
£3.36
|
|
|
127 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A72
1903230006
|
£2.16
|
£2.59
|
|
|
128 - BALL 4.5 MM III DIN 5401-ST
BSD-1903230008.A36
1903230008
|
£1.75
|
£2.10
|
|
|
129 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A154
1903230003
|
£2.61
|
£3.13
|
|
|
140 - LOCKING WASHER DIN 6799-9-FSt
BSD-2916080012.A18
2916080012
|
£1.75
|
£2.10
|
|
|
143 - O-RING 9.0x1.2 MM
BSD-3600210038.A86
3600210038
|
£2.61
|
£3.13
|
|
|
145 - O-RING
BSD-3600210116.A57
3600210116
|
£2.80
|
£3.36
|
|
|
657 - SCREWDRIVER
BSD-3607950027.A181
3607950027
|
£14.91
|
£17.89
|
|
|
750 - SUSPENSION LOOP
BSD-3601923024.A86
3601923024
|
£11.30
|
£13.56
|
|
|
751 - PROTECTIVE CAP
BSD-3605500210.A78
3605500210
|
£16.74
|
£20.09
|
|
|
801 - SLIDE-IN ACCU PACKAGE 9.6V.2.6Ah.NiMh
BSD-2607335681.A37
2607335681
|
£116.15
|
£139.38
|
|
|
802 - DC MOTOR 9.6V
BSD-3607031551.A1
3607031551
|
£33.74
|
£40.49
|
|
|
803 - LIGHT-EMITTING-DIODE
BSD-3609202764.A28
3609202764
|
£23.86
|
£28.63
|
|
|
804 - MICROSWITCH
BSD-3609202762.A5
3609202762
|
£27.23
|
£32.68
|
|
|
805 - PLUG SET
BSD-3609202766.A5
3609202766
|
£6.52
|
£7.83
|
|
|
806 - SWITCH
BSD-3607200083.A58
3607200083
|
£59.53
|
£71.44
|
|
|
820 - CATCH DISK
BSD-3603344047.A68
3603344047
|
£23.86
|
£28.63
|
|
|
854 - FAST CHARGER EU 230/7.2-24V. 30 MIN.
BSD-2607225027.A86
2607225027
|
£120.11
|
£144.13
|
|
|
854 - FAST CHARGER GB 230/7.2-24V. 30 MIN.
BSD-2607225029.A82
2607225029
|
£88.07
|
£105.68
|
|
|
854 - FAST CHARGER AUS 240/7.2-24V. 30 MIN.
BSD-2607225031.A69
2607225031
|
£98.11
|
£117.73
|
|
|
854 - FAST CHARGER USA 120/7.2-24V. 30 MIN.
BSD-2607225033.A70
2607225033
|
-
|
|
|
|
854 - FAST CHARGER SAM 115/7.2-24V. 15 MIN.
BSD-2607225035.A58
2607225035
|
-
|
|
|
|
854 - FAST CHARGER J 100/7.2-24V. 1h
BSD-2607224435.A160
2607224435
|
£120.11
|
£144.13
|
|
|
854 - FAST CHARGER ROK 220/7.2-24V. 30 MIN.
BSD-2607225039.A70
2607225039
|
£80.61
|
£96.73
|
|
|
855 - NAMEPLATE
BSD-160703129Y.A1
160703129Y
|
£5.30
|
£6.36
|
|
|
866 - MANUFACTURER'S NAMEPLATE
BSD-3601119212.A1
3601119212
|
£8.67
|
£10.41
|
|
|
890 - PARTS SET
BSD-3600106010.A30
3600106010
|
£23.86
|
£28.63
|
|
|
890 - PARTS SET
BSD-3600106011.A59
3600106011
|
£21.52
|
£25.83
|
|
|
890 - PARTS SET
BSD-3600106012.A30
3600106012
|
£23.86
|
£28.63
|
|
|
890 - PARTS SET
BSD-3600106013.A59
3600106013
|
£21.52
|
£25.83
|
|
|
890 - PARTS SET
BSD-3600106014.A30
3600106014
|
£23.86
|
£28.63
|
|
|
890 - PARTS SET
BSD-3600106015.A59
3600106015
|
£27.23
|
£32.68
|
|
