Bosch ANGLE EXACT 50-210 / 0602492613 / --- 14.4 Volt Spare Parts

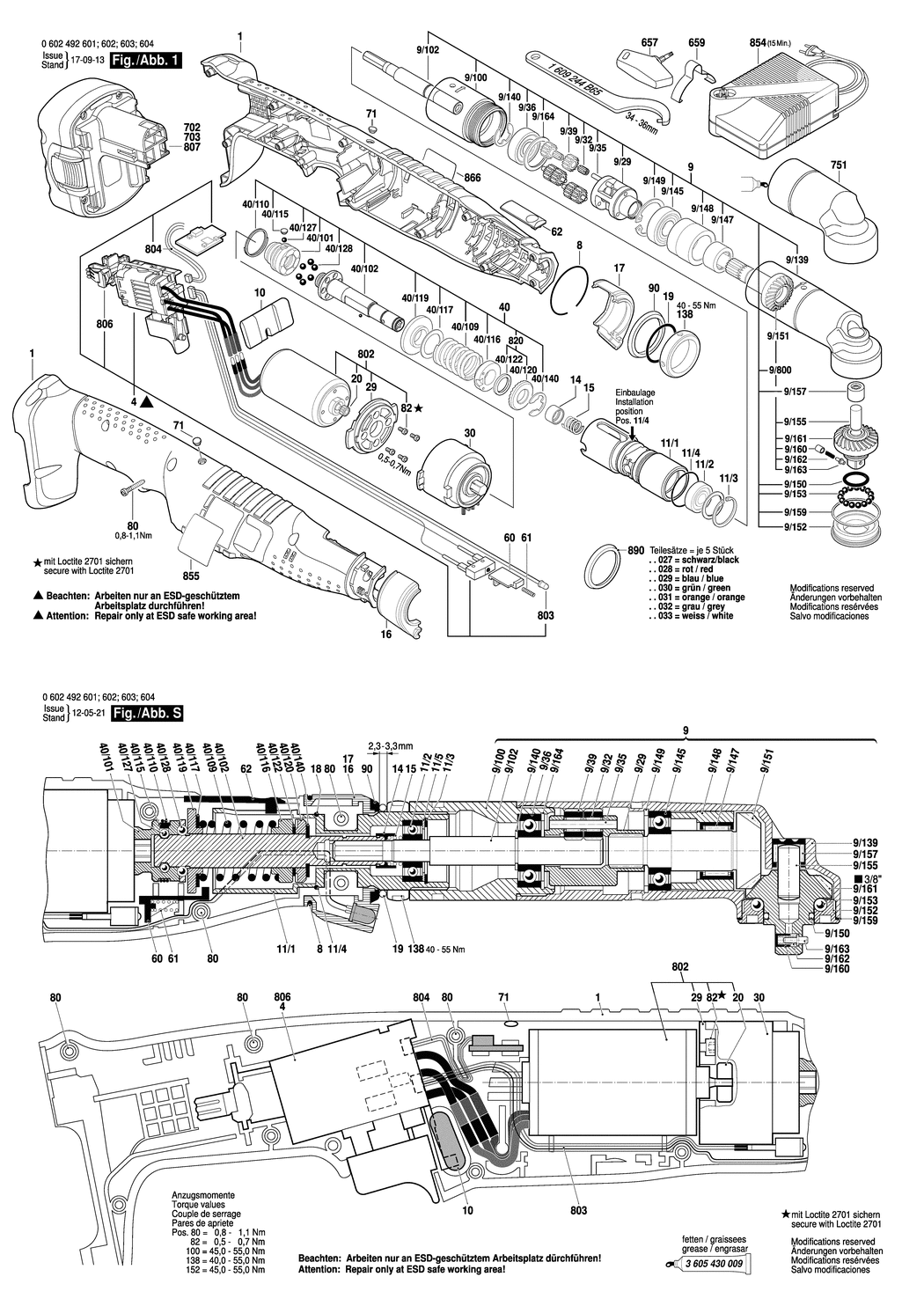

An exploded drawing and listing for the Bosch ANGLE EXACT 50-210 / 0602492613 / --- 14.4 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-3609202A34.A8 3609202A34	£63.50	£76.20
4 - ELECTRONIC ASSEMBLY BSD-3607200114.A7 3607200114	£500.46	£600.55
8 - RETAINING RING dia36.6xdia1.5 BSD-1614601016.A17 1614601016	£2.80	£3.36
9 - ANGLE HEAD BSD-3607020315.A4 3607020315	£1674.08	£2008.89
9/29 - PLANETARY-GEAR CARRIER BSD-3606337221.A5 3606337221	£156.22	£187.46
9/32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A518 3600913000	£4.26	£5.11
9/35 - STRAIGHT PIN DIN 6325-3M6x24 BSD-2917530083.A7 2917530083	£1.75	£2.10
9/36 - GROOVE BALL BEARING BSD-3600905023.A68 3600905023	£21.52	£25.83
9/39 - CYLINDRICAL GEAR BSD-3606316100.A59 3606316100	£21.52	£25.83
9/100 - HOUSING BSD-3609202A32.A13 3609202A32	£54.42	£65.30
9/102 - DRIVE SHAFT BSD-3609202A98.A2 3609202A98	£54.42	£65.30
9/139 - SPINDLE HOUSING BSD-3605106093.A13 3605106093	£500.46	£600.55
9/140 - LOCKING WASHER DIN 6799-9-FSt BSD-2916080012.A209 2916080012	£1.75	£2.10
9/145 - GROOVE BALL BEARING BSD-3600905015.A209 3600905015	£16.41	£19.69
9/147 - NEEDLE BEARING BSD-3600917020.A0 3600917020	£14.91	£17.89
9/148 - SPACER BSD-3608874921.A13 3608874921	£18.96	£22.75
9/149 - SPRING RETAINING RING DIN 472-28x1.2 MM BSD-2916660011.A18 2916660011	£1.75	£2.10
9/150 - O-RING 14.0x2.0 MM BSD-1610210116.A12 1610210116	£2.80	£3.36
9/151 - BEVEL GEAR BSD-3606333079.A1 3606333079	£251.67	£302.00
9/152 - BEARING FLANGE BSD-3605700190.A4 3605700190	£59.53	£71.44
9/153 - BALL 4.5 MM III DIN 5401-ST BSD-1903230008.A188 1903230008	£1.75	£2.10
9/155 - STRAIGHT PIN BSD-3603100000.A14 3603100000	£5.01	£6.01
9/157 - NEEDLE BEARING INA 8.00x12.00x10.00 BSD-3608874669.A4 3608874669	£13.12	£15.75
9/159 - SHIM 0.1 BSD-3608874923.A4 3608874923	£14.91	£17.89
9/159 - SHIM 0.05 BSD-3608874924.A13 3608874924	£16.41	£19.69
9/160 - GUIDE SLEEVE BSD-3600320016.A40 3600320016	£14.91	£17.89
9/161 - CROWN GEAR BSD-3606333078.A9 3606333078	£357.27	£428.72
9/162 - COMPRESSION SPRING BSD-1604611004.A63 1604611004	£2.80	£3.36
9/163 - PRESSURE SPINDLE BSD-1603124060.A26 1603124060	£5.58	£6.70
9/164 - SPRING RETAINING RING BSD-3600118006.A18 3600118006	£2.61	£3.13
9/800 - BEVEL GEAR BSD-3609202B05.A10 3609202B05	£458.51	£550.21
10 - SWITCH SLIDE BSD-3601099003.A53 3601099003	£2.80	£3.36
11/1 - ANGLE FLANGE BSD-3609202A33.A1 3609202A33	£102.57	£123.08
11/2 - BALL BEARING 8x22x7 BSD-1900905029.A195 1900905029	£21.52	£25.83
11/3 - SPRING RETAINING RING BSD-2600119000.A81 2600119000	£1.75	£2.10
11/4 - O-RING 20.0x1.0 MM BSD-3600210012.A47 3600210012	£2.80	£3.36
14 - SLEEVE BSD-3600423004.A31 3600423004	£5.58	£6.70
15 - COMPRESSION SPRING BSD-3604611037.A46 3604611037	£5.30	£6.36
16 - LED-HOLDER BSD-3605105019.A25 3605105019	£11.30	£13.56
17 - LED-HOLDER BSD-3605105020.A18 3605105020	£11.30	£13.56
19 - O-RING 25x2.5 MM BSD-1900210125.A33 1900210125	£7.36	£8.83
20 - PINION BSD-3606309061.A4 3606309061	£48.38	£58.06
29 - INTERMEDIATE FLANGE BSD-2605719011.A69 2605719011	£3.72	£4.47
30 - PLANETARY GEAR TRAIN BSD-3607030472.A12 3607030472	£63.50	£76.20
40 - ASSEMBLY KIT BSD-3607031567.A24 3607031567	£218.41	£262.09
40/101 - CLUTCH ELEMENT BSD-3606445043.A76 3606445043	£102.57	£123.08
40/102 - OUTPUT SHAFT BSD-3603124034.A5 3603124034	£51.22	£61.47
40/109 - COMPRESSION SPRING BSD-3604619020.A77 3604619020	£5.58	£6.70
40/110 - RETAINING RING BSD-3600224053.A173 3600224053	£1.75	£2.10
40/115 - SEALING PLATE BSD-3601023011.A66 3601023011	£2.61	£3.13
40/116 - SETTING RING BSD-3600134016.A8 3600134016	£59.53	£71.44
40/117 - PLAIN WASHER 0.5 MM BSD-1600101023.A117 1600101023	£1.75	£2.10
40/119 - SUPPORT DISC BSD-3600190036.A113 3600190036	£8.67	£10.41
40/120 - CATCH DISK BSD-3603344046.A5 3603344046	£33.74	£40.49
40/122 - SHIM WASHER BSD-3600101052.A28 3600101052	£8.67	£10.41
40/127 - BALL DIN 5401-3.5 MM-III-ST BSD-1903230006.A423 1903230006	£2.16	£2.59
40/128 - BALL 4.5 MM III DIN 5401-ST BSD-1903230008.A187 1903230008	£1.75	£2.10
40/140 - LOCKING WASHER DIN 6799-9-FSt BSD-2916080012.A208 2916080012	£1.75	£2.10
60 - SWITCHING ELEMENT BSD-3601923022.A125 3601923022	£5.30	£6.36
61 - COMPRESSION SPRING BSD-3604611022.A133 3604611022	£3.72	£4.47
62 - PUSHER BSD-3601923029.A135 3601923029	£5.30	£6.36
71 - LIGHT CONDUCTOR BSD-3604460132.A3 3604460132	£2.80	£3.36
80 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A168 2603490018	£1.75	£2.10
82 - TORX SH CAP SCREW M3x5-8.8-Z BSD-2603414048.A82 2603414048	£1.75	£2.10
90 - RING BSD-3600106022.A11 3600106022	£4.26	£5.11
138 - THREADED RING BSD-3603344057.A1 3603344057	£37.27	£44.72
657 - SCREWDRIVER BSD-3607950027.A84 3607950027	£14.91	£17.89
659 - SUSPENSION LOOP BSD-3601923024.A4 3601923024	£11.30	£13.56
702 - SLIDE-IN ACCU PACKAGE BSD-2607335881.A16 2607335881	£154.03	£184.84
703 - SLIDE-IN ACCU PACKAGE 14.4V.2.4Ah BSD-2607335655.A15 2607335655	£167.68	£201.22
751 - PROTECTIVE CAP BSD-3609202A29.A6 3609202A29	£13.12	£15.75
802 - DC MOTOR 14.4V BSD-3607031632.A0 3607031632	£251.67	£302.00
803 - WIRING HARNESS BSD-3609202B02.A7 3609202B02	£72.18	£86.62
804 - WIRING HARNESS BSD-3609202B03.A11 3609202B03	£18.96	£22.75
806 - CONTACT RETAINER BSD-1609280416.A39 1609280416	£10.10	£12.12
807 - SLIDE-IN ACCU PACKAGE 14.4V.2.4Ah BSD-2607335655.A14 2607335655	£167.68	£201.22
820 - CATCH DISK BSD-3603344047.A173 3603344047	£23.86	£28.63
854 - FAST CHARGER EU 230/7.2-24V. 30 MIN. BSD-2607225027.A70 2607225027	£120.11	£144.13
854 - FAST CHARGER GB 230/7.2-24V. 30 MIN. BSD-2607225029.A93 2607225029	£88.07	£105.68
854 - FAST CHARGER AUS 240/7.2-24V. 30 MIN. BSD-2607225031.A60 2607225031	£98.11	£117.73
854 - FAST CHARGER USA 120/7.2-24V. 30 MIN. BSD-2607225033.A78 2607225033	-
854 - FAST CHARGER SAM 115/7.2-24V. 15 MIN. BSD-2607225035.A50 2607225035	-
854 - FAST CHARGER J 100/7.2-24V. 1h BSD-2607224435.A11 2607224435	£120.11	£144.13
854 - FAST CHARGER ROK 220/7.2-24V. 30 MIN. BSD-2607225039.A78 2607225039	£80.61	£96.73
855 - NAMEPLATE BSD-16070312BJ.A0 16070312BJ	£5.30	£6.36
866 - MANUFACTURER'S NAMEPLATE BSD-3601110522.A1 3601110522	£13.12	£15.75
890 - PARTS SET BSD-3600106027.A10 3600106027	£21.68	£26.01
890 - PARTS SET BSD-3600106028.A58 3600106028	£21.52	£25.83
890 - PARTS SET BSD-3600106029.A10 3600106029	£21.68	£26.01
890 - PARTS SET BSD-3600106030.A58 3600106030	£21.68	£26.01
890 - PARTS SET BSD-3600106031.A10 3600106031	£23.86	£28.63
890 - PARTS SET BSD-3600106032.A58 3600106032	£21.68	£26.01
890 - PARTS SET BSD-3600106033.A10 3600106033	£21.52	£25.83
