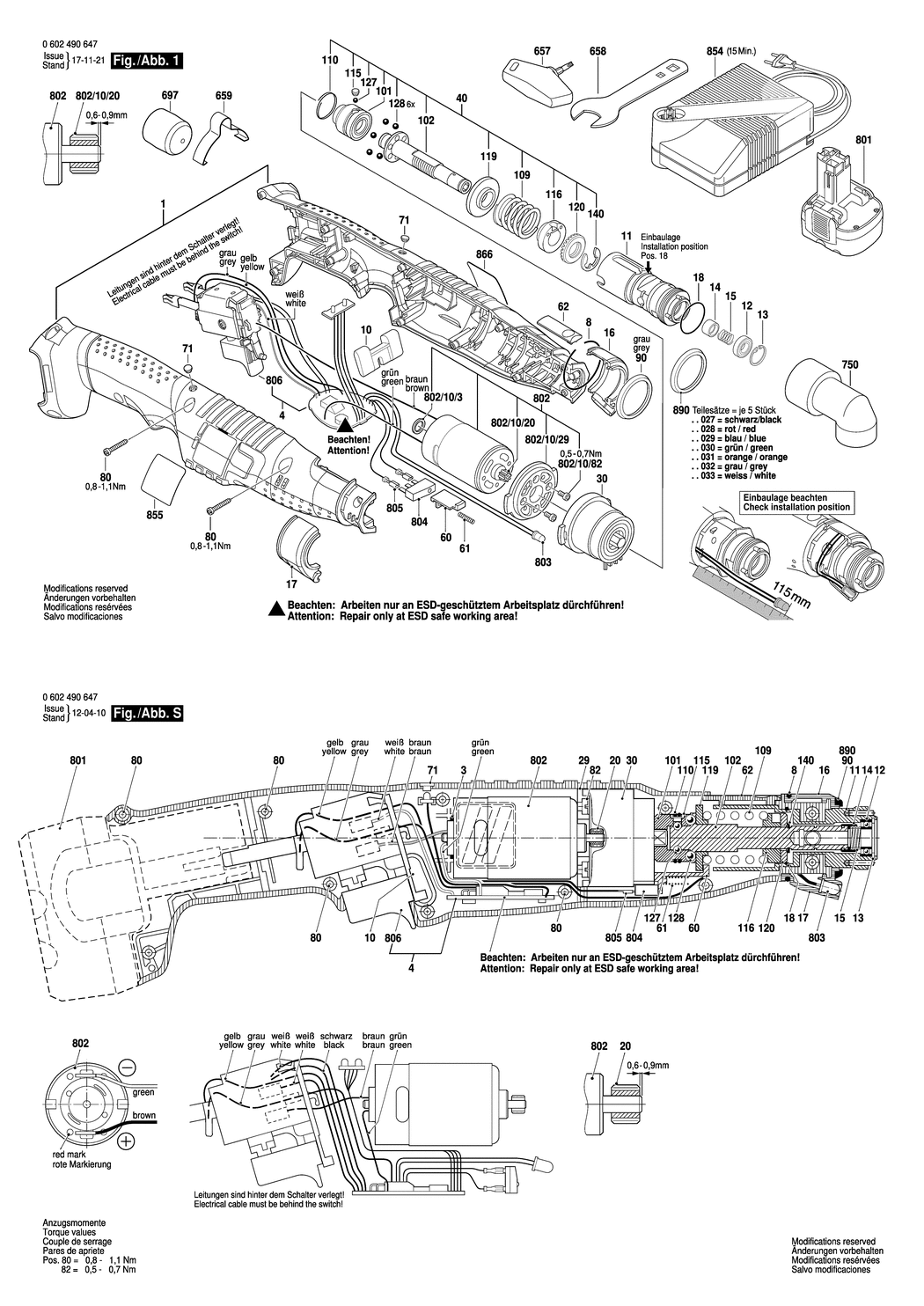

1 - HOUSING SECTION
BSD-3605105017.A12
3605105017
|
£72.18
|
£86.62
|
|
|
4 - ELECTRONIC ASSEMBLY
BSD-3607200108.A3
3607200108
|
£392.92
|
£471.50
|
|
|
8 - RETAINING RING dia36.6xdia1.5
BSD-1614601016.A40
1614601016
|
£2.80
|
£3.36
|
|
|
10 - SWITCH SLIDE
BSD-3601099003.A71
3601099003
|
£2.80
|
£3.36
|
|
|
11 - ANGLE FLANGE
BSD-3605700165.A27
3605700165
|
£57.05
|
£68.46
|
|
|
12 - GROOVE BALL BEARING
BSD-1280905004.A65
1280905004
|
£31.64
|
£37.97
|
|
|
13 - SPRING RETAINING RING 16x1 MM. DIN 472
BSD-2916660003.A5
2916660003
|
£1.66
|
£1.99
|
|
|
14 - SLEEVE
BSD-3600423004.A13
3600423004
|
£5.58
|
£6.70
|
|
|
15 - COMPRESSION SPRING
BSD-3604611037.A9
3604611037
|
£5.30
|
£6.36
|
|
|
16 - LED-HOLDER
BSD-3605105019.A3
3605105019
|
£11.30
|
£13.56
|
|
|
17 - LED-HOLDER
BSD-3605105020.A40
3605105020
|
£11.30
|
£13.56
|
|
|
18 - O-RING 20.0x1.0 MM
BSD-3600210012.A18
3600210012
|
£2.80
|
£3.36
|
|
|
30 - PLANETARY GEAR TRAIN
BSD-3607030490.A15
3607030490
|
£46.37
|
£55.64
|
|
|
40 - ASSEMBLY KIT
BSD-3607031576.A1
3607031576
|
£186.77
|
£224.12
|
|
|
60 - SWITCHING ELEMENT
BSD-3601923022.A15
3601923022
|
£5.30
|
£6.36
|
|
|
61 - COMPRESSION SPRING
BSD-3604611022.A65
3604611022
|
£3.72
|
£4.47
|
|
|
62 - PUSHER
BSD-3601923029.A15
3601923029
|
£5.30
|
£6.36
|
|
|
71 - LIGHT CONDUCTOR
BSD-3604460132.A80
3604460132
|
£2.80
|
£3.36
|
|
|
80 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A814
2603490018
|
£1.66
|
£1.99
|
|
|
90 - RING
BSD-3600106025.A6
3600106025
|
£3.72
|
£4.47
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A780
3601119236
|
£3.72
|
£4.47
|
|
|
101 - CLUTCH ELEMENT
BSD-3606445043.A165
3606445043
|
£98.11
|
£117.73
|
|
|
102 - OUTPUT SHAFT
BSD-3603124023.A77
3603124023
|
£68.42
|
£82.10
|
|
|
109 - COMPRESSION SPRING
BSD-3604618003.A69
3604618003
|
£7.36
|
£8.83
|
|
|
110 - RETAINING RING
BSD-3600224053.A17
3600224053
|
£1.66
|
£1.99
|
|
|
115 - SEALING PLATE
BSD-3601023011.A103
3601023011
|
£2.33
|
£2.80
|
|
|
116 - SETTING RING
BSD-3600134014.A104
3600134014
|
£31.64
|
£37.97
|
|
|
119 - SUPPORT DISC
BSD-3600190029.A2
3600190029
|
£21.52
|
£25.83
|
|
|
120 - CATCH DISK
BSD-3603344047.A17
3603344047
|
£23.86
|
£28.63
|
|
|
127 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A244
1903230006
|
£1.95
|
£2.34
|
|
|
128 - BALL 4.5 MM III DIN 5401-ST
BSD-1903230008.A75
1903230008
|
£1.66
|
£1.99
|
|
|
140 - LOCKING WASHER DIN 6799-9-FSt
BSD-2916080012.A81
2916080012
|
£1.66
|
£1.99
|
|
|
657 - SCREWDRIVER
BSD-3607950027.A153
3607950027
|
£14.91
|
£17.89
|
|
|
658 - SINGLE-HEAD ENG. WRENCH
BSD-3601376007.A44
3601376007
|
£10.10
|
£12.12
|
|
|
659 - SUSPENSION LOOP
BSD-3601923024.A120
3601923024
|
£11.30
|
£13.56
|
|
|
697 - PROTECTIVE CAP 25.4x25.4 MM
BSD-3608872557.A18
3608872557
|
£2.80
|
£3.36
|
|
|
750 - PROTECTIVE CAP
BSD-3605500171.A21
3605500171
|
£13.12
|
£15.75
|
|
|
801 - SLIDE-IN ACCU PACKAGE 9.6V.2.6Ah.NiMh
BSD-2607335681.A4
2607335681
|
£116.15
|
£139.38
|
|
|
802 - DC MOTOR
BSD-3607031731.A4
3607031731
|
£52.15
|
£62.58
|
|
|
802/10/3 - LOCATING RING
BSD-3600200043.A20
3600200043
|
£5.30
|
£6.36
|
|
|
802/10/20 - PINION
BSD-3606328018.A33
3606328018
|
£4.26
|
£5.11
|
|
|
802/10/29 - INTERMEDIATE FLANGE
BSD-2605719011.A14
2605719011
|
£3.72
|
£4.47
|
|
|
802/10/82 - TORX SH CAP SCREW M3x5-8.8-Z
BSD-2603414048.A18
2603414048
|
£1.66
|
£1.99
|
|
|
803 - LIGHT-EMITTING-DIODE
BSD-3609202979.A6
3609202979
|
£23.86
|
£28.63
|
|
|
804 - MICROSWITCH
BSD-3609202762.A47
3609202762
|
£27.23
|
£32.68
|
|
|
805 - PLUG SET
BSD-3609202766.A44
3609202766
|
£6.52
|
£7.83
|
|
|
806 - SWITCH
BSD-3607200083.A27
3607200083
|
£57.05
|
£68.46
|
|
|
854 - FAST CHARGER EU 230/7.2-24V. 30 MIN.
BSD-2607225027.A152
2607225027
|
£114.88
|
£137.86
|
|
|
854 - FAST CHARGER GB 230/7.2-24V. 30 MIN.
BSD-2607225029.A20
2607225029
|
£88.07
|
£105.68
|
|
|
854 - FAST CHARGER AUS 240/7.2-24V. 30 MIN.
BSD-2607225031.A127
2607225031
|
£98.11
|
£117.73
|
|
|
854 - FAST CHARGER USA 120/7.2-24V. 30 MIN.
BSD-2607225033.A19
2607225033
|
-
|
|
|
|
854 - FAST CHARGER SAM 115/7.2-24V. 15 MIN.
BSD-2607225035.A109
2607225035
|
-
|
|
|
|
854 - FAST CHARGER J 100/7.2-24V. 1h
BSD-2607224435.A94
2607224435
|
£114.88
|
£137.86
|
|
|
854 - FAST CHARGER ROK 220/7.2-24V. 30 MIN.
BSD-2607225039.A20
2607225039
|
£80.61
|
£96.73
|
|
|
855 - NAMEPLATE
BSD-16070312AC.A0
16070312AC
|
£4.26
|
£5.11
|
|
|
866 - MANUFACTURER'S NAMEPLATE
BSD-3601119296.A0
3601119296
|
-
|
|
|
|
890 - PARTS SET
BSD-3600106027.A48
3600106027
|
£21.68
|
£26.01
|
|
|
890 - PARTS SET
BSD-3600106028.A20
3600106028
|
£21.52
|
£25.83
|
|
|
890 - PARTS SET
BSD-3600106029.A48
3600106029
|
£21.68
|
£26.01
|
|
|
890 - PARTS SET
BSD-3600106030.A20
3600106030
|
£21.68
|
£26.01
|
|
|
890 - PARTS SET
BSD-3600106031.A48
3600106031
|
£23.86
|
£28.63
|
|
|
890 - PARTS SET
BSD-3600106032.A20
3600106032
|
£21.68
|
£26.01
|
|
|
890 - PARTS SET
BSD-3600106033.A48
3600106033
|
£21.52
|
£25.83
|
|
