Bosch 48-PRO VARIO AC / 3600J11201 / EU 230 Volt Spare Parts

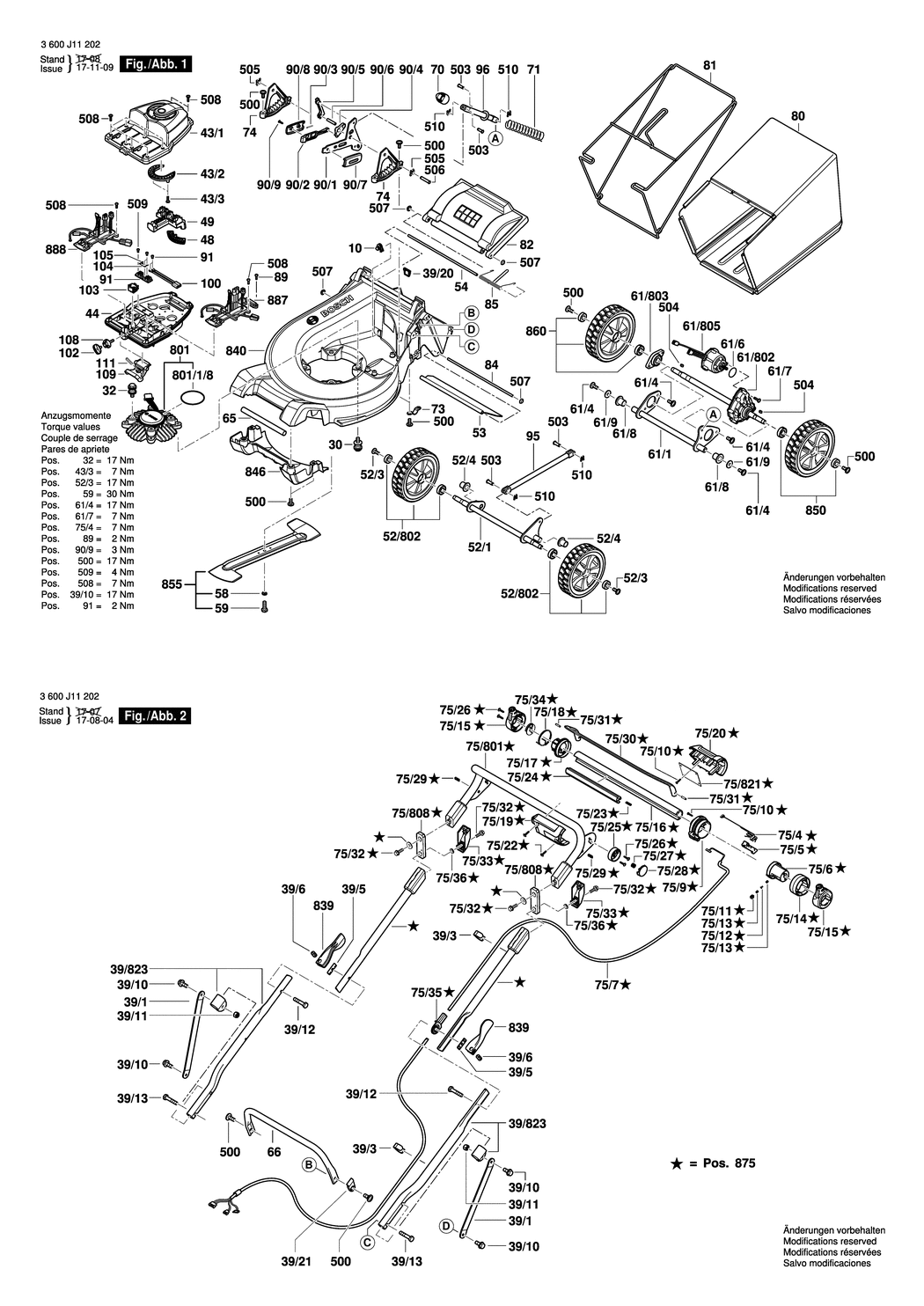

An exploded drawing and listing for the Bosch 48-PRO VARIO AC / 3600J11201 / EU 230 Volt

	Ex VAT	Inc VAT
10 - GROMMET BSD-F016L76343.A2 F016L76343	£1.95	£2.34
30 - DAMPING BUSHING BSD-F016L76018.A5 F016L76018	£1.75	£2.10
32 - BOLT M10x20 BSD-F016L76017.A8 F016L76017	£2.61	£3.13
39/1 - ANGLE SUPPORT BSD-F016L76263.A1 F016L76263	£16.74	£20.09
39/3 - CABLE CLIP BSD-F016L76160.A3 F016L76160	£2.61	£3.13
39/5 - INSERT BSD-F016L76189.A6 F016L76189	£24.45	£29.34
39/6 - PIVOT BSD-F016L76159.A5 F016L76159	£3.34	£4.01
39/10 - HEX SCREW BSD-F016L76294.A2 F016L76294	£1.75	£2.10
39/11 - LOCK NUT BSD-F016L76293.A6 F016L76293	£1.75	£2.10
39/12 - BOLT BSD-F016L76158.A3 F016L76158	£1.75	£2.10
39/13 - BOLT BSD-F016L76990.A5 F016L76990	£5.30	£6.36
39/20 - CLAMP BSD-F016L76344.A8 F016L76344	£1.75	£2.10
39/21 - CABLE GUIDE BSD-F016L76345.A0 F016L76345	£1.75	£2.10
39/823 - HANDLE BSD-F016105042.A1 F016105042	£54.42	£65.30
43/1 - MOTOR COVER BSD-F016L77579.A3 F016L77579	£27.23	£32.68
43/2 - AXIAL FLOW FAN BSD-F016L76273.A0 F016L76273	£21.52	£25.83
43/3 - SCREW M5x20 BSD-F016L76058.A5 F016L76058	£1.75	£2.10
44 - HOUSING BASE BSD-F016L76274.A8 F016L76274	£68.42	£82.10
48 - SEALING RUBBER BSD-F016L76186.A3 F016L76186	£2.80	£3.36
49 - CABLE BRACKET BSD-F016L76291.A0 F016L76291	£4.26	£5.11
52/1 - AXLE BSD-F016L76280.A0 F016L76280	£72.18	£86.62
52/3 - SCREW M8x20 BSD-F016L76173.A9 F016L76173	£1.75	£2.10
52/4 - BUSHING BSD-F016L76044.A14 F016L76044	£1.75	£2.10
52/802 - WHEEL BSD-F016104466.A6 F016104466	£63.50	£76.20
53 - FLAP BSD-F016L76089.A7 F016L76089	£16.74	£20.09
54 - INFEED SPINDLE BSD-F016L76090.A1 F016L76090	£2.80	£3.36
58 - SPRING WASHER 1/2 BSD-F016L66173.A64 F016L66173	£1.75	£2.10
59 - BOLT M10x30 BSD-F016L66141.A38 F016L66141	£2.61	£3.13
61/1 - AXLE BSD-F016L76281.A8 F016L76281	£68.42	£82.10
61/4 - SCREW M8x20 BSD-F016L76173.A10 F016L76173	£1.75	£2.10
61/6 - O-RING BSD-F016L76082.A7 F016L76082	£1.75	£2.10
61/7 - SCREW M5x20 BSD-F016L76058.A6 F016L76058	£1.75	£2.10
61/8 - BUSHING BSD-F016L76044.A15 F016L76044	£1.75	£2.10
61/9 - WASHER BSD-F016L76332.A1 F016L76332	£1.75	£2.10
61/802 - DRIVE UNIT BSD-F016104472.A1 F016104472	£179.37	£215.24
61/803 - BEARING HOUSING BSD-F016104560.A1 F016104560	£21.52	£25.83
61/805 - DC MOTOR BSD-F016104473.A7 F016104473	£243.45	£292.14
65 - CARRYING HANDLE BSD-F016L76279.A8 F016L76279	£11.30	£13.56
66 - HANDLE BSD-F016L76265.A7 F016L76265	£40.80	£48.96
70 - SLEEVE BSD-F016L76178.A5 F016L76178	£1.95	£2.34
71 - SPRING BSD-F016L76087.A7 F016L76087	£4.26	£5.11
73 - CLAMPING PIECE BSD-F016L76088.A1 F016L76088	£1.75	£2.10
74 - BASE-INSERT BSD-F016L76272.A7 F016L76272	£54.42	£65.30
75/4 - WIRING HARNESS BSD-F016L77394.A0 F016L77394	£48.38	£58.06
75/5 - SWITCH HOLDER BSD-F016L77851.A2 F016L77851	£1.75	£2.10
75/6 - SWITCH HOLDER BSD-F016L77850.A0 F016L77850	£5.30	£6.36
75/7 - WIRING HARNESS BSD-F016L77844.A2 F016L77844	£23.86	£28.63
75/9 - POTENTIOMETER HOUSING BSD-F016L76126.A1 F016L76126	£5.30	£6.36
75/10 - SCREW M4x20 PLASTIC BSD-F016L67706.A46 F016L67706	£1.75	£2.10
75/11 - HOUSING BSD-F016L76122.A1 F016L76122	£1.75	£2.10
75/12 - SWITCH ACTUATOR BSD-F016L76121.A1 F016L76121	£1.75	£2.10
75/13 - SPRING BSD-F016L76125.A1 F016L76125	£1.75	£2.10
75/14 - PIVOT BSD-F016L77852.A0 F016L77852	£5.30	£6.36
75/15 - PIVOT BSD-F016L76141.A1 F016L76141	£3.80	£4.56
75/16 - THROTTLE CARRIER BSD-F016L76114.A6 F016L76114	£24.45	£29.34
75/17 - BUSHING BSD-F016L76132.A6 F016L76132	£4.26	£5.11
75/18 - SPRING BSD-F016L76138.A7 F016L76138	£6.52	£7.83
75/19 - CASING BSD-F016L77853.A2 F016L77853	£2.16	£2.59
75/20 - CASING BSD-F016L77705.A0 F016L77705	£2.80	£3.36
75/22 - SCREW M5x20 BSD-F016L76187.A9 F016L76187	£1.75	£2.10
75/23 - SPRING BSD-F016L76130.A5 F016L76130	£1.75	£2.10
75/24 - BLANK COVER BSD-F016L77381.A0 F016L77381	£8.67	£10.41
75/25 - KNOB SLEEVE BSD-F016L76143.A7 F016L76143	£1.95	£2.34
75/26 - SCREW M5x20 BSD-F016L76058.A7 F016L76058	£1.75	£2.10
75/27 - SPRING BSD-F016L76144.A1 F016L76144	£1.75	£2.10
75/28 - SWITCH BUTTON BSD-F016L76145.A7 F016L76145	£11.30	£13.56
75/29 - CABLE CLIP BSD-F016L77855.A0 F016L77855	£1.75	£2.10
75/30 - CONTROL BAR BSD-F016L76267.A1 F016L76267	£36.62	£43.95
75/31 - COILED SPRING PIN BSD-F016L76481.A0 F016L76481	£1.95	£2.34
75/32 - BOLT BSD-F016L77382.A2 F016L77382	£1.75	£2.10
75/33 - COVER BSD-F016L77856.A2 F016L77856	£1.75	£2.10
75/34 - CABLE COVER BSD-F016L77871.A2 F016L77871	£2.16	£2.59
75/35 - CABLE SLEEVE BSD-F016L76346.A1 F016L76346	£1.75	£2.10
75/36 - WASHER BSD-F016L77865.A0 F016L77865	£2.80	£3.36
75/801 - HANDLE TOP ASSEMBLY BSD-F016105058.A0 F016105058	£68.42	£82.10
75/808 - CABLE CLIP BSD-F016104959.A1 F016104959	£134.16	£160.99
75/821 - ELECTRONICS MODULE BSD-F016104960.A1 F016104960	£93.88	£112.65
80 - COLLECTION BOX BSD-F016L77585.A1 F016L77585	£54.42	£65.30
81 - FRAME PROFILE BSD-F016L76151.A3 F016L76151	£36.62	£43.95
82 - FLAP GUARD BSD-F016L77582.A3 F016L77582	£21.52	£25.83
84 - INFEED SPINDLE BSD-F016L76106.A6 F016L76106	£2.33	£2.80
85 - SPRING BSD-F016L76107.A2 F016L76107	£2.80	£3.36
89 - SCREW M3x10 BSD-F016L76402.A3 F016L76402	£1.75	£2.10
90/1 - ADJUSTING LEVER BSD-F016L76271.A1 F016L76271	£23.86	£28.63
90/2 - BUTTON BSD-F016L76094.A1 F016L76094	£1.95	£2.34
90/3 - SPRING BSD-F016L76095.A7 F016L76095	£3.72	£4.47
90/4 - LINKAGE BSD-F016L76096.A1 F016L76096	£2.61	£3.13
90/5 - SLIDER BSD-F016L76097.A7 F016L76097	£2.61	£3.13
90/6 - LOCKING PIN BSD-F016L76098.A1 F016L76098	£3.72	£4.47
90/7 - PALM GRIP BSD-F016L76102.A5 F016L76102	£5.30	£6.36
90/8 - PALM GRIP BSD-F016L76190.A2 F016L76190	£5.30	£6.36
90/9 - SCREW M5x20 BSD-F016L76187.A8 F016L76187	£1.75	£2.10
91 - DIODE MODULE BSD-F016L76166.A5 F016L76166	£33.45	£40.14
95 - LINKAGE BSD-F016L76270.A4 F016L76270	£31.64	£37.97
96 - LINKAGE BSD-F016L76277.A0 F016L76277	£31.64	£37.97
100 - CONNECTING CABLE BSD-F016L76086.A1 F016L76086	£7.36	£8.83
102 - SWITCH KEY BSD-F016L76146.A1 F016L76146	£3.80	£4.56
103 - SWITCH BSD-F016L66928.A1 F016L66928	£8.49	£10.19
104 - COUPLING PLATE BSD-F016L76185.A6 F016L76185	£1.95	£2.34
105 - COUPLING PLATE BSD-F016L76473.A1 F016L76473	£1.95	£2.34
108 - CAM BSD-F016L76180.A2 F016L76180	£1.95	£2.34
109 - TRIGGER BSD-F016L76027.A7 F016L76027	£2.61	£3.13
111 - SPRING BSD-F016L76028.A1 F016L76028	£1.75	£2.10
500 - SCREW M8x20 BSD-F016L76173.A8 F016L76173	£1.75	£2.10
503 - CLEVIS BSD-F016L76100.A1 F016L76100	£8.49	£10.19
504 - KEY BSD-F016L76091.A7 F016L76091	£2.61	£3.13
505 - CLEVIS BSD-F016L76099.A8 F016L76099	£18.96	£22.75
506 - CLEVIS BSD-F016L76099.A9 F016L76099	£18.96	£22.75
507 - SECURING CAP dia8 MM BSD-F016T48990.A30 F016T48990	£1.75	£2.10
508 - SCREW M5x20 BSD-F016L76058.A8 F016L76058	£1.75	£2.10
509 - SCREW BSD-F016L76188.A2 F016L76188	£1.75	£2.10
510 - RETAINING CLIP BSD-F016L68664.A1 F016L68664	£1.95	£2.34
801 - DC MOTOR 36V BSD-F016104471.A7 F016104471	£357.27	£428.72
801/1/8 - O-RING BSD-F016L76214.A7 F016L76214	£1.75	£2.10
839 - ADJUSTING CAM BSD-F016105059.A4 F016105059	£18.96	£22.75
840 - CHASSIS 48 cm BSD-F016105057.A1 F016105057	£458.51	£550.21
846 - CLOSING PLATE BSD-F016105060.A0 F016105060	£54.42	£65.30
850 - WHEEL BSD-F016104467.A1 F016104467	£72.18	£86.62
855 - CUTTER BLADE 45 cm BSD-F016105117.A0 F016105117	£63.50	£76.20
860 - WHEEL BSD-F016104468.A7 F016104468	£72.18	£86.62
875 - HANDLE TOP ASSEMBLY BSD-F016105118.A0 F016105118	£522.92	£627.51
887 - DRIVE ELECTRONICS BSD-F016105120.A2 F016105120	£283.50	£340.20
888 - DRIVE ELECTRONICS BSD-F016105121.A0 F016105121	£218.41	£262.09
