Bosch GSS 9.6 V / 0601924042 / GB 9.6 Volt Spare Parts

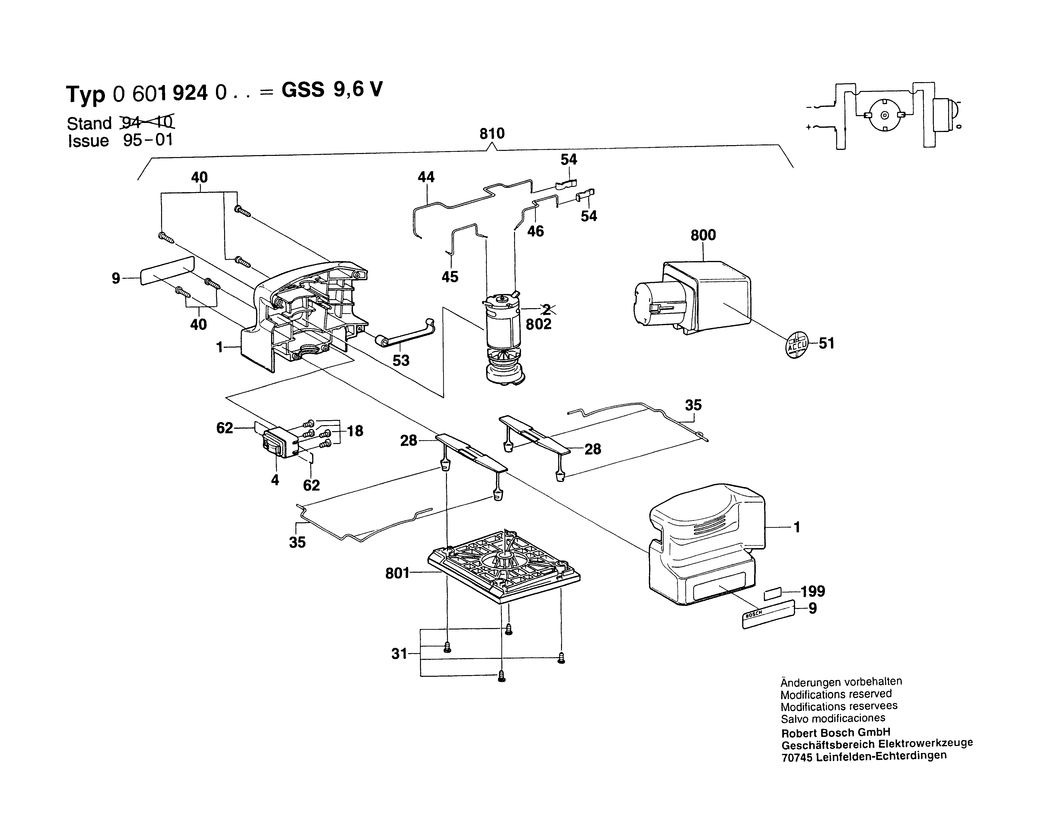

An exploded drawing and listing for the Bosch GSS 9.6 V / 0601924042 / GB 9.6 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104238.A4 2605104238	-
4 - SWITCH BSD-2607200199.A19 2607200199	-
9 - STICKER BSD-2601110509.A2 2601110509	-
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2314 2603410001	£1.75	£2.10
28 - SUPPORT BSD-2608005019.A3 2608005019	-
31 - TAPPING SCREW DIN 7981-B 3.9x9.5 BSD-2910611017.A30 2910611017	-
35 - CLAMPING SADDLE BSD-2608045004.A4 2608045004	-
40 - SCREW 4x16 BSD-2603490022.A2441 2603490022	£1.75	£2.10
44 - CABLE BSD-2604413006.A4 2604413006	-
45 - CABLE BSD-2604413007.A3 2604413007	-
46 - CABLE BSD-2604413008.A4 2604413008	-
51 - STICKER BSD-2601110461.A32 2601110461	-
53 - HOLDING SPRING dia8.7 MM BSD-2601251003.A119 2601251003	-
54 - CONTACT SPRING BSD-2601324013.A2 2601324013	-
62 - PLUG-IN STRAP BSD-2604425006.A2 2604425006	-
199 - STICKER BSD-1601110265.A314 1601110265	-
700 - SET OF SANDING PAPERS KORN 60 BSD-2607018062.A2 2607018062	-
700 - SET OF SANDING PAPERS KORN 80 BSD-2607018063.A5 2607018063	-
700 - SET OF SANDING PAPERS KORN 120 BSD-2607018064.A2 2607018064	-
700 - SET OF SANDING PAPERS KORN 180 BSD-2607018065.A5 2607018065	-
700 - SET OF SANDING PAPERS KORN 240 BSD-2607018066.A2 2607018066	-
750 - FAST CHARGER GB 230/7.2-24V. 1h BSD-2607224427.A179 2607224427	£103.14	£123.77
800 - SLIDE-IN ACCU PACKAGE 9.6V.1.4Ah. NiCd BSD-2607335203.A2 2607335203	-
801 - BASE PLATE BSD-2608000901.A7 2608000901	-
802 - DC MOTOR 9.6V BSD-2607022900.A2 2607022900	-
810 - ORBITAL SANDER BSD-0601924027.A2 0601924027	-

Attribute Name	Value
Brand	Bosch
