Bosch GDS 18V-200 C / 3601JG4300 / EU 18 Volt Spare Parts

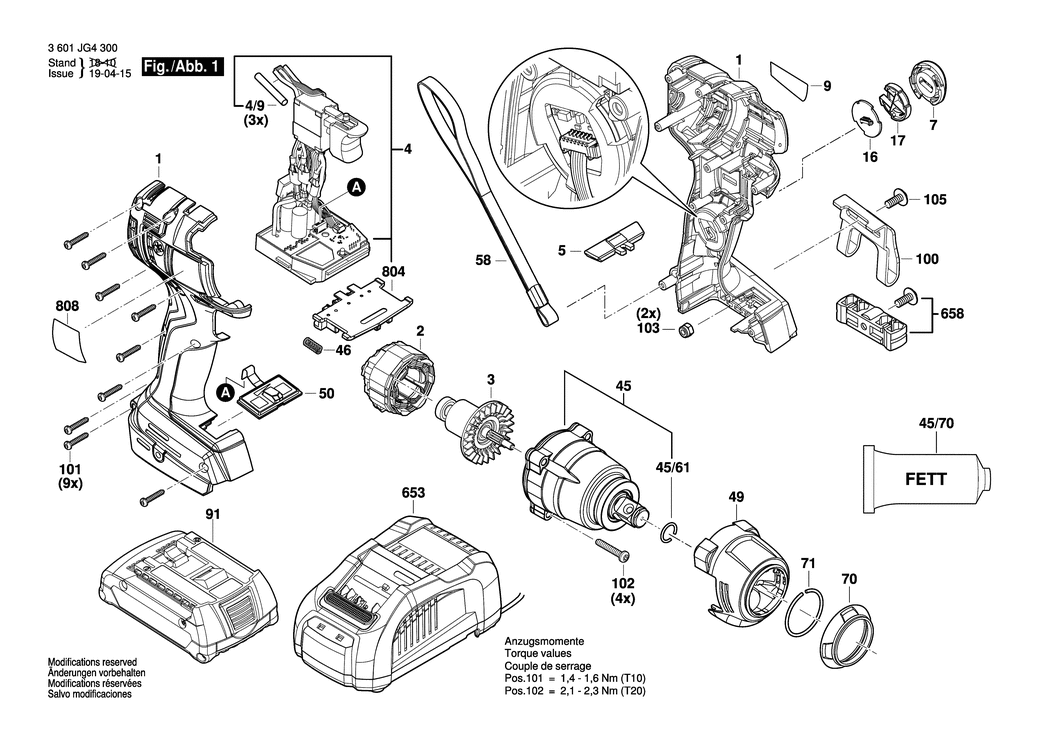

An exploded drawing and listing for the Bosch GDS 18V-200 C / 3601JG4300 / EU 18 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-16058065CZ.A2 16058065CZ	£18.96	£22.75
2 - STATOR BSD-1619P14412.A0 1619P14412	£33.74	£40.49
3 - ROTOR BSD-1619P14405.A2 1619P14405	£31.64	£37.97
4 - ELECTRONICS MODULE BSD-16072335EV.A0 16072335EV	£102.57	£123.08
4/9 - SHRINKABLE TUBE BSD-160071203S.A2 160071203S	-
5 - CHANGEOVER LEVER BSD-1600A011KN.A0 1600A011KN	£2.49	£2.99
7 - COVER UNIT BSD-1600A00RU8.A3 1600A00RU8	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-160111C2WG.A0 160111C2WG	-
16 - PRINTED-BOARD ASSEMBLY BSD-1607503333.A9 1607503333	£12.04	£14.45
17 - COVER PANEL BSD-1600A00M53.A11 1600A00M53	£1.75	£2.10
45 - GEAR BOX BSD-1600A01C6F.A0 1600A01C6F	-
45/61 - RETAINING RING BSD-0618800045.A1 0618800045	£2.08	£2.50
45/70 - GREASE TUBE 45 ml BSD-1600A002NE.A4 1600A002NE	£27.23	£32.68
46 - COMPRESSION SPRING BSD-1609280477.A169 1609280477	£1.75	£2.10
49 - COVER BSD-1600A00J37.A2 1600A00J37	£7.36	£8.83
50 - KEYBOARD BSD-1600A013BB.A2 1600A013BB	£11.30	£13.56
58 - STRAP BSD-1600A01902.A2 1600A01902	£2.61	£3.13
70 - PROTECTIVE CAP BSD-1600A011DL.A2 1600A011DL	£1.75	£2.10
71 - RETAINING RING BSD-1604601037.A2 1604601037	£1.75	£2.10
91 - BATTERY PACK GBA 18V 4.0Ah ProCore SCM BSD-1607A350AN.A0 1607A350AN	£120.11	£144.13
91 - BATTERY PACK BBS MR. 18V. 5.0 Ah 48 S BSD-2607337069.A22 2607337069	£116.15	£139.38
100 - CLIP BSD-2609111584.A5 2609111584	£3.72	£4.47
101 - TORX FLAT-HEAD SCREW 3x16 BSD-2609110201.A39 2609110201	£2.16	£2.59
102 - TORX FLAT-HEAD SCREW BSD-061880004W.A2 061880004W	£1.75	£2.10
103 - NUT BSD-2609110835.A18 2609110835	£1.75	£2.10
105 - SCREW BSD-2609110834.A74 2609110834	£1.75	£2.10
653 - CHARGER GB GAL 1880 CV 230/14.4-18V BSD-2607225923.A1 2607225923	£120.11	£144.13
653 - CHARGER EU GAL 1880 CV 230/14.4-18V BSD-2607225921.A32 2607225921	£134.16	£160.99
658 - BIT HOLDER BSD-2609199748.A26 2609199748	£2.16	£2.59
804 - CONTACT RETAINER 18V BSD-1609280820.A14 1609280820	£5.58	£6.70
808 - NAMEPLATE BSD-160111A6LZ.A0 160111A6LZ	-

Attribute Name	Value
Brand	Bosch
