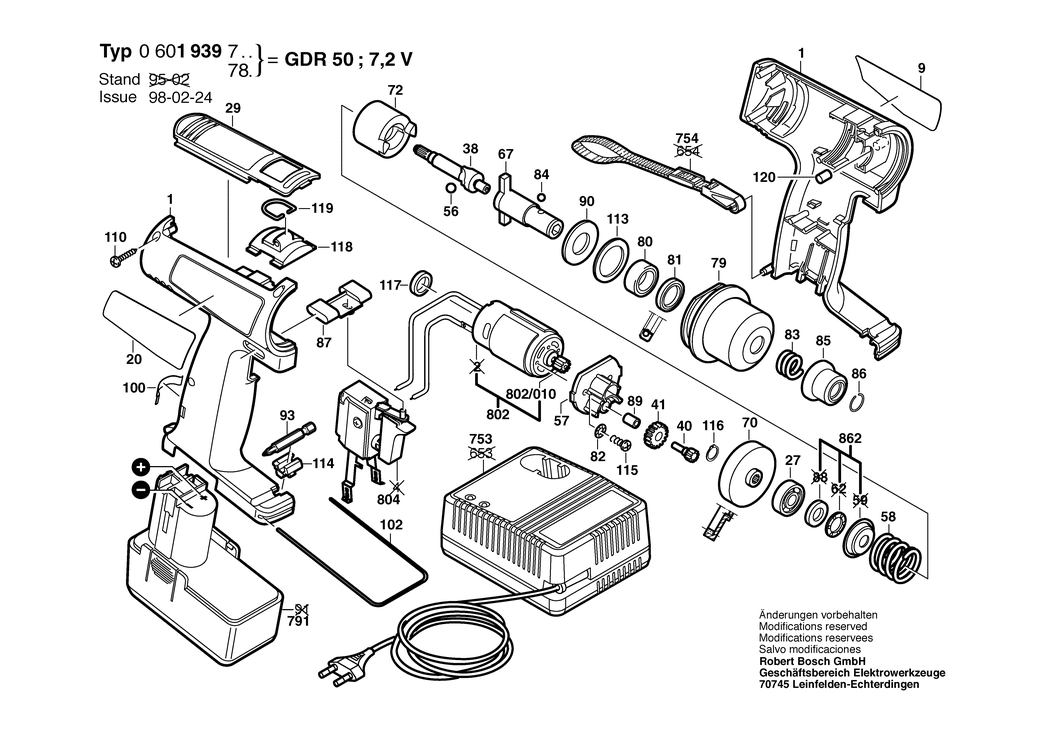

1 - HOUSING SECTION
BSD-2605104473.A5
2605104473
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118640.A3
2601118640
|
-
|
|
|
|
20 - REFERENCE PLATE
BSD-2601118641.A5
2601118641
|
-
|
|
|
|
27 - GROOVE BALL BEARING 7x22x7
BSD-1900900224.A13
1900900224
|
£6.52
|
£7.83
|
|
|
29 - INSERT PIECE
BSD-2605510143.A9
2605510143
|
£2.33
|
£2.80
|
|
|
38 - JACK SHAFT
BSD-2603000016.A21
2603000016
|
-
|
|
|
|
40 - TOOTHED SHAFT Z= 10
BSD-2606309045.A19
2606309045
|
£11.37
|
£13.64
|
|
|
41 - CYLINDRICAL GEAR Z=23
BSD-2606319086.A9
2606319086
|
£3.51
|
£4.21
|
|
|
56 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A649
1903230010
|
£1.84
|
£2.21
|
|
|
57 - INTERMEDIATE FLANGE
BSD-2605700236.A3
2605700236
|
-
|
|
|
|
58 - COMPRESSION SPRING
BSD-2604610036.A5
2604610036
|
-
|
|
|
|
67 - COUPLING HALF
BSD-2606445010.A9
2606445010
|
-
|
|
|
|
70 - RING GEAR Z=46
BSD-2606319085.A10
2606319085
|
-
|
|
|
|
72 - STRIKER
BSD-2600322052.A8
2600322052
|
-
|
|
|
|
79 - GEAR HOUSING
BSD-2605806412.A13
2605806412
|
-
|
|
|
|
80 - PLAIN BEARING
BSD-2605801018.A13
2605801018
|
£1.32
|
£1.58
|
|
|
81 - RADIAL SEAL
BSD-2601015062.A10
2601015062
|
£2.33
|
£2.80
|
|
|
82 - SERRATED LOCK-WASHER DIN 6798-A3.2-FST
BSD-2916070005.A5
2916070005
|
£1.84
|
£2.21
|
|
|
83 - COMPRESSION SPRING
BSD-2604619016.A13
2604619016
|
-
|
|
|
|
84 - BALL DIN 5401-3.5-II
BSD-1903230406.A11
1903230406
|
£1.75
|
£2.10
|
|
|
85 - TAPER SLEEVE
BSD-2600400032.A10
2600400032
|
£2.80
|
£3.36
|
|
|
86 - RETAINING RING 12 DIN 9045
BSD-2916600007.A140
2916600007
|
£2.80
|
£3.36
|
|
|
87 - ADJUSTING SLIDE
BSD-2601099055.A15
2601099055
|
-
|
|
|
|
89 - PLAIN BEARING
BSD-2605801019.A10
2605801019
|
£2.45
|
£2.94
|
|
|
90 - PLAIN WASHER
BSD-2600100638.A11
2600100638
|
-
|
|
|
|
93 - SCREWDRIVER BLADE
BSD-2607000442.A1
2607000442
|
-
|
|
|
|
100 - CLAMP SPRING
BSD-2601322016.A85
2601322016
|
£2.52
|
£3.02
|
|
|
102 - RETAINING BRACKET
BSD-2601329041.A352
2601329041
|
£2.33
|
£2.80
|
|
|
110 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A74
2603490018
|
£1.75
|
£2.10
|
|
|
113 - RUBBER RING
BSD-2600100098.A15
2600100098
|
-
|
|
|
|
114 - SUPPORT
BSD-2608040131.A209
2608040131
|
£1.95
|
£2.34
|
|
|
115 - OVAL-HEAD SCREW DIN 7895-M3x8-4.8-Z
BSD-2912301050.A6
2912301050
|
-
|
|
|
|
116 - SPRING RETAINING RING DIN 471-6x0.7-FSt
BSD-2916640003.A6
2916640003
|
-
|
|
|
|
117 - INSERTED PART dia 10.2 MM
BSD-2608040092.A2
2608040092
|
-
|
|
|
|
118 - HOLDING FIXTURE
BSD-2605510146.A13
2605510146
|
-
|
|
|
|
119 - SUSPENSION LOOP
BSD-2601310009.A15
2601310009
|
-
|
|
|
|
120 - DAMPING RUBBER
BSD-2603100056.A174
2603100056
|
£1.84
|
£2.21
|
|
|
753 - FAST CHARGER GB 230/7.2-14.4V. 30 MIN.
BSD-2607224703.A167
2607224703
|
£121.96
|
£146.35
|
|
|
754 - CARRYING LOOP
BSD-2601398009.A248
2601398009
|
-
|
|
|
|
791 - SLIDE-IN ACCU PACKAGE 7.2V.1.5Ah.NiCd
BSD-2607336141.A31
2607336141
|
-
|
|
|
|
795 - KEYLESS CHUCK dia 1-10 MM
BSD-2608572075.A16
2608572075
|
£23.62
|
£28.34
|
|
|
802 - DC MOTOR 7.2V
BSD-2607022933.A9
2607022933
|
-
|
|
|
|
802/010 - PINION Z=13
BSD-2606316145.A8
2606316145
|
-
|
|
|
|
804 - ON-OFF SWITCH
BSD-2607200351.A4
2607200351
|
-
|
|
|
|
862 - BALL CAGE
BSD-2600923006.A16
2600923006
|
-
|
|
|
|
899 - CORDLESS PERCUS SCREWDRIV
BSD-0601939723.A5
0601939723
|
-
|
|
|
