Bosch GDR 1440-LI / 3601JB3400 / EU 14.4 Volt Spare Parts

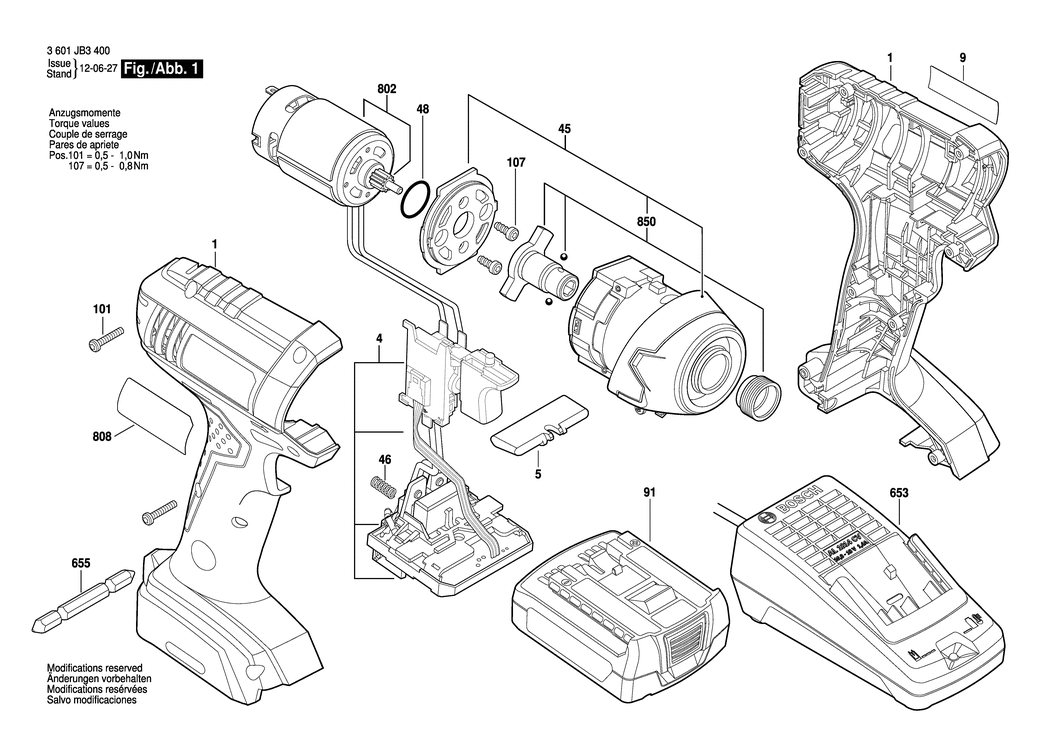

An exploded drawing and listing for the Bosch GDR 1440-LI / 3601JB3400 / EU 14.4 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609101006.A1 2609101006	£18.96	£22.75
4 - ELECTRONICS MODULE BSD-2609199610.A0 2609199610	-
5 - BUTTON BSD-2609100698.A28 2609100698	£2.80	£3.36
9 - MANUFACTURER'S NAMEPLATE GDR 1440 LI BSD-2609133184.A1 2609133184	-
45 - GEAR BOX BSD-2609199400.A1 2609199400	£68.42	£82.10
46 - COMPRESSION SPRING BSD-1609280477.A153 1609280477	£1.75	£2.10
48 - SEAL RING BSD-2609170168.A2 2609170168	£1.75	£2.10
91 - SLIDE-IN ACCU PACKAGE BSD-2607336739.A3 2607336739	£103.14	£123.77
91 - SLIDE-IN ACCU PACKAGE 14.4V 1.3Ah. Li. Alpha 18720mWh BSD-2607336607.A0 2607336607	£103.14	£123.77
101 - TORX FLAT-HEAD SCREW 3x16 BSD-2609110201.A115 2609110201	£2.16	£2.59
107 - SCREW BSD-2609110560.A2 2609110560	£1.75	£2.10
653 - BATTERY CHARGER EU 230/10.8-18V. 30 MIN BSD-2607225727.A8 2607225727	£51.22	£61.47
653 - BATTERY CHARGER GB 240/10.8-18V. 30 MIN BSD-2607225729.A0 2607225729	£51.22	£61.47
655 - SCREWDRIVER BLADE BSD-2609110343.A16 2609110343	£2.61	£3.13
802 - DC MOTOR 14.4V BSD-2609199419.A1 2609199419	£48.38	£58.06
808 - NAMEPLATE BSD-2609133171.A0 2609133171	£2.61	£3.13
850 - COUPLING HALF BSD-2609199320.A2 2609199320	£14.72	£17.67
