Bosch GDR 14.4 V-LI / 3601JA1400 / EU 14.4 Volt Spare Parts

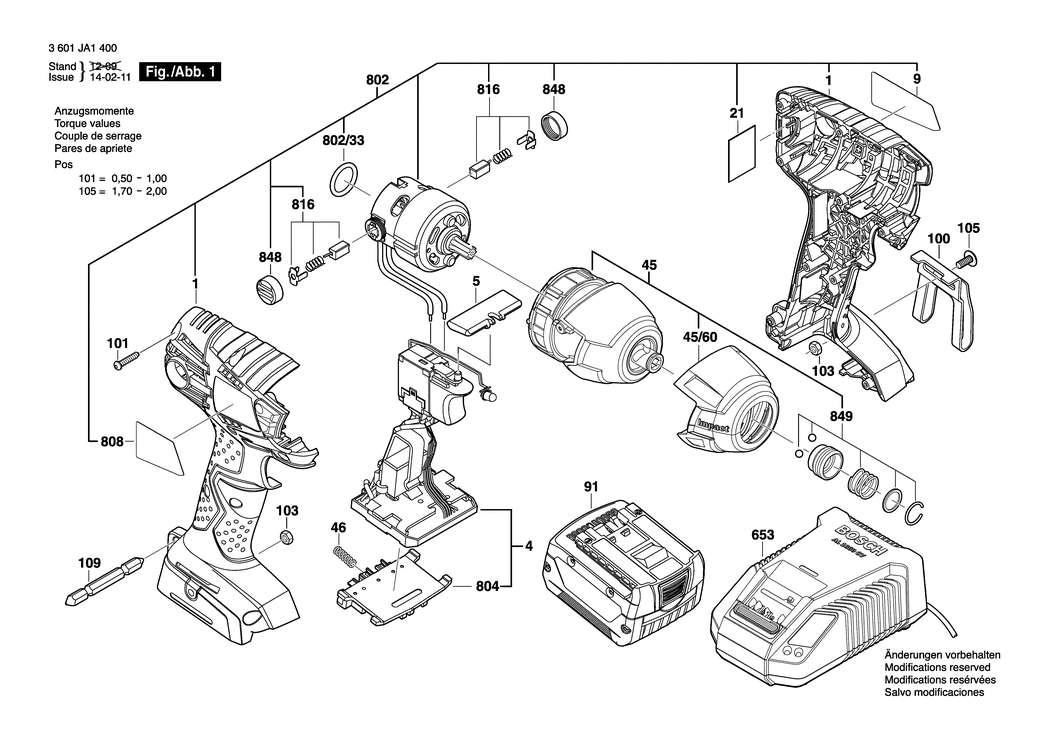

An exploded drawing and listing for the Bosch GDR 14.4 V-LI / 3601JA1400 / EU 14.4 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609101136.A7 2609101136	£31.64	£37.97
4 - ELECTRONICS MODULE BSD-1607233479.A1 1607233479	£68.42	£82.10
5 - BUTTON BSD-2609100698.A18 2609100698	£2.80	£3.36
9 - MANUFACTURER'S NAMEPLATE GDR 14.4V-LI BSD-2609132047.A1 2609132047	£2.61	£3.13
21 - WIRE MESH BSD-2609111485.A11 2609111485	£1.75	£2.10
45 - GEAR BOX BSD-2609199694.A1 2609199694	£81.81	£98.17
45/60 - CAP BSD-2609170128.A5 2609170128	£7.36	£8.83
46 - COMPRESSION SPRING BSD-1609280477.A66 1609280477	£1.75	£2.10
91 - BATTERY SET 14.4V. 1.3Ah. LI. MS BSD-2607336149.A8 2607336149	£70.24	£84.29
91 - SLIDE-IN ACCU PACKAGE BBS-MR XL-PACK 14.4V. LI BSD-2607336223.A15 2607336223	£134.16	£160.99
91 - SLIDE-IN ACCU PACKAGE 14.4V. 2.6Ah. LI. MS BSD-2607336813.A24 2607336813	£116.15	£139.38
91 - SLIDE-IN ACCU PACKAGE 14.4V. 2.0Ah. LI. MS-L BSD-2607336877.A11 2607336877	£88.07	£105.68
100 - CLIP BSD-2609110833.A17 2609110833	£10.10	£12.12
101 - TORX FLAT-HEAD SCREW 3x16 BSD-2609110201.A61 2609110201	£2.16	£2.59
103 - NUT BSD-2609110835.A84 2609110835	£1.75	£2.10
105 - SCREW BSD-2609110834.A1 2609110834	£1.75	£2.10
109 - SCREWDRIVER BLADE BSD-2609110343.A5 2609110343	£2.61	£3.13
653 - FAST CHARGER EU AL 1820 CV 220V BSD-2607225423.A20 2607225423	£68.42	£82.10
653 - FAST CHARGER AUS 240/10.8-18V. 30 MIN BSD-2607225325.A5 2607225325	£120.11	£144.13
653 - CHARGER EU 230/14.4-18V. 30 40 S BSD-2607225321.A14 2607225321	£51.22	£61.47
653 - CHARGER GB 230/10.8-18V. 30 42 S BSD-2607225323.A83 2607225323	£58.76	£70.51
802 - DC MOTOR BSD-2609199312.A1 2609199312	£72.18	£86.62
802/33 - O-RING BSD-2609170104.A19 2609170104	£1.75	£2.10
804 - CONTACT RETAINER BSD-1609280474.A16 1609280474	£14.91	£17.89
808 - NAMEPLATE BSD-2609131976.A0 2609131976	£2.33	£2.80
816 - CARBON-BRUSH SET BSD-2609199169.A13 2609199169	£10.10	£12.12
848 - BRUSH-COVER BSD-2609199190.A6 2609199190	£3.72	£4.47
849 - BIT HOLDER BSD-2609199223.A9 2609199223	£11.30	£13.56

Attribute Name	Value
Brand	Bosch
