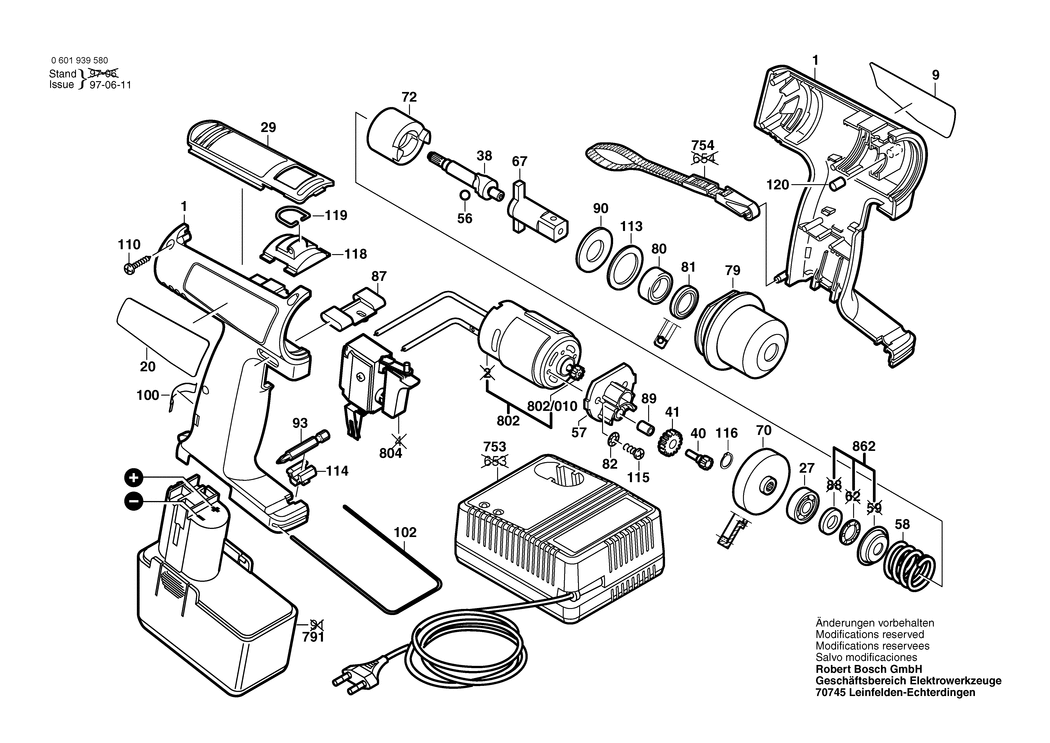

1 - HOUSING SECTION
BSD-2605104469.A5
2605104469
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118965.A1
2601118965
|
-
|
|
|
|
20 - REFERENCE PLATE
BSD-2601118966.A2
2601118966
|
-
|
|
|
|
27 - GROOVE BALL BEARING 7x22x7
BSD-1900900224.A20
1900900224
|
£6.52
|
£7.83
|
|
|
29 - INSERT PIECE
BSD-2605510143.A17
2605510143
|
£2.33
|
£2.80
|
|
|
38 - JACK SHAFT
BSD-2603000016.A12
2603000016
|
-
|
|
|
|
40 - TOOTHED SHAFT Z= 10
BSD-2606309045.A26
2606309045
|
£10.82
|
£12.99
|
|
|
41 - CYLINDRICAL GEAR Z=23
BSD-2606319086.A18
2606319086
|
£3.34
|
£4.01
|
|
|
56 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A642
1903230010
|
£1.66
|
£1.99
|
|
|
57 - INTERMEDIATE FLANGE
BSD-2605700240.A3
2605700240
|
-
|
|
|
|
58 - COMPRESSION SPRING
BSD-2604610050.A3
2604610050
|
-
|
|
|
|
67 - COUPLING HALF
BSD-2606445010.A2
2606445010
|
-
|
|
|
|
70 - RING GEAR
BSD-2606319102.A4
2606319102
|
£10.10
|
£12.12
|
|
|
72 - STRIKER
BSD-2600322051.A5
2600322051
|
-
|
|
|
|
79 - GEAR HOUSING
BSD-2605806412.A5
2605806412
|
-
|
|
|
|
80 - PLAIN BEARING
BSD-2605801018.A4
2605801018
|
£1.32
|
£1.58
|
|
|
81 - RADIAL SEAL
BSD-2601015062.A14
2601015062
|
£2.33
|
£2.80
|
|
|
82 - SERRATED LOCK-WASHER A 4.3 DIN 6798-ST
BSD-2916070006.A38
2916070006
|
£1.66
|
£1.99
|
|
|
87 - ADJUSTING SLIDE
BSD-2601099055.A12
2601099055
|
-
|
|
|
|
89 - PLAIN BEARING
BSD-2605801019.A18
2605801019
|
£2.33
|
£2.80
|
|
|
90 - PLAIN WASHER
BSD-2600100638.A15
2600100638
|
-
|
|
|
|
93 - SCREWDRIVER BLADE
BSD-2607000442.A9
2607000442
|
-
|
|
|
|
100 - CLAMP SPRING
BSD-2601322016.A95
2601322016
|
£2.52
|
£3.02
|
|
|
102 - RETAINING BRACKET
BSD-2601329041.A342
2601329041
|
£2.33
|
£2.80
|
|
|
110 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A64
2603490018
|
£1.66
|
£1.99
|
|
|
113 - RUBBER RING
BSD-2600100098.A11
2600100098
|
-
|
|
|
|
114 - SUPPORT
BSD-2608040131.A204
2608040131
|
£1.95
|
£2.34
|
|
|
115 - COUNTERSUNK-HEAD SCREW DIN 965-M4x10-8.8-Z
BSD-2912341120.A1
2912341120
|
-
|
|
|
|
116 - SPRING RETAINING RING DIN 471-6x0.7-FSt
BSD-2916640003.A14
2916640003
|
-
|
|
|
|
118 - HOLDING FIXTURE
BSD-2605510146.A4
2605510146
|
-
|
|
|
|
119 - SUSPENSION LOOP
BSD-2601310009.A4
2601310009
|
-
|
|
|
|
120 - DAMPING RUBBER
BSD-2603100056.A184
2603100056
|
£1.66
|
£1.99
|
|
|
753 - FAST CHARGER GB 230/7.2-14.4V. 30 MIN.
BSD-2607224703.A171
2607224703
|
£116.15
|
£139.38
|
|
|
754 - CARRYING LOOP
BSD-2601398009.A259
2601398009
|
-
|
|
|
|
791 - SLIDE-IN ACCU PACKAGE 12V. 1.7Ah. NiCd
BSD-2607335039.A20
2607335039
|
-
|
|
|
|
802 - DC MOTOR 12V
BSD-2607022955.A3
2607022955
|
-
|
|
|
|
802/010 - PINION Z=13
BSD-2606316147.A1
2606316147
|
-
|
|
|
|
804 - ON-OFF SWITCH
BSD-2607200353.A78
2607200353
|
-
|
|
|
|
862 - BALL CAGE
BSD-2600923006.A12
2600923006
|
-
|
|
|
|
899 - CORDLESS PERCUS SCREWDRIV
BSD-0601939620.A5
0601939620
|
-
|
|
|
