Bosch BS 18-A POWER / 3601H65W00 / EU 18 Volt Spare Parts

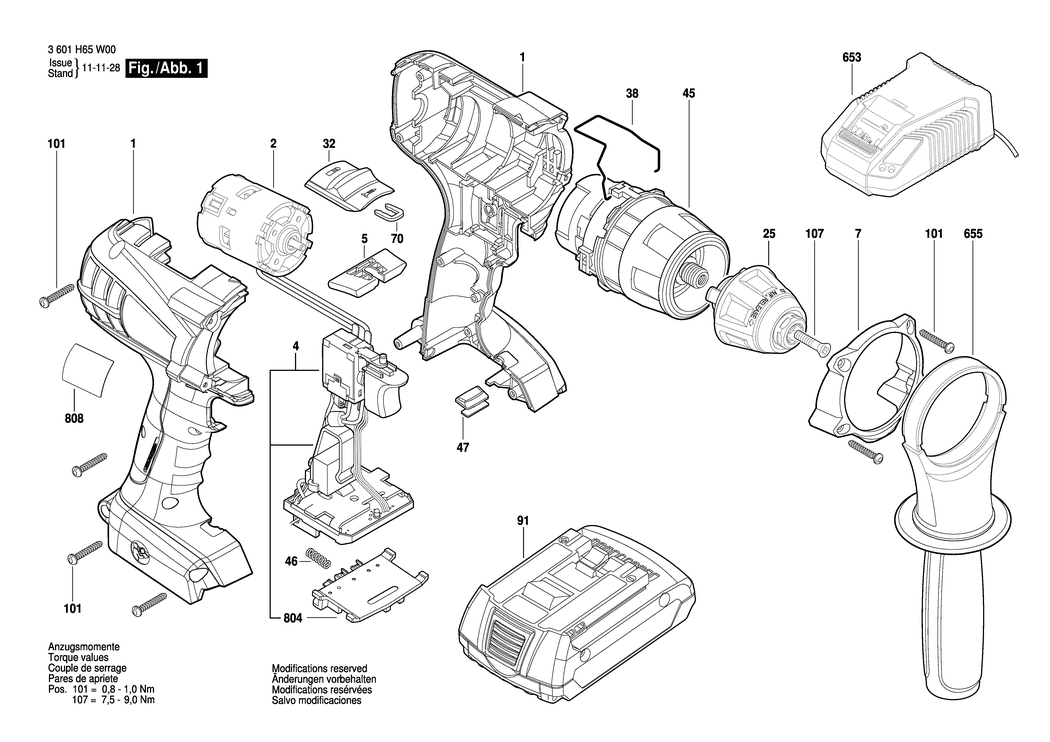

An exploded drawing and listing for the Bosch BS 18-A POWER / 3601H65W00 / EU 18 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609101031.A1 2609101031	£31.64	£37.97
2 - DC MOTOR 18V BSD-1607022609.A2 1607022609	£63.50	£76.20
4 - ELECTRONICS MODULE BSD-1607233524.A3 1607233524	£72.18	£86.62
5 - ADJUSTING LEVER BSD-2609100877.A6 2609100877	£1.75	£2.10
7 - FRONT CAP BSD-2609111343.A0 2609111343	£11.30	£13.56
25 - KEYLESS CHUCK BSD-2609111344.A3 2609111344	£59.53	£71.44
32 - SLIDE SWITCH BSD-2609101042.A3 2609101042	£2.16	£2.59
38 - SWITCH SPRING BSD-2609111021.A7 2609111021	£1.75	£2.10
45 - GEAR BOX BSD-2609199427.A0 2609199427	£120.11	£144.13
46 - COMPRESSION SPRING BSD-1609280477.A17 1609280477	£1.75	£2.10
47 - LENS BSD-2609101350.A9 2609101350	£5.30	£6.36
70 - CLIP BSD-2609110537.A98 2609110537	£1.75	£2.10
91 - SLIDE-IN ACCU PACKAGE 18V. 3.0Ah. LI. MS BSD-2607336691.A0 2607336691	£154.03	£184.84
101 - TORX OVAL-HEAD SCREW BSD-2609110353.A10 2609110353	£2.16	£2.59
107 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A187 2603421229	£1.75	£2.10
653 - FAST CHARGER EU 230/10.8-18V. 1h. AL 30-CV-LI BSD-2607225347.A19 2607225347	£93.88	£112.65
655 - AUXILIARY HANDLE BSD-1602025069.A1 1602025069	£16.41	£19.69
804 - CONTACT RETAINER BSD-1609280478.A73 1609280478	£13.41	£16.09
808 - NAMEPLATE BSD-160111A5HK.A0 160111A5HK	£2.61	£3.13

Attribute Name	Value
Brand	Bosch
