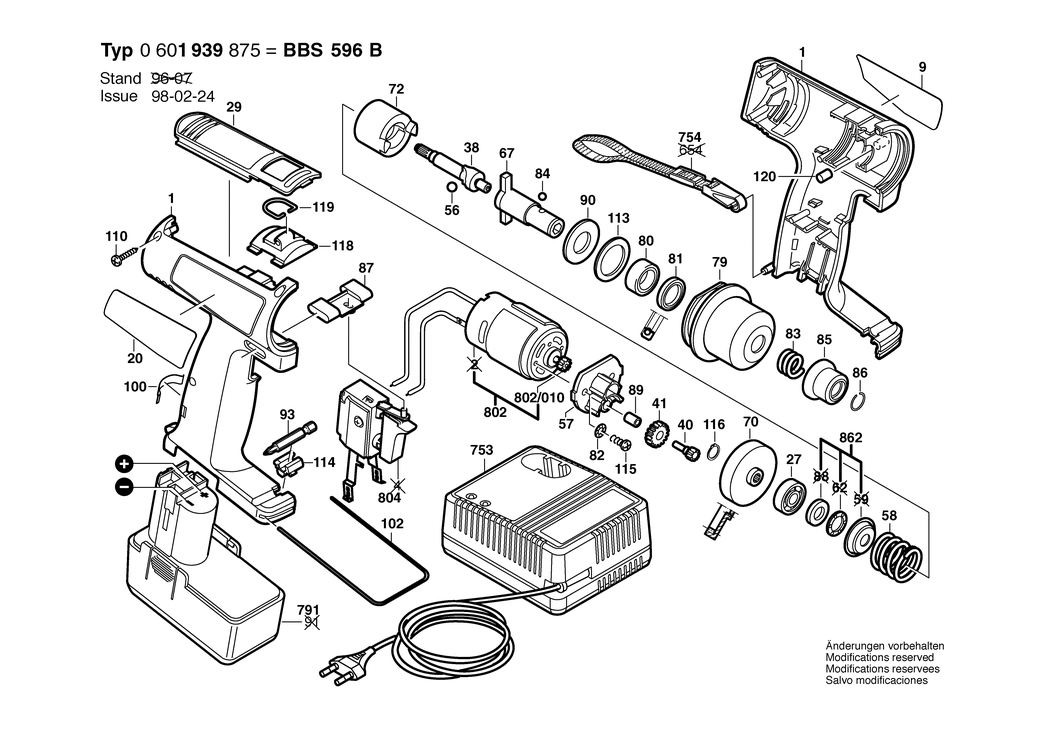

1 - HOUSING SECTION
BSD-2605104534.A0
2605104534
|
-
|
|
|
|
9 - REFERENCE PLATE
BSD-2601118912.A0
2601118912
|
-
|
|
|
|
20 - REFERENCE PLATE
BSD-2601118913.A0
2601118913
|
-
|
|
|
|
27 - GROOVE BALL BEARING 7x22x7
BSD-1900900224.A1
1900900224
|
£6.52
|
£7.83
|
|
|
29 - INSERT PIECE
BSD-2605510143.A18
2605510143
|
£2.33
|
£2.80
|
|
|
38 - JACK SHAFT
BSD-2603000016.A27
2603000016
|
-
|
|
|
|
40 - TOOTHED SHAFT Z= 10
BSD-2606309045.A7
2606309045
|
£10.82
|
£12.99
|
|
|
41 - CYLINDRICAL GEAR Z=23
BSD-2606319086.A27
2606319086
|
£3.34
|
£4.01
|
|
|
56 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A632
1903230010
|
£1.66
|
£1.99
|
|
|
57 - INTERMEDIATE FLANGE
BSD-2605700231.A4
2605700231
|
£1.32
|
£1.58
|
|
|
58 - COMPRESSION SPRING
BSD-2604610038.A0
2604610038
|
-
|
|
|
|
67 - COUPLING HALF
BSD-2606445010.A12
2606445010
|
-
|
|
|
|
70 - RING GEAR Z=46
BSD-2606319085.A0
2606319085
|
-
|
|
|
|
72 - STRIKER
BSD-2600322051.A8
2600322051
|
-
|
|
|
|
79 - GEAR HOUSING
BSD-2605806412.A3
2605806412
|
-
|
|
|
|
80 - PLAIN BEARING
BSD-2605801018.A3
2605801018
|
£1.32
|
£1.58
|
|
|
81 - RADIAL SEAL
BSD-2601015062.A23
2601015062
|
£2.33
|
£2.80
|
|
|
82 - SERRATED LOCK-WASHER A 4.3 DIN 6798-ST
BSD-2916070006.A47
2916070006
|
£1.66
|
£1.99
|
|
|
83 - COMPRESSION SPRING
BSD-2604619016.A19
2604619016
|
-
|
|
|
|
84 - BALL DIN 5401-3.5-II
BSD-1903230406.A19
1903230406
|
£1.66
|
£1.99
|
|
|
85 - TAPER SLEEVE
BSD-2600400032.A19
2600400032
|
£2.80
|
£3.36
|
|
|
86 - RETAINING RING 12 DIN 9045
BSD-2916600007.A132
2916600007
|
£2.80
|
£3.36
|
|
|
87 - ADJUSTING SLIDE
BSD-2601099061.A2
2601099061
|
-
|
|
|
|
89 - PLAIN BEARING
BSD-2605801019.A24
2605801019
|
£2.33
|
£2.80
|
|
|
90 - PLAIN WASHER
BSD-2600100638.A23
2600100638
|
-
|
|
|
|
93 - SCREWDRIVER BLADE
BSD-2607000442.A14
2607000442
|
-
|
|
|
|
100 - CLAMP SPRING
BSD-2601322016.A80
2601322016
|
£2.52
|
£3.02
|
|
|
102 - RETAINING BRACKET
BSD-2601329041.A293
2601329041
|
£2.33
|
£2.80
|
|
|
110 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A59
2603490018
|
£1.66
|
£1.99
|
|
|
113 - RUBBER RING
BSD-2600100098.A20
2600100098
|
-
|
|
|
|
114 - SUPPORT
BSD-2608040131.A260
2608040131
|
£1.95
|
£2.34
|
|
|
115 - OVAL-HEAD SCREW DIN 7985-M4x8-4.8-Z
BSD-2912301118.A4
2912301118
|
-
|
|
|
|
116 - SPRING RETAINING RING DIN 471-6x0.7-FSt
BSD-2916640003.A0
2916640003
|
-
|
|
|
|
118 - HOLDING FIXTURE
BSD-2605510146.A3
2605510146
|
-
|
|
|
|
119 - SUSPENSION LOOP
BSD-2601310009.A20
2601310009
|
-
|
|
|
|
120 - DAMPING RUBBER
BSD-2603100056.A168
2603100056
|
£1.66
|
£1.99
|
|
|
753 - . EU 230/7.2-14.4V. 1h
BSD-2607224238.A3
2607224238
|
-
|
|
|
|
754 - CARRYING LOOP
BSD-2601398009.A303
2601398009
|
-
|
|
|
|
791 - SLIDE-IN ACCU PACKAGE 9.6V.1.4Ah.NiCd
BSD-2607335147.A1
2607335147
|
-
|
|
|
|
802 - DC MOTOR 9.6V
BSD-2607022934.A0
2607022934
|
-
|
|
|
|
802/010 - PINION Z=13
BSD-2606316147.A11
2606316147
|
-
|
|
|
|
804 - ON-OFF SWITCH
BSD-2607200351.A14
2607200351
|
-
|
|
|
|
862 - BALL CAGE
BSD-2600923006.A23
2600923006
|
-
|
|
|
