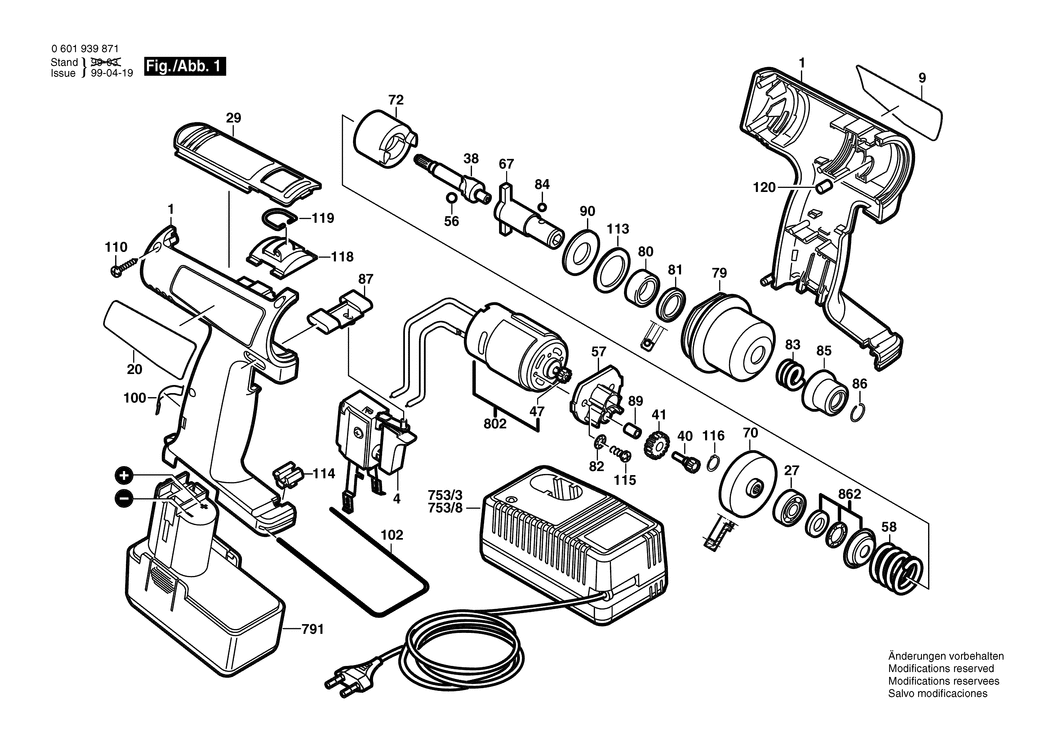

1 - HOUSING SECTION
BSD-2605104522.A1
2605104522
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200351.A12
2607200351
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200351.A13
2607200351
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118823.A0
2601118823
|
-
|
|
|
|
20 - REFERENCE PLATE
BSD-2601118824.A0
2601118824
|
-
|
|
|
|
27 - GROOVE BALL BEARING 7x22x7
BSD-1900900224.A3
1900900224
|
£6.52
|
£7.83
|
|
|
29 - INSERT PIECE
BSD-2605510143.A20
2605510143
|
£2.33
|
£2.80
|
|
|
38 - JACK SHAFT
BSD-2603000016.A24
2603000016
|
-
|
|
|
|
40 - TOOTHED SHAFT Z= 10
BSD-2606309045.A9
2606309045
|
£10.82
|
£12.99
|
|
|
41 - CYLINDRICAL GEAR Z=23
BSD-2606319086.A25
2606319086
|
£3.34
|
£4.01
|
|
|
47 - PINION Z=13
BSD-2606316147.A8
2606316147
|
-
|
|
|
|
56 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A633
1903230010
|
£1.75
|
£2.10
|
|
|
57 - INTERMEDIATE FLANGE
BSD-2605700231.A6
2605700231
|
£1.32
|
£1.58
|
|
|
58 - COMPRESSION SPRING
BSD-2604610038.A2
2604610038
|
-
|
|
|
|
67 - COUPLING HALF
BSD-2606445010.A14
2606445010
|
-
|
|
|
|
70 - RING GEAR Z=46
BSD-2606319085.A2
2606319085
|
-
|
|
|
|
72 - STRIKER
BSD-2600322051.A10
2600322051
|
-
|
|
|
|
79 - GEAR HOUSING
BSD-2605806412.A1
2605806412
|
-
|
|
|
|
80 - PLAIN BEARING
BSD-2605801018.A1
2605801018
|
£1.32
|
£1.58
|
|
|
81 - RADIAL SEAL
BSD-2601015062.A21
2601015062
|
£2.33
|
£2.80
|
|
|
82 - SERRATED LOCK-WASHER A 4.3 DIN 6798-ST
BSD-2916070006.A46
2916070006
|
£1.75
|
£2.10
|
|
|
83 - COMPRESSION SPRING
BSD-2604619016.A18
2604619016
|
-
|
|
|
|
84 - BALL DIN 5401-3.5-II
BSD-1903230406.A16
1903230406
|
£1.75
|
£2.10
|
|
|
85 - TAPER SLEEVE
BSD-2600400032.A17
2600400032
|
£2.80
|
£3.36
|
|
|
86 - RETAINING RING
BSD-1600224025.A72
1600224025
|
£2.61
|
£3.13
|
|
|
87 - ADJUSTING SLIDE
BSD-2601099055.A22
2601099055
|
-
|
|
|
|
89 - PLAIN BEARING
BSD-2605801019.A26
2605801019
|
£2.33
|
£2.80
|
|
|
90 - PLAIN WASHER
BSD-2600100638.A20
2600100638
|
-
|
|
|
|
100 - CLAMP SPRING
BSD-2601322016.A83
2601322016
|
£2.52
|
£3.02
|
|
|
102 - RETAINING BRACKET
BSD-2601329041.A290
2601329041
|
£2.33
|
£2.80
|
|
|
110 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A58
2603490018
|
£1.75
|
£2.10
|
|
|
113 - RUBBER RING
BSD-2600100098.A23
2600100098
|
-
|
|
|
|
114 - SUPPORT
BSD-2608040131.A259
2608040131
|
£1.95
|
£2.34
|
|
|
115 - OVAL-HEAD SCREW DIN 7985-M4x8-4.8-Z
BSD-2912301118.A7
2912301118
|
-
|
|
|
|
116 - SPRING RETAINING RING DIN 471-6x0.7-FSt
BSD-2916640003.A3
2916640003
|
-
|
|
|
|
118 - HOLDING FIXTURE
BSD-2605510146.A1
2605510146
|
-
|
|
|
|
119 - SUSPENSION LOOP
BSD-2601310009.A17
2601310009
|
-
|
|
|
|
120 - DAMPING RUBBER
BSD-2603100056.A169
2603100056
|
£1.75
|
£2.10
|
|
|
753/3 - FAST CHARGER EU 230/7.2-14.4V. 1h
BSD-2607224310.A8
2607224310
|
-
|
|
|
|
753/8 - FAST CHARGER EU 230/4.8-14.4V. 12 MIN.
BSD-2607224273.A9
2607224273
|
-
|
|
|
|
791 - SLIDE-IN ACCU PACKAGE 9.6V.1.4Ah.NiCd
BSD-2607335142.A6
2607335142
|
-
|
|
|
|
795 - KEYLESS CHUCK dia 1-10 MM
BSD-2608572075.A7
2608572075
|
£23.62
|
£28.34
|
|
|
802 - DC MOTOR 9.6V
BSD-2607022934.A3
2607022934
|
-
|
|
|
|
862 - BALL CAGE
BSD-2600923006.A26
2600923006
|
-
|
|
|
