Bosch bs 18-a compact / 3601H66W00 / EU 18 Volt Spare Parts

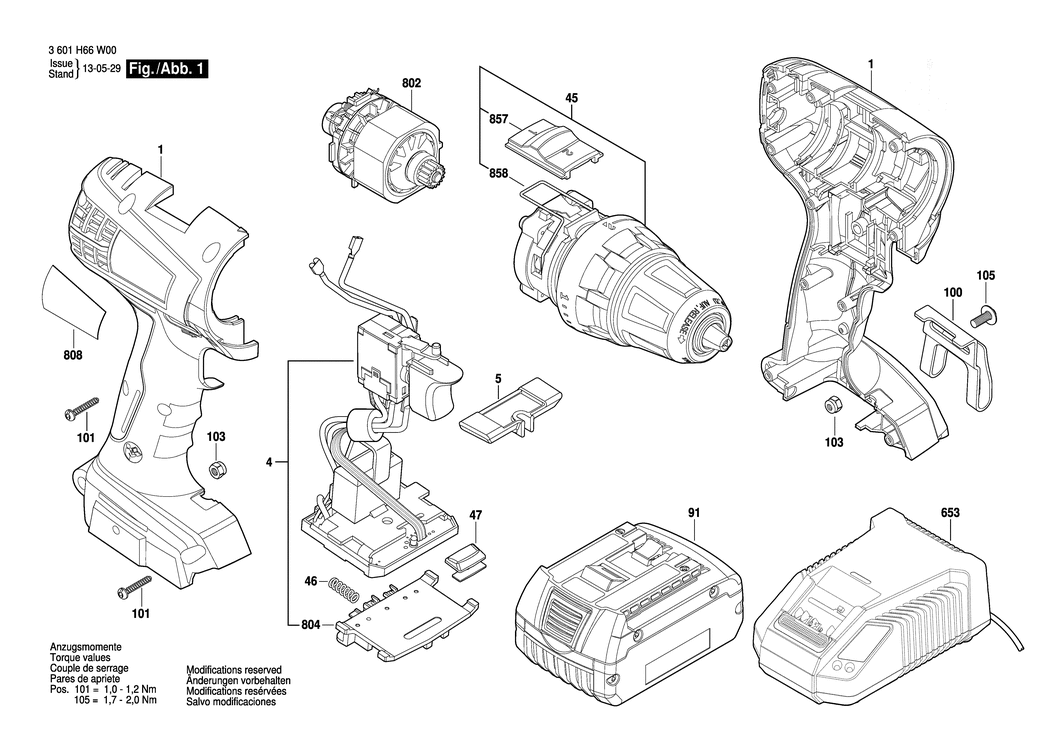

An exploded drawing and listing for the Bosch bs 18-a compact / 3601H66W00 / EU 18 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609101153.A2 2609101153	£27.23	£32.68
4 - ELECTRONICS MODULE BSD-1607233492.A1 1607233492	£70.24	£84.29
5 - ADJUSTING LEVER BSD-2609100859.A2 2609100859	£1.75	£2.10
45 - GEAR BOX BSD-2609199569.A0 2609199569	£81.81	£98.17
46 - COMPRESSION SPRING BSD-1609280477.A5 1609280477	£1.75	£2.10
47 - LENS BSD-2609100858.A8 2609100858	£1.75	£2.10
91 - SLIDE-IN ACCU PACKAGE 18V. 4.0Ah. LI BSD-2607336975.A6 2607336975	£179.37	£215.24
100 - CLIP BSD-2609110956.A45 2609110956	£7.36	£8.83
101 - TORX OVAL-HEAD SCREW BSD-2609110353.A16 2609110353	£2.16	£2.59
103 - NUT BSD-2609110835.A3 2609110835	£1.75	£2.10
105 - SCREW BSD-2609110834.A89 2609110834	£1.75	£2.10
653 - FAST CHARGER EU 230/10.8-18V. 1h. AL 30-CV-LI BSD-2607225347.A14 2607225347	£93.88	£112.65
802 - DC MOTOR 18V BSD-2609199359.A2 2609199359	£51.22	£61.47
804 - CONTACT RETAINER BSD-1609280478.A78 1609280478	£13.41	£16.09
808 - NAMEPLATE BSD-2609133719.A0 2609133719	£2.80	£3.36
857 - SWITCH SLIDE BSD-2609101158.A4 2609101158	£2.16	£2.59
858 - SWITCH SPRING BSD-2609111078.A12 2609111078	£1.75	£2.10

Attribute Name	Value
Brand	Bosch
