Bosch GSR 18 V / 3601J95300 / EU 18 Volt Spare Parts

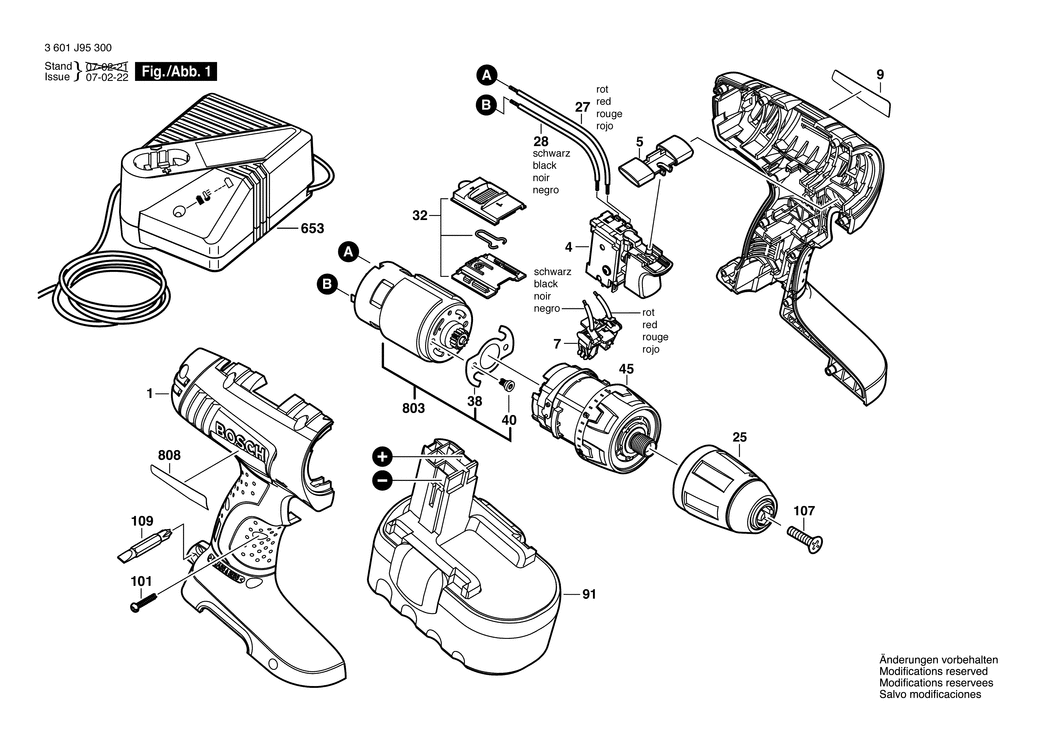

An exploded drawing and listing for the Bosch GSR 18 V / 3601J95300 / EU 18 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609100503.A0 2609100503	£21.68	£26.01
4 - SWITCH BSD-2607202015.A0 2607202015	-
5 - REVERSE-TRANSFER LEVER BSD-2609100504.A0 2609100504	£1.75	£2.10
7 - CONTACT RETAINER BSD-2609199125.A4 2609199125	£2.61	£3.13
9 - MANUFACTURER'S NAMEPLATE GSR 18V BSD-2609131286.A1 2609131286	£2.33	£2.80
25 - KEYLESS CHUCK 10 MM BSD-2609110660.A2 2609110660	£45.67	£54.80
27 - CONNECTING CABLE BSD-2609120264.A5 2609120264	£1.32	£1.58
28 - CONNECTING CABLE BSD-2609120263.A3 2609120263	£1.75	£2.10
32 - SLIDE SWITCH BSD-2609199119.A2 2609199119	£2.80	£3.36
38 - TAB WASHER BSD-2609110633.A11 2609110633	£1.75	£2.10
40 - SCREW BSD-2609110634.A4 2609110634	£1.75	£2.10
45 - PLANETARY GEAR TRAIN BSD-2609199343.A4 2609199343	£41.62	£49.95
91 - SLIDE-IN ACCU PACKAGE 18V. 2.0Ah. NiCd BSD-2607335735.A0 2607335735	-
101 - TORX FLAT-HEAD SCREW 3x16 BSD-2609110201.A74 2609110201	£2.16	£2.59
107 - PAN HEAD SCREW M 6x30 BSD-2609110635.A16 2609110635	£1.75	£2.10
109 - SCREWDRIVER BIT BSD-2609160063.A28 2609160063	£3.72	£4.47
803 - DC MOTOR 18V BSD-2609199128.A1 2609199128	£48.38	£58.06
808 - NAMEPLATE BSD-2609131300.A0 2609131300	-
