Bosch GSR 1440-LI / 3601JA8401 / GB 14.4 Volt Spare Parts

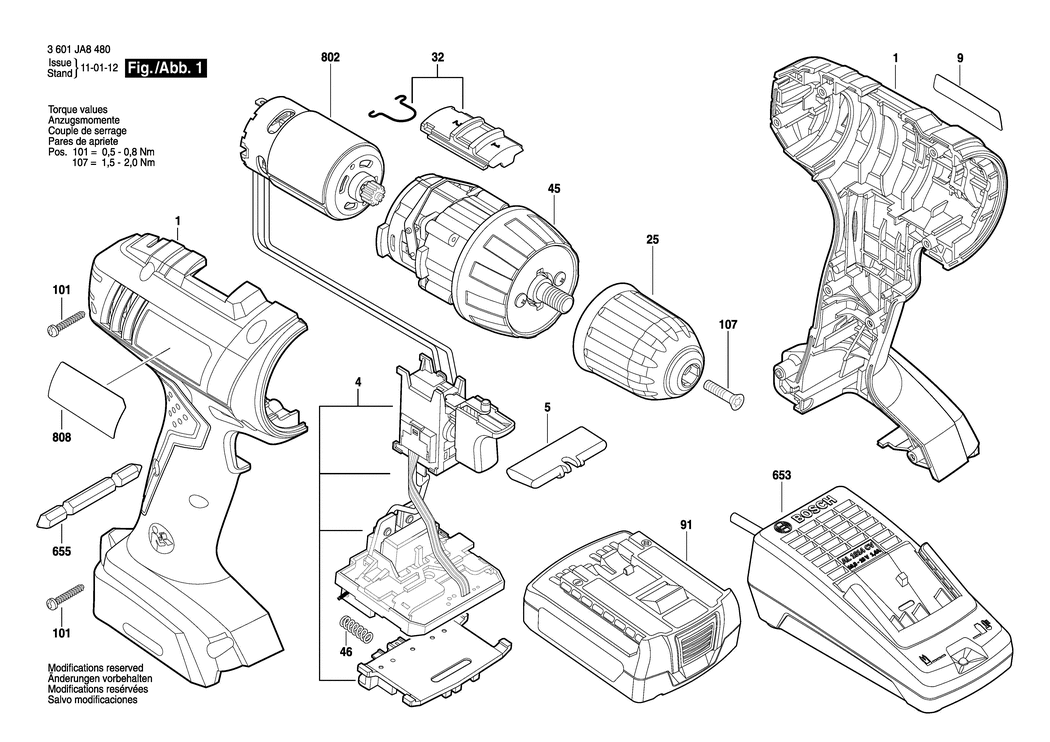

An exploded drawing and listing for the Bosch GSR 1440-LI / 3601JA8401 / GB 14.4 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609100955.A6 2609100955	£18.96	£22.75
4 - ELECTRONICS MODULE BSD-2609199615.A0 2609199615	£40.80	£48.96
5 - BUTTON BSD-2609100698.A8 2609100698	£2.80	£3.36
9 - MANUFACTURER'S NAMEPLATE GSR 1440 LI BSD-2609133195.A1 2609133195	£2.61	£3.13
25 - KEYLESS CHUCK 13 MM BSD-2609111225.A3 2609111225	£37.27	£44.72
32 - SWITCHOVER UNIT BSD-2609199336.A2 2609199336	£3.72	£4.47
45 - GEAR BOX BSD-2609199337.A5 2609199337	£45.67	£54.80
46 - COMPRESSION SPRING BSD-1609280477.A58 1609280477	£1.75	£2.10
91 - SLIDE-IN ACCU PACKAGE BSD-2607336739.A2 2607336739	£103.14	£123.77
101 - TORX FLAT-HEAD SCREW 3x16 BSD-2609110201.A97 2609110201	£2.16	£2.59
107 - COUNTERSUNK-HEAD SCREW BSD-2609111314.A7 2609111314	£1.75	£2.10
653 - BATTERY CHARGER GB 240/10.8-18V. 30 MIN BSD-2607225729.A1 2607225729	£51.22	£61.47
653 - BATTERY CHARGER EU 230/10.8-18V. 30 MIN BSD-2607225727.A5 2607225727	£51.22	£61.47
655 - SCREWDRIVER BLADE BSD-2609110342.A12 2609110342	£2.61	£3.13
802 - DC MOTOR 14.4 V BSD-2609199378.A1 2609199378	£54.42	£65.30
808 - NAMEPLATE BSD-2609138246.A0 2609138246	£2.61	£3.13

Attribute Name	Value
Brand	Bosch
