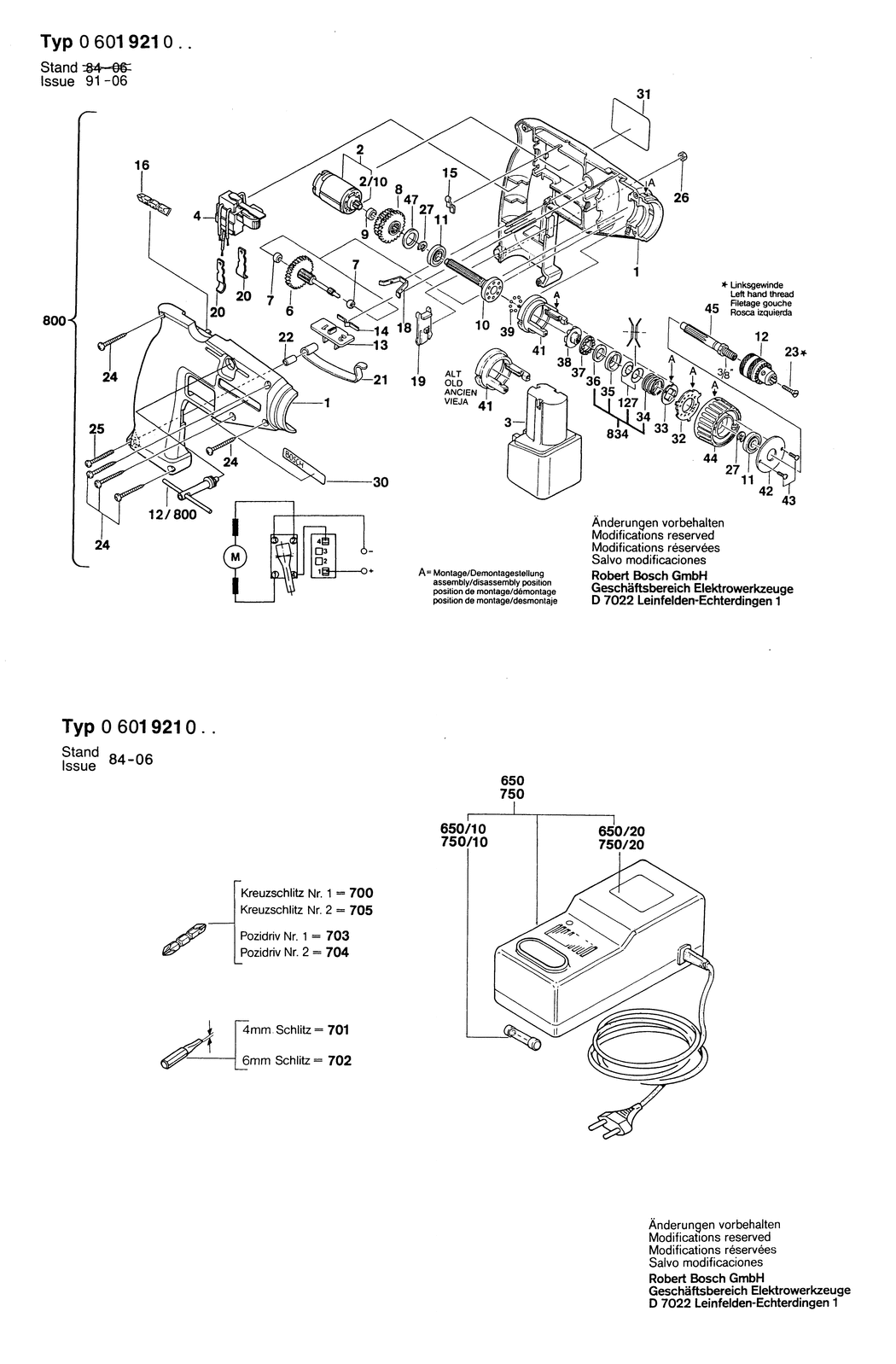

1 - MOTOR HOUSING
BSD-1609340022.A3
1609340022
|
-
|
|
|
|
2 - DC MOTOR 7.2V
BSD-1609340003.A40
1609340003
|
-
|
|
|
|
2/10 - PINION Z=11
BSD-2606316112.A48
2606316112
|
£4.48
|
£5.37
|
|
|
3 - BATTERY PACK 7.2V
BSD-1609340000.A1
1609340000
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200294.A21
2607200294
|
£15.65
|
£18.78
|
|
|
6 - TOOTHED SHAFT Z=10/19/81
BSD-1609340005.A62
1609340005
|
£17.58
|
£21.09
|
|
|
7 - SINTERED-METAL BUSHING
BSD-2600302002.A310
2600302002
|
£1.84
|
£2.21
|
|
|
8 - SET OF GEARS Z=58/67
BSD-1609340007.A230
1609340007
|
£14.91
|
£17.89
|
|
|
9 - SINTERED-METAL BUSHING
BSD-2600301011.A354
2600301011
|
£1.84
|
£2.21
|
|
|
10 - CAMSHAFT
BSD-1609340023.A10
1609340023
|
-
|
|
|
|
11 - GROOVE BALL BEARING 6000 DIN 625
BSD-1900900270.A54
1900900270
|
-
|
|
|
|
12 - KEY CHUCK dia1-10 MM. 3/8
BSD-1608571058.A17
1608571058
|
£13.99
|
£16.79
|
|
|
12/800 - CHUCK WRENCH SG 1. dia4x60 MM
BSD-1607950042.A23
1607950042
|
£3.67
|
£4.40
|
|
|
13 - ADJUSTING SLIDE
BSD-1609340010.A4
1609340010
|
-
|
|
|
|
14 - RATCHET SPRING
BSD-1609340011.A11
1609340011
|
-
|
|
|
|
15 - HOLDING SPRING
BSD-1609340012.A3
1609340012
|
-
|
|
|
|
16 - SCREWDRIVER BLADE 6 MM
BSD-1609200147.A36
1609200147
|
£3.72
|
£4.47
|
|
|
18 - CLAMP SPRING
BSD-2601250003.A20
2601250003
|
-
|
|
|
|
19 - LOCKING LEVER 32.7 MM
BSD-1609340014.A12
1609340014
|
-
|
|
|
|
20 - CONTACT SPRING
BSD-2601324012.A31
2601324012
|
£1.84
|
£2.21
|
|
|
21 - SPRING CLIP dia 6.2 MM
BSD-1609340016.A12
1609340016
|
-
|
|
|
|
22 - SPACER SLEEVE dia 6 MM
BSD-1609340017.A11
1609340017
|
-
|
|
|
|
23 - COUNTERSUNK-HEAD SCREW M5x20
BSD-2609110721.A224
2609110721
|
£2.27
|
£2.72
|
|
|
24 - SOCKET HEAD CAP SCREW
BSD-1609340019.A9
1609340019
|
-
|
|
|
|
25 - SOCKET HEAD CAP SCREW DIN 84-AM4x20-8.8
BSD-2910021130.A191
2910021130
|
£1.84
|
£2.21
|
|
|
26 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A412
2915011005
|
£1.84
|
£2.21
|
|
|
27 - LOCKING WASHER
BSD-1609340020.A9
1609340020
|
-
|
|
|
|
30 - MANUFACTURER'S NAMEPLATE
BSD-1601110217.A7
1601110217
|
-
|
|
|
|
31 - NAMEPLATE
BSD-1601110349.A0
1601110349
|
-
|
|
|
|
32 - PERFORATED PANEL
BSD-1609340024.A3
1609340024
|
-
|
|
|
|
33 - LOCATING WASHER
BSD-1609340025.A10
1609340025
|
-
|
|
|
|
34 - COMPRESSION SPRING
BSD-2604618000.A43
2604618000
|
-
|
|
|
|
35 - SUPPORTING DISC
BSD-1609340027.A4
1609340027
|
-
|
|
|
|
36 - SUPPORT DISC
BSD-1609340028.A9
1609340028
|
-
|
|
|
|
37 - D-GROOVE BALL THR BEARING
BSD-1609340029.A4
1609340029
|
-
|
|
|
|
38 - DISC CAM
BSD-1609340030.A9
1609340030
|
-
|
|
|
|
39 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A69
1903230007
|
£1.84
|
£2.21
|
|
|
41 - ADJUSTING SLEEVE
BSD-1609340032.A4
1609340032
|
-
|
|
|
|
42 - RETAINING WASHER
BSD-1609340033.A9
1609340033
|
-
|
|
|
|
43 - SOCKET HEAD CAP SCREW DIN 84-AM5x8-8.8
BSD-2910021150.A2
2910021150
|
-
|
|
|
|
44 - SETTING RING
BSD-2605190014.A8
2605190014
|
-
|
|
|
|
45 - THREADED SPINDLE 1/2
BSD-1609340035.A4
1609340035
|
-
|
|
|
|
47 - SHIM
BSD-1609340053.A9
1609340053
|
-
|
|
|
|
650 - FAST CHARGER EU 230/7.2-24V. 1h
BSD-2607224425.A404
2607224425
|
£88.07
|
£105.68
|
|
|
650 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN.
BSD-2607224701.A35
2607224701
|
£92.47
|
£110.96
|
|
|
702 - SCREWDRIVER BLADE 6 MM
BSD-1609200329.A0
1609200329
|
-
|
|
|
|
800 - CORDLESS SCREWDRIVER
BSD-0601921023.A1
0601921023
|
-
|
|
|
|
800 - BATT-OPER DRILL
BSD-0601921061.A3
0601921061
|
-
|
|
|
