Bosch BACS 12 V / 3601J16535 / EU 12 Volt Spare Parts

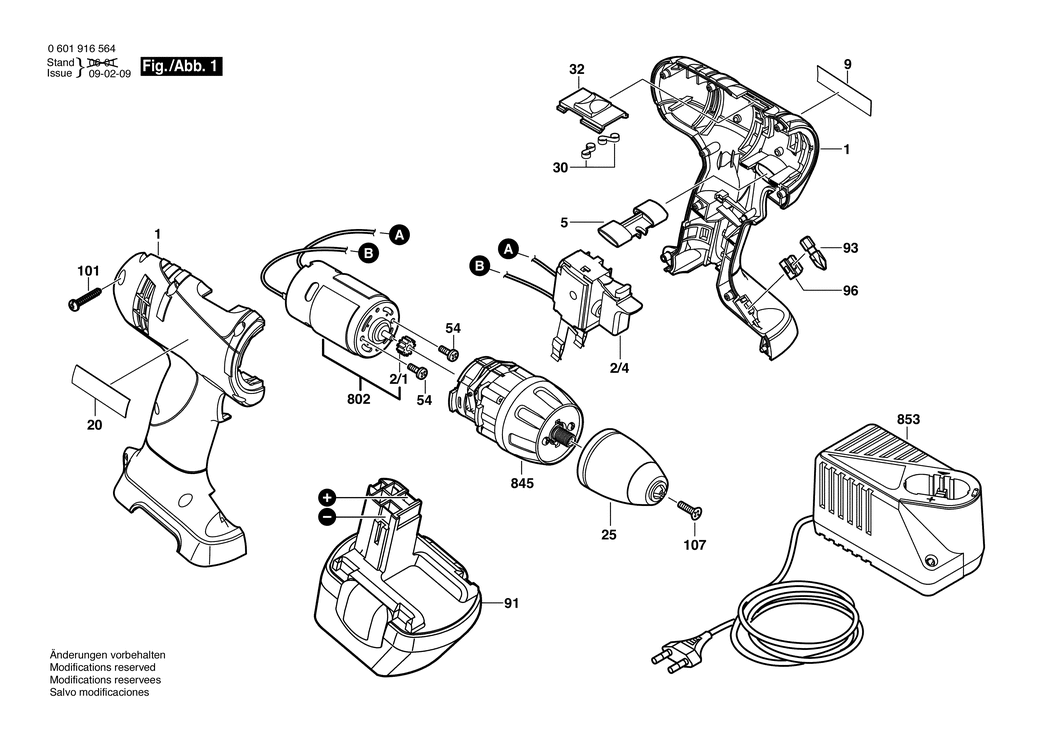

An exploded drawing and listing for the Bosch BACS 12 V / 3601J16535 / EU 12 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605105042.A0 2605105042	£21.42	£25.71
2/1 - PINION BSD-2606316226.A13 2606316226	£5.87	£7.04
2/4 - ON-OFF SWITCH BSD-2607200482.A0 2607200482	£41.62	£49.95
5 - ADJUSTING SLIDE BSD-2601099132.A0 2601099132	£5.87	£7.04
9 - MANUFACTURER'S NAMEPLATE BSD-2601116500.A1 2601116500	£3.34	£4.01
20 - REFERENCE PLATE BSD-2601116501.A0 2601116501	£3.34	£4.01
25 - KEYLESS CHUCK BSD-2608572201.A6 2608572201	£41.62	£49.95
30 - LEAF SPRING BSD-2604690022.A0 2604690022	£1.66	£1.99
32 - ADJUSTING SLIDE BSD-2601099133.A0 2601099133	£3.80	£4.56
54 - TORX SH CAP SCREW M4x8-4.8-Z BSD-2603414049.A3 2603414049	-
91 - SLIDE-IN ACCU PACKAGE 12V. 1.5Ah BSD-2607335647.A0 2607335647	£61.98	£74.38
91 - SLIDE-IN ACCU PACKAGE 12V.2.6Ah.NiMh BSD-2607335767.A0 2607335767	-
93 - SCREWDRIVER BIT BSD-2607000366.A29 2607000366	-
96 - SPRING ELEMENT BSD-2604690035.A18 2604690035	£1.66	£1.99
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A348 2603490018	£1.66	£1.99
107 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A89 2603421229	£1.66	£1.99
200 - REFERENCE PLATE BSD-2601116709.A0 2601116709	-
802 - DC MOTOR 12-14.4V BSD-2607022869.A7 2607022869	£52.15	£62.58
845 - PLANETARY GEAR TRAIN BSD-2606200946.A2 2606200946	£41.62	£49.95
853 - FAST CHARGER EU 230/7.2-24V.1h BSD-2607225021.A0 2607225021	£114.88	£137.86
