Bosch ABS 72 M-2 / 0601936771 / EU 7.2 Volt Spare Parts

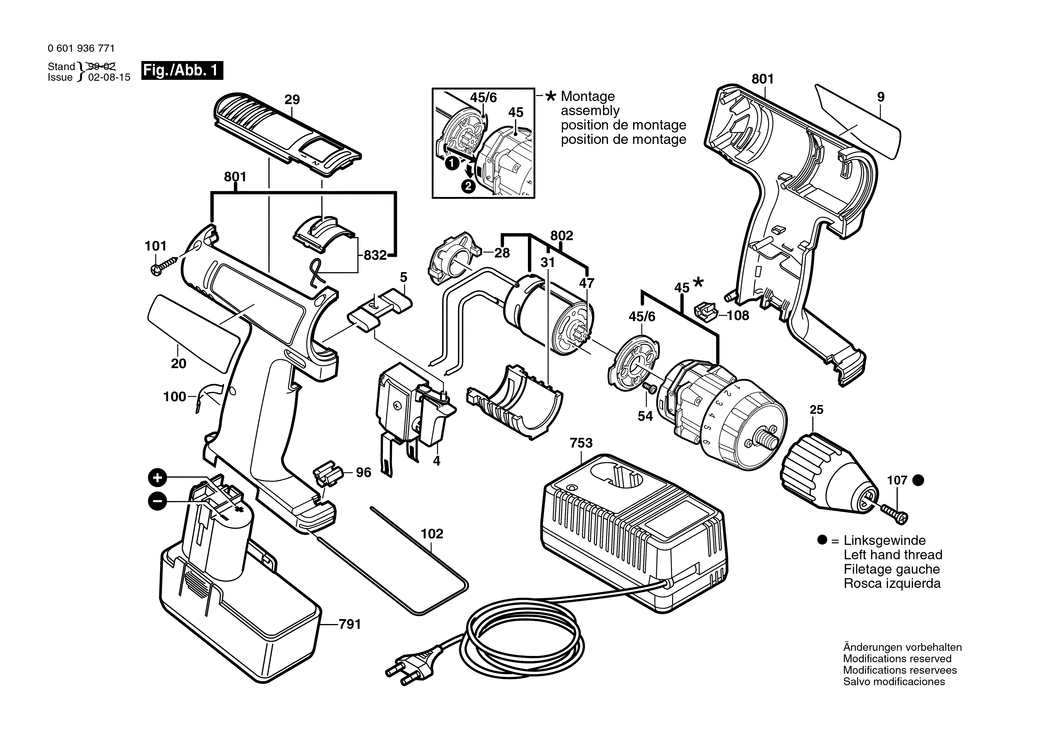

An exploded drawing and listing for the Bosch ABS 72 M-2 / 0601936771 / EU 7.2 Volt

	Ex VAT	Inc VAT
4 - ON-OFF SWITCH BSD-2607200351.A22 2607200351	-
5 - ADJUSTING SLIDE BSD-2601099055.A61 2601099055	-
9 - MANUFACTURER'S NAMEPLATE BSD-2601118817.A0 2601118817	-
20 - REFERENCE PLATE BSD-2601118818.A0 2601118818	-
25 - KEYLESS CHUCK BSD-2608572214.A15 2608572214	£45.67	£54.80
28 - ADAPTER INSERT BSD-2605719018.A4 2605719018	-
29 - INSERT PIECE BSD-2605510130.A8 2605510130	-
31 - INSERTED PART BSD-2608040098.A10 2608040098	-
45 - PLANETARY GEAR TRAIN BSD-2606200065.A14 2606200065	-
45/6 - INTERMEDIATE FLANGE BSD-2605719008.A29 2605719008	£3.72	£4.47
47 - PINION Z=12 BSD-2606316161.A22 2606316161	-
54 - TORX SH CAP SCREW M4x8-4.8-Z BSD-2603414049.A46 2603414049	-
96 - SUPPORT BSD-2608040131.A120 2608040131	£1.95	£2.34
100 - CLAMP SPRING BSD-2601322016.A154 2601322016	£2.52	£3.02
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A863 2603490018	£1.66	£1.99
102 - RETAINING BRACKET BSD-2601329041.A65 2601329041	£2.33	£2.80
107 - COUNTERSUNK-HEAD SCREW BSD-2603421227.A20 2603421227	-
108 - SUPPORT BSD-2602180001.A2 2602180001	£1.66	£1.99
753 - FAST CHARGER EU 230/7.2-14.4V. 1h BSD-2607224310.A2 2607224310	-
753 - FAST CHARGER EU 230/4.8-14.4V. 12 MIN. BSD-2607224273.A4 2607224273	-
791 - SLIDE-IN ACCU PACKAGE 7.2V.1.4Ah.NiCd BSD-2607335141.A0 2607335141	-
801 - HOUSING SECTION BSD-2605104519.A0 2605104519	-
802 - DC MOTOR 7.2V BSD-2607022945.A3 2607022945	-
832 - ADJUSTING SLIDE BSD-2601099126.A12 2601099126	-
