Bosch ABS 12 M-2 / 0601936572 / EU 12 Volt Spare Parts

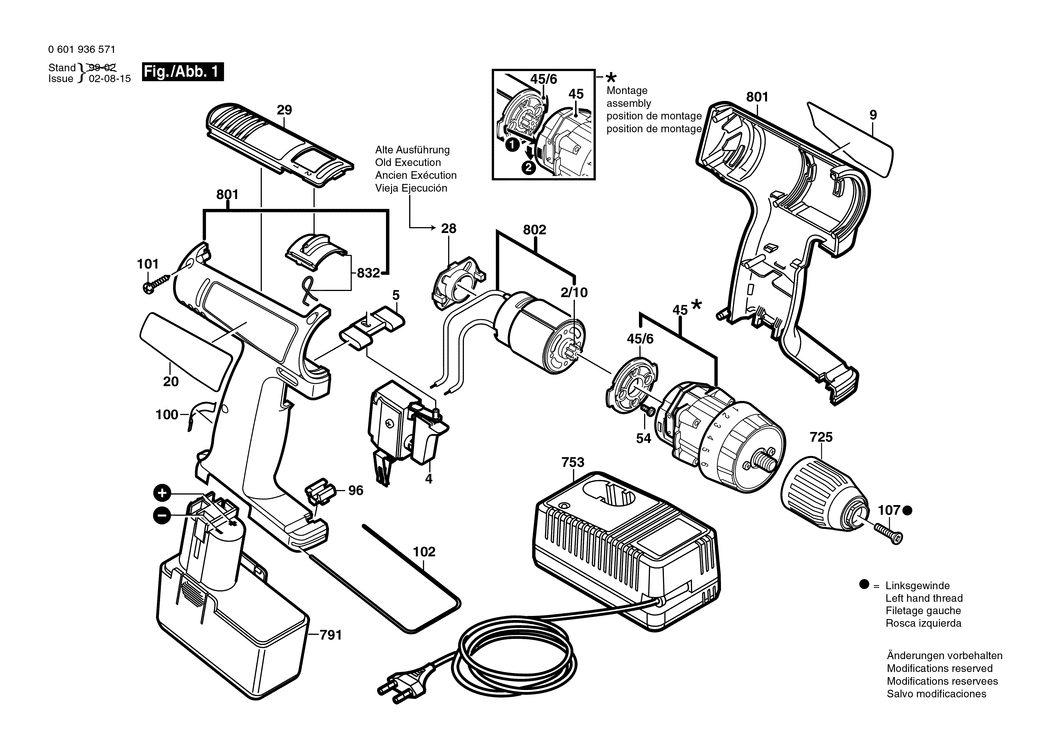

An exploded drawing and listing for the Bosch ABS 12 M-2 / 0601936572 / EU 12 Volt

	Ex VAT	Inc VAT
2/10 - PINION Z=12 BSD-2606316161.A27 2606316161	-
4 - ON-OFF SWITCH BSD-2607200351.A16 2607200351	-
5 - ADJUSTING SLIDE BSD-2601099055.A59 2601099055	-
9 - MANUFACTURER'S NAMEPLATE BSD-2601118821.A0 2601118821	-
20 - REFERENCE PLATE BSD-2601118822.A1 2601118822	-
28 - ADAPTER INSERT BSD-2605719015.A5 2605719015	£2.80	£3.36
29 - INSERT PIECE BSD-2605510130.A16 2605510130	-
45 - PLANETARY GEAR TRAIN BSD-2606200065.A19 2606200065	-
45/6 - INTERMEDIATE FLANGE BSD-2605719008.A21 2605719008	£3.72	£4.47
54 - TORX SH CAP SCREW M4x8-4.8-Z BSD-2603414049.A59 2603414049	-
96 - SUPPORT BSD-2608040131.A136 2608040131	£1.95	£2.34
100 - CLAMP SPRING BSD-2601322016.A145 2601322016	£2.52	£3.02
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A879 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A74 2601329041	£2.33	£2.80
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A92 2609110721	£2.16	£2.59
725 - KEYLESS CHUCK dia 2-13 MM. 3/8 BSD-2608572111.A1 2608572111	-
753 - FAST CHARGER EU 230/7.2-14.4V. 1h BSD-2607224310.A0 2607224310	-
753 - FAST CHARGER EU 230/4.8-14.4V. 12 MIN. BSD-2607224273.A6 2607224273	-
791 - SLIDE-IN ACCU PACKAGE 12V.1.4Ah.NiCd BSD-2607335143.A0 2607335143	-
791 - SLIDE-IN ACCU PACKAGE 12V.1.7Ah.NiCd BSD-2607335145.A4 2607335145	-
801 - HOUSING SECTION BSD-2605104521.A0 2605104521	-
802 - DC MOTOR 9.6-12V BSD-2607022957.A9 2607022957	-
832 - ADJUSTING SLIDE BSD-2601099126.A16 2601099126	-
899 - . BSD-0601936572.A1 0601936572	-

Attribute Name	Value
Brand	Bosch
