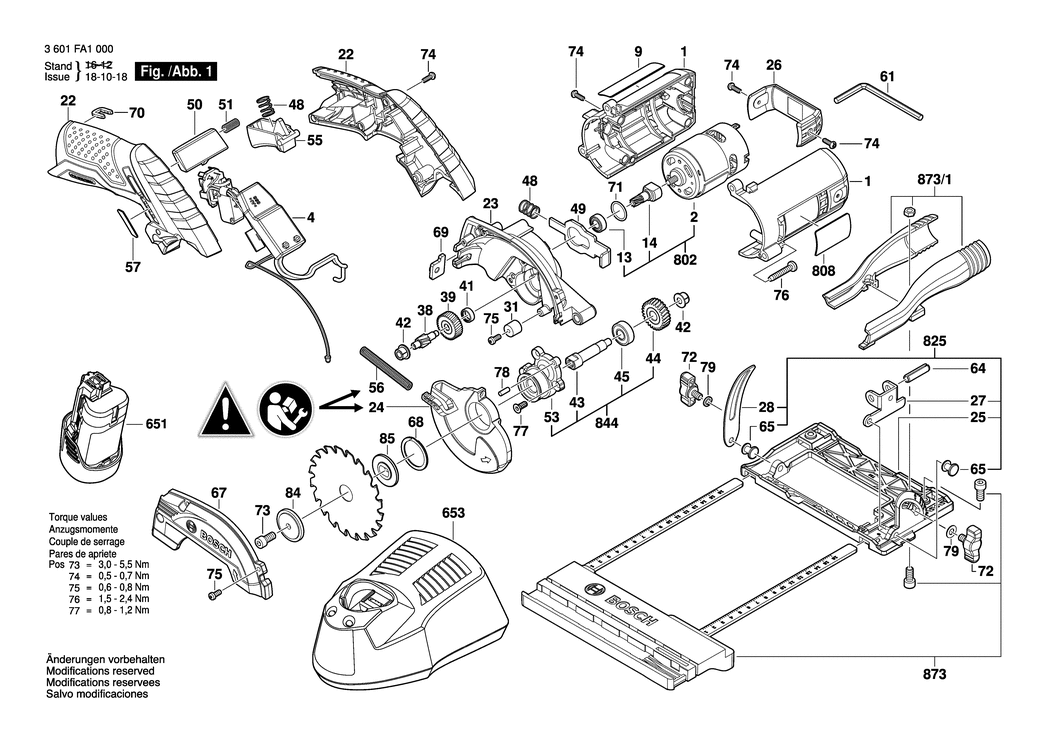

1 - MOTOR HOUSING
BSD-1619P10718.A1
1619P10718
|
£11.87
|
£14.24
|
|
|
2 - DC MOTOR
BSD-160702264L.A8
160702264L
|
£40.80
|
£48.96
|
|
|
4 - ELECTRONICS MODULE
BSD-1619P10653.A3
1619P10653
|
£52.15
|
£62.58
|
|
|
9 - MANUFACTURER'S NAMEPLATE GKS 12V-26
BSD-1619P14287.A0
1619P14287
|
£2.74
|
£3.29
|
|
|
13 - GROOVE BALL BEARING
BSD-1619P10733.A1
1619P10733
|
£2.80
|
£3.36
|
|
|
14 - GEAR
BSD-1619P10731.A1
1619P10731
|
£11.30
|
£13.56
|
|
|
22 - HANDLE
BSD-1619P10721.A1
1619P10721
|
£12.04
|
£14.45
|
|
|
23 - UPPER GUARD
BSD-1619P10719.A0
1619P10719
|
£20.42
|
£24.51
|
|
|
24 - LOWER GUARD
BSD-1619P10722.A2
1619P10722
|
£5.57
|
£6.68
|
|
|
25 - BASE PLATE
BSD-1600A00XR3.A1
1600A00XR3
|
£13.12
|
£15.75
|
|
|
26 - END CAP
BSD-1619P10724.A0
1619P10724
|
£2.74
|
£3.29
|
|
|
27 - HINGE BRACKET
BSD-1619P10725.A1
1619P10725
|
£2.16
|
£2.59
|
|
|
28 - SUPPORT BRACKET
BSD-1619P10726.A8
1619P10726
|
£2.61
|
£3.13
|
|
|
31 - BUMPER
BSD-1619P10728.A9
1619P10728
|
£1.84
|
£2.21
|
|
|
38 - GEAR SHAFT
BSD-1619P10735.A1
1619P10735
|
£12.04
|
£14.45
|
|
|
39 - GEAR
BSD-1619P10732.A8
1619P10732
|
£12.64
|
£15.17
|
|
|
41 - GROOVE BALL BEARING
BSD-1619P10734.A8
1619P10734
|
£3.72
|
£4.47
|
|
|
42 - BUSHING
BSD-1619P10729.A2
1619P10729
|
£1.84
|
£2.21
|
|
|
43 - SHAFT
BSD-1619P10730.A7
1619P10730
|
£6.85
|
£8.22
|
|
|
44 - GEAR
BSD-1619P10736.A8
1619P10736
|
£11.30
|
£13.56
|
|
|
45 - BALL BEARING
BSD-1619P06024.A4
1619P06024
|
£10.61
|
£12.73
|
|
|
48 - COMPRESSION SPRING
BSD-1619P10738.A7
1619P10738
|
£1.75
|
£2.10
|
|
|
49 - GUIDE BRACKET
BSD-1619P10727.A2
1619P10727
|
£5.57
|
£6.68
|
|
|
50 - LOCKING SLIDE
BSD-1619P10739.A1
1619P10739
|
£3.91
|
£4.69
|
|
|
51 - COMPRESSION SPRING
BSD-2610935251.A14
2610935251
|
£1.75
|
£2.10
|
|
|
53 - BEARING FLANGE
BSD-1619P10720.A8
1619P10720
|
£11.30
|
£13.56
|
|
|
55 - TRIGGER
BSD-1619P10741.A1
1619P10741
|
£3.91
|
£4.69
|
|
|
56 - EXTENSION SPRING
BSD-1619P10742.A5
1619P10742
|
£1.75
|
£2.10
|
|
|
57 - STICKER
BSD-1619P10834.A1
1619P10834
|
£2.74
|
£3.29
|
|
|
61 - HEXAGON SOCKET WRENCH
BSD-1619P11420.A3
1619P11420
|
£2.27
|
£2.72
|
|
|
64 - SLOTTED SPRING PIN
BSD-2917760151.A6
2917760151
|
£2.16
|
£2.59
|
|
|
65 - RIVET
BSD-1619P06968.A8
1619P06968
|
£1.84
|
£2.21
|
|
|
67 - PROTECTION COVER
BSD-1619P10740.A0
1619P10740
|
£9.49
|
£11.39
|
|
|
68 - RETAINING RING
BSD-1619P10737.A1
1619P10737
|
£1.75
|
£2.10
|
|
|
69 - NUT
BSD-1619P10828.A3
1619P10828
|
£2.27
|
£2.72
|
|
|
70 - CLIP
BSD-1619P08646.A10
1619P08646
|
£1.75
|
£2.10
|
|
|
71 - O-RING 14.0x1.3 MM
BSD-3600210014.A1
3600210014
|
£1.84
|
£2.21
|
|
|
72 - WING SCREW
BSD-1619P01618.A10
1619P01618
|
£2.41
|
£2.89
|
|
|
73 - HEX SOCKET HEAD CAP SCREW
BSD-1619P11432.A8
1619P11432
|
£1.75
|
£2.10
|
|
|
74 - TORX OVAL-HEAD SCREW 3x10
BSD-1619P00220.A131
1619P00220
|
£1.75
|
£2.10
|
|
|
75 - THREAD-FORMING TAP. SCREW
BSD-1619P11431.A1
1619P11431
|
£1.84
|
£2.21
|
|
|
76 - THREAD-FORMING TAP. SCREW
BSD-1619P07546.A5
1619P07546
|
£1.75
|
£2.10
|
|
|
77 - THREAD-FORMING TAP. SCREW
BSD-1613435023.A63
1613435023
|
£1.84
|
£2.21
|
|
|
78 - BEARING BOLT
BSD-2603201020.A70
2603201020
|
£1.84
|
£2.21
|
|
|
79 - PLAIN WASHER
BSD-1619P11626.A7
1619P11626
|
£1.84
|
£2.21
|
|
|
84 - WASHER
BSD-1619P13104.A3
1619P13104
|
£1.84
|
£2.21
|
|
|
85 - RETAINING WASHER
BSD-1619P10745.A4
1619P10745
|
£2.74
|
£3.29
|
|
|
651 - BATTERY PACK GBA 12V 2.0Ah Li SCM
BSD-1607A350C5.A28
1607A350C5
|
-
|
|
|
|
651 - BATTERY PACK 12V. 2.5Ah. LI GBA
BSD-1607A35049.A14
1607A35049
|
£65.08
|
£78.10
|
|
|
651 - BATTERY PACK GBA 12V 3.0 Ah Li
BSD-1607A3506A.A8
1607A3506A
|
£75.79
|
£90.95
|
|
|
653 - FAST CHARGER EU GAL 1230 CV 230/12V
BSD-2607226101.A7
2607226101
|
£66.68
|
£80.01
|
|
|
653 - FAST CHARGER GB GAL 1230 CV 230/12V
BSD-2607226105.A23
2607226105
|
-
|
|
|
|
802 - MOTOR ASSEMBLY
BSD-1619P11483.A3
1619P11483
|
£39.13
|
£46.96
|
|
|
808 - NAMEPLATE
BSD-1619P14308.A0
1619P14308
|
£2.74
|
£3.29
|
|
|
825 - BASEPLATE COMPLETE
BSD-1619P11485.A1
1619P11485
|
£25.05
|
£30.06
|
|
|
844 - SPINDLE ASSEMBLY
BSD-1619P11484.A6
1619P11484
|
£31.64
|
£37.97
|
|
|
873 - PARALLEL-GUIDE
BSD-1619P11536.A1
1619P11536
|
£10.61
|
£12.73
|
|
|
873/1 - SUCTION NOZZLE
BSD-1619P11537.A0
1619P11537
|
£13.78
|
£16.54
|
|
