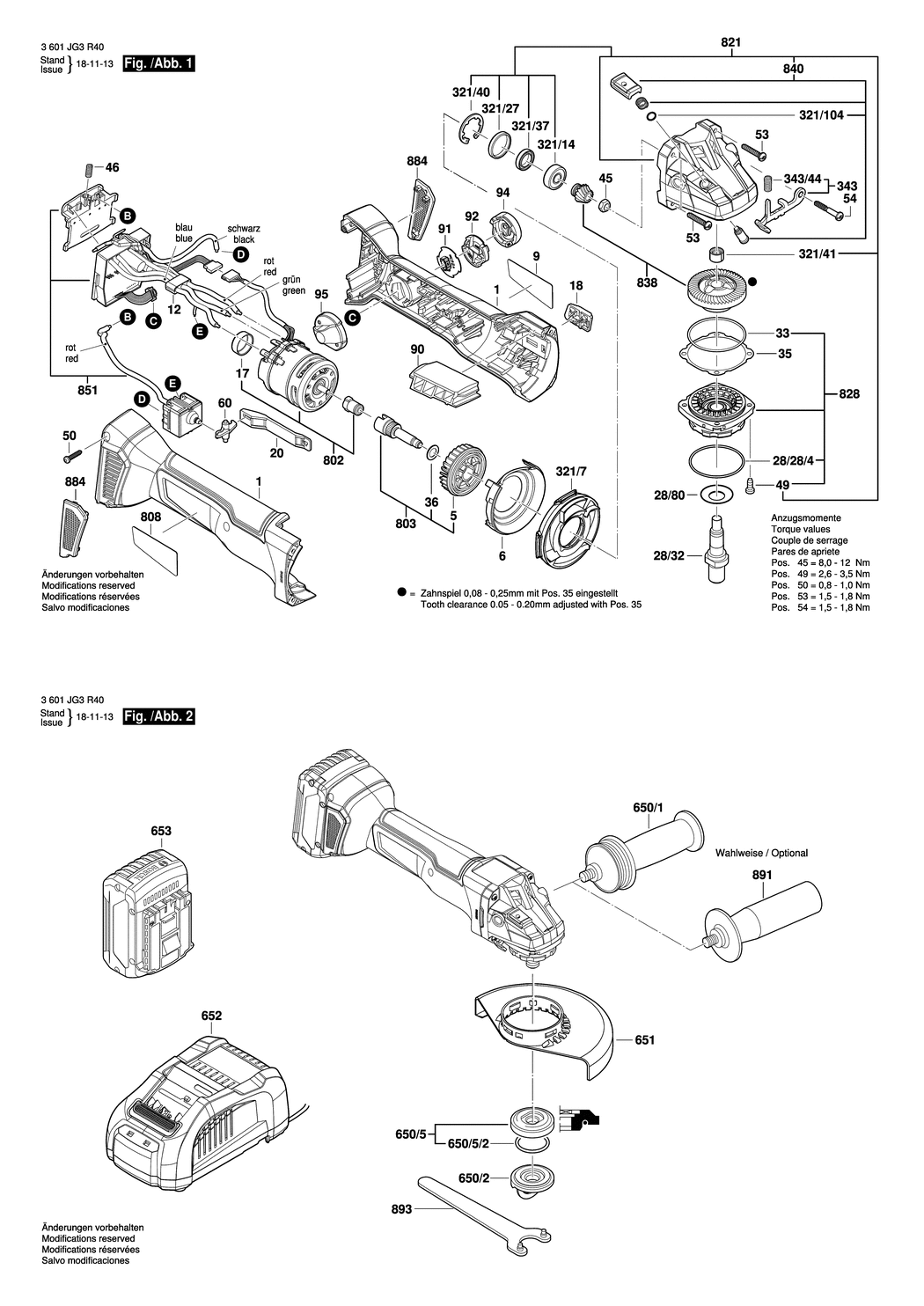

1 - MOTOR HOUSING
BSD-16051082JM.A0
16051082JM
|
-
|
|
|
|
5 - FAN
BSD-160661016E.A6
160661016E
|
£2.94
|
£3.53
|
|
|
6 - AIR-DEFLECTOR RING
BSD-1600591065.A19
1600591065
|
£2.74
|
£3.29
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-160111C2L2.A0
160111C2L2
|
-
|
|
|
|
12 - FERRITE
BSD-1600A00RK2.A10
1600A00RK2
|
£2.16
|
£2.59
|
|
|
17 - COVER
BSD-1600100P12.A4
1600100P12
|
£1.84
|
£2.21
|
|
|
18 - SWITCH HANDLE
BSD-1602026091.A63
1602026091
|
£1.84
|
£2.21
|
|
|
20 - ADJUSTING SLIDE
BSD-1600A00P14.A6
1600A00P14
|
£1.75
|
£2.10
|
|
|
28/28/4 - O-RING 47.0x1.5 MM
BSD-3600210109.A209
3600210109
|
£2.27
|
£2.72
|
|
|
28/32 - GRINDING SPINDLE
BSD-1607000D6A.A140
1607000D6A
|
£7.36
|
£8.83
|
|
|
28/80 - SEALING DISK
BSD-3600150021.A234
3600150021
|
£3.99
|
£4.79
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-1600210035.A266
1600210035
|
£1.84
|
£2.21
|
|
|
35 - SHIM 0.1 MM
BSD-1600136013.A506
1600136013
|
£2.74
|
£3.29
|
|
|
35 - SHIM 0.2 MM
BSD-1600136014.A14
1600136014
|
£2.74
|
£3.29
|
|
|
35 - SHIM 0.3 MM
BSD-1600136015.A506
1600136015
|
£2.74
|
£3.29
|
|
|
35 - SHIM 0.15 MM
BSD-1600136020.A16
1600136020
|
£3.72
|
£4.47
|
|
|
36 - WASHER
BSD-1610100023.A0
1610100023
|
£1.84
|
£2.21
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A314
1603300016
|
£1.84
|
£2.21
|
|
|
46 - COMPRESSION SPRING
BSD-1609280477.A166
1609280477
|
£1.84
|
£2.21
|
|
|
49 - THREAD-FORMING TAP. SCREW M4x16
BSD-2914491410.A202
2914491410
|
£1.84
|
£2.21
|
|
|
50 - THREAD-FORMING TAP. SCREW
BSD-1603435071.A11
1603435071
|
£1.84
|
£2.21
|
|
|
53 - TORX OVAL-HEAD SCREW
BSD-1603435078.A33
1603435078
|
£1.84
|
£2.21
|
|
|
54 - TORX OVAL-HEAD SCREW 4x30
BSD-1603414026.A14
1603414026
|
£1.84
|
£2.21
|
|
|
60 - REVERSE-TRANSFER LEVER
BSD-1600A00P18.A6
1600A00P18
|
£1.84
|
£2.21
|
|
|
90 - COVER
BSD-1600A017B1.A0
1600A017B1
|
-
|
|
|
|
91 - ELECTRONICS MODULE
BSD-1607503438.A4
1607503438
|
£14.91
|
£17.89
|
|
|
92 - COVER PANEL
BSD-1600A00M53.A14
1600A00M53
|
£1.84
|
£2.21
|
|
|
94 - COVER
BSD-16055002FV.A0
16055002FV
|
-
|
|
|
|
95 - COVER
BSD-1600A00P1B.A11
1600A00P1B
|
£1.84
|
£2.21
|
|
|
321/7 - AIR DISTRIBUTOR
BSD-160059105N.A4
160059105N
|
£2.16
|
£2.59
|
|
|
321/14 - GROOVE BALL BEARING 8x22x7
BSD-1600905032.A202
1600905032
|
£5.58
|
£6.70
|
|
|
321/27 - RUBBER RING
BSD-1600206025.A844
1600206025
|
£2.16
|
£2.59
|
|
|
321/37 - HOLDER
BSD-1600A00P17.A9
1600A00P17
|
£1.75
|
£2.10
|
|
|
321/40 - RETAINING CLIP
BSD-1600119011.A440
1600119011
|
£2.27
|
£2.72
|
|
|
321/41 - PLAIN BEARING
BSD-1600200029.A126
1600200029
|
£4.48
|
£5.37
|
|
|
321/104 - O-RING 4.5x1.0 MM
BSD-1600210044.A40
1600210044
|
£1.84
|
£2.21
|
|
|
343 - CATCH LEVER
BSD-1607000742.A218
1607000742
|
£7.72
|
£9.27
|
|
|
343/44 - COMPRESSION SPRING
BSD-1604611042.A4
1604611042
|
£1.84
|
£2.21
|
|
|
650/1 - AUXILIARY HANDLE
BSD-160202509U.A0
160202509U
|
-
|
|
|
|
650/2 - QUICK ACTING FLANGE
BSD-1600A017EK.A0
1600A017EK
|
-
|
|
|
|
650/5 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A1343
2605703014
|
£7.72
|
£9.27
|
|
|
650/5/2 - O-RING 20.35x1.78 MM
BSD-1600210055.A5
1600210055
|
-
|
|
|
|
651 - PROTECTIVE COVER dia 125 MM
BSD-1605510384.A9
1605510384
|
£17.22
|
£20.67
|
|
|
802 - MOTOR
BSD-1607000CA4.A2
1607000CA4
|
£98.57
|
£118.28
|
|
|
803 - BEVEL GEAR SHAFT
BSD-1607000CA5.A19
1607000CA5
|
£12.64
|
£15.17
|
|
|
808 - NAMEPLATE
BSD-160111A6AG.A0
160111A6AG
|
-
|
|
|
|
821 - GEAR HOUSING
BSD-16058065U4.A0
16058065U4
|
-
|
|
|
|
828 - BEARING FLANGE
BSD-1607000D6D.A18
1607000D6D
|
£14.91
|
£17.89
|
|
|
838 - GEAR UNIT
BSD-1607000CA8.A8
1607000CA8
|
£20.42
|
£24.51
|
|
|
840 - PUSH-BUTTON
BSD-1600A0071B.A2
1600A0071B
|
£2.16
|
£2.59
|
|
|
851 - ELECTRONICS MODULE
BSD-1607000D5V.A1
1607000D5V
|
£102.57
|
£123.08
|
|
|
884 - FILTER UNIT
BSD-1607000CA9.A4
1607000CA9
|
£11.87
|
£14.24
|
|
|
891 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A1036
160202509T
|
£3.91
|
£4.69
|
|
|
893 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A272
1607950052
|
£3.91
|
£4.69
|
|
