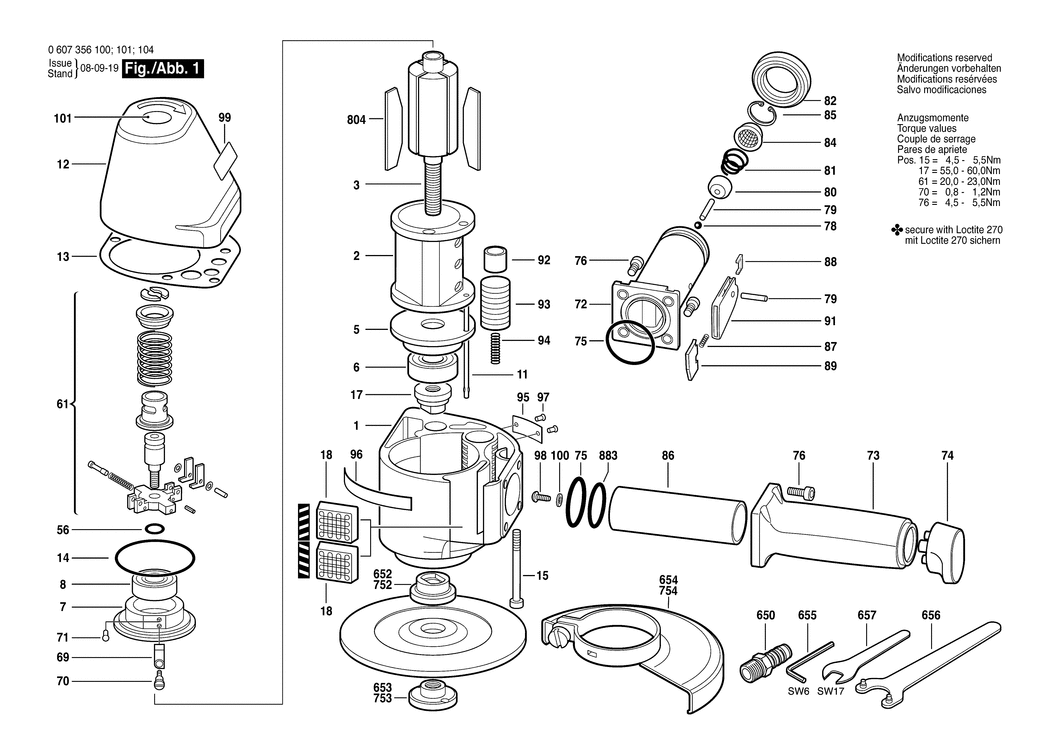

1 - MOTOR HOUSING
BSD-3605102005.A3
3605102005
|
-
|
|
|
|
2 - STATOR 3.5KW
BSD-3604090032.A4
3604090032
|
£186.77
|
£224.12
|
|
|
3 - ROTOR
BSD-3604220015.A0
3604220015
|
£208.91
|
£250.69
|
|
|
5 - BEARING FLANGE
BSD-3605700026.A9
3605700026
|
£81.81
|
£98.17
|
|
|
6 - GROOVE BALL BEARING 6303-2 Z DIN 625
BSD-1900905326.A7
1900905326
|
£27.23
|
£32.68
|
|
|
7 - BEARING FLANGE
BSD-3605700025.A0
3605700025
|
£129.38
|
£155.25
|
|
|
8 - GROOVE BALL BEARING 20x42x12
BSD-1900905119.A2
1900905119
|
-
|
|
|
|
11 - STRAIGHT PIN
BSD-3604710017.A0
3604710017
|
£7.36
|
£8.83
|
|
|
12 - UPPER HOUSING
BSD-3605102006.A4
3605102006
|
-
|
|
|
|
13 - SEAL
BSD-3600034000.A8
3600034000
|
£4.26
|
£5.11
|
|
|
14 - O-RING 74.0x3.0 MM
BSD-1600210006.A56
1600210006
|
£1.66
|
£1.99
|
|
|
15 - HEX SOCKET HEAD CAP SCREW M 5x65 DIN 912-8.8
BSD-2910141179.A7
2910141179
|
£5.30
|
£6.36
|
|
|
17 - THREADED BUSHING
BSD-3600363001.A3
3600363001
|
-
|
|
|
|
18 - SILENCER
BSD-3602307000.A3
3602307000
|
£2.80
|
£3.36
|
|
|
56 - O-RING 15x2.5 MM
BSD-1900210113.A20
1900210113
|
£2.33
|
£2.80
|
|
|
61 - FLYWEIGHT ASSEMBLY
BSD-3607021009.A0
3607021009
|
-
|
|
|
|
69 - THROTTLE FLAP
BSD-3601036000.A1
3601036000
|
£2.80
|
£3.36
|
|
|
70 - PAN HEAD SCREW DIN 923-M3x8-5.8
BSD-2910271050.A2
2910271050
|
£2.33
|
£2.80
|
|
|
71 - ROUND-HEAD GROOVED PIN DIN 1476-2x3-St
BSD-2917721031.A94
2917721031
|
£1.66
|
£1.99
|
|
|
72 - HANDLE
BSD-3605132000.A7
3605132000
|
£72.18
|
£86.62
|
|
|
73 - HANDLE
BSD-3605132001.A2
3605132001
|
£16.41
|
£19.69
|
|
|
74 - SEALING CAP
BSD-3600508001.A5
3600508001
|
£5.58
|
£6.70
|
|
|
75 - O-RING 40x2.5 MM
BSD-1900210342.A6
1900210342
|
-
|
|
|
|
76 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x12-8.8
BSD-2910141154.A76
2910141154
|
£1.66
|
£1.99
|
|
|
78 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A326
1903230007
|
£1.66
|
£1.99
|
|
|
79 - NEEDLE ROLLER DIN5402-A3.5x34.8-G2
BSD-1903201064.A15
1903201064
|
£3.72
|
£4.47
|
|
|
80 - VALVE BODY
BSD-3603231001.A3
3603231001
|
£2.80
|
£3.36
|
|
|
81 - COMPRESSION SPRING
BSD-3604643006.A3
3604643006
|
£2.80
|
£3.36
|
|
|
82 - BACKUP RING
BSD-3600290000.A4
3600290000
|
£14.91
|
£17.89
|
|
|
84 - STRAINER
BSD-3600002005.A36
3600002005
|
£2.80
|
£3.36
|
|
|
85 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916661008.A3
2916661008
|
-
|
|
|
|
86 - SCREENING TUBE
BSD-3600409001.A9
3600409001
|
£6.52
|
£7.83
|
|
|
87 - COMPRESSION SPRING
BSD-3604612003.A6
3604612003
|
£1.95
|
£2.34
|
|
|
88 - HOLDING BRACKET
BSD-3601320000.A6
3601320000
|
£1.66
|
£1.99
|
|
|
89 - LOCK BOLT
BSD-3601000000.A4
3601000000
|
£1.95
|
£2.34
|
|
|
91 - CONTROL LEVER
BSD-3601902002.A3
3601902002
|
£5.30
|
£6.36
|
|
|
92 - POWER PISTON
BSD-3603200003.A6
3603200003
|
£23.86
|
£28.63
|
|
|
93 - CONTROL PISTON
BSD-3608750008.A3
3608750008
|
£21.68
|
£26.01
|
|
|
94 - COMPRESSION SPRING
BSD-3604611013.A3
3604611013
|
£1.95
|
£2.34
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A85
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - STICKER
BSD-1601110046.A96
1601110046
|
£1.66
|
£1.99
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A244
3603133000
|
£1.95
|
£2.34
|
|
|
98 - TAPPING SCREW B 4.2x16 DIN 7981-B2
BSD-2918140026.A2
2918140026
|
£1.66
|
£1.99
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1456
3601119236
|
£3.72
|
£4.47
|
|
|
100 - PLAIN WASHER
BSD-1600100629.A5
1600100629
|
£1.66
|
£1.99
|
|
|
101 - REFERENCE PLATE
BSD-3601119253.A3
3601119253
|
-
|
|
|
|
650 - HOSE FITTING
BSD-3603386004.A3
3603386004
|
£11.30
|
£13.56
|
|
|
654 - PROTECTIVE COVER
BSD-2605510108.A0
2605510108
|
£72.18
|
£86.62
|
|
|
655 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A398
1907950007
|
£5.30
|
£6.36
|
|
|
656 - PIN-TYPE FACE-WRENCH
BSD-1607950061.A164
1607950061
|
£5.42
|
£6.50
|
|
|
657 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A899
2607950511
|
£4.26
|
£5.11
|
|
|
752 - CLAMPING-FLANGE dia45 MM
BSD-2600501006.A288
2600501006
|
£16.41
|
£19.69
|
|
|
753 - ROUND NUT M14
BSD-2603345004.A305
2603345004
|
£6.52
|
£7.83
|
|
|
754 - PROTECTIVE COVER dia 180 MM
BSD-3605510008.A0
3605510008
|
-
|
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030280.A3
3607030280
|
£46.37
|
£55.64
|
|
|
883 - PARTS SET
BSD-3607010026.A12
3607010026
|
£8.67
|
£10.41
|
|
