Bosch ---- / 0607950928 / --- Spare Parts

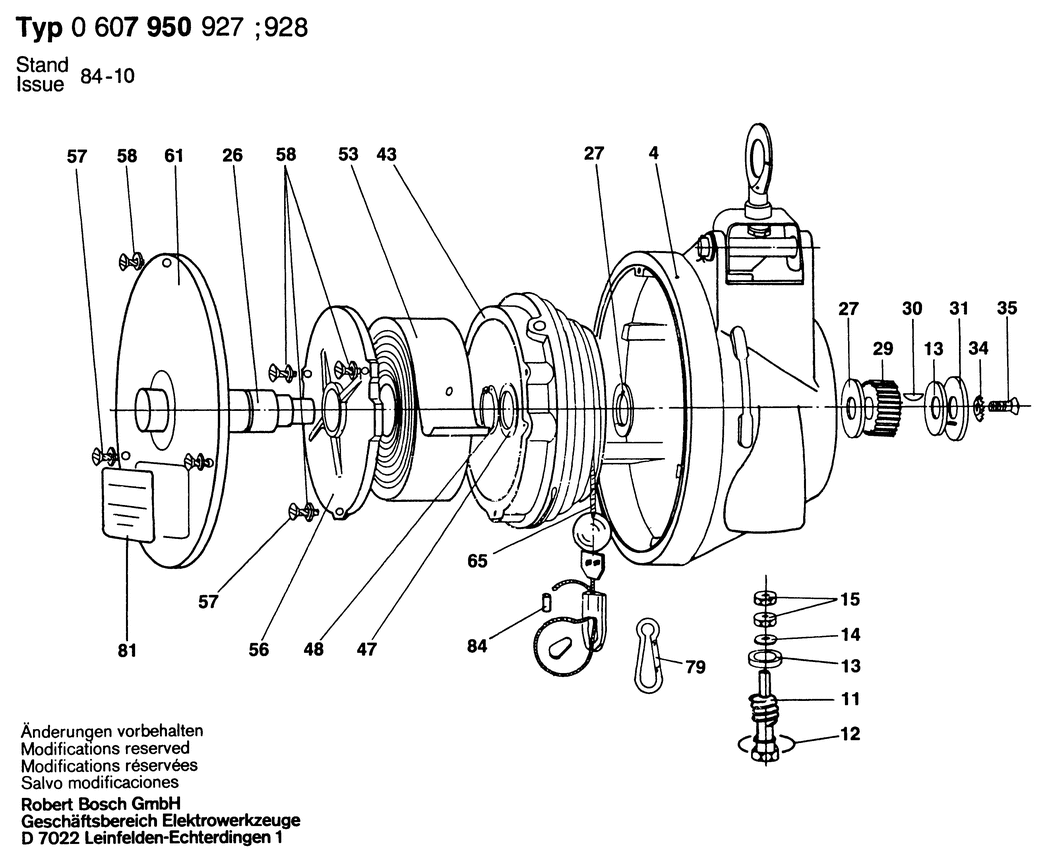

An exploded drawing and listing for the Bosch ---- / 0607950928 / ---

	Ex VAT	Inc VAT
4 - HOUSING BSD-3609200391.A0 3609200391	-
11 - WORM BSD-3609200372.A0 3609200372	-
12 - RETAINING SNAP RING BSD-3609200476.A1 3609200476	-
13 - PLAIN WASHER BSD-3609200373.A1 3609200373	£5.01	£6.01
14 - PLAIN WASHER 8.4 DIN 433-ST BSD-2916011015.A13 2916011015	£1.75	£2.10
15 - HEX NUT DIN 439-BM8-04 BSD-2915051107.A55 2915051107	£1.75	£2.10
26 - AXLE BSD-3609200374.A0 3609200374	-
27 - SHIM WASHER BSD-3609200375.A1 3609200375	-
29 - WORM WHEEL BSD-3609200376.A0 3609200376	-
30 - WOODRUFF KEY DIN 6888-4x5-ST60-2 BSD-1900023006.A32 1900023006	£2.61	£3.13
31 - COVER DISC BSD-3609200377.A1 3609200377	-
34 - TOOTHED LOCK WASHER V 5.3 DIN 6797 BSD-2916050006.A1 2916050006	-
35 - RAISED COUNTERS HEAD SCRE DIN 966-M5x12-4.8 BSD-2910890154.A1 2910890154	-
43 - ROPE DRUM BSD-3609200420.A1 3609200420	-
47 - PLAIN WASHER BSD-3609200380.A0 3609200380	-
48 - SPRING RETAINING RING DIN 471-24x12-FSt BSD-2916650013.A0 2916650013	-
53 - SPIRAL SPRING BSD-3609200437.A0 3609200437	-
56 - COVER PLATE BSD-3609200434.A0 3609200434	-
57 - RAISED COUNTERS HEAD SCRE DIN 966-M4x12-4.8 BSD-2910890122.A0 2910890122	-
58 - TOOTHED LOCK WASHER DIN 6797-V4.3-FSt BSD-2916050005.A4 2916050005	-
61 - HOUSING COVER BSD-3609200435.A1 3609200435	-
65 - CABLE CONTROL BSD-3609200384.A0 3609200384	£93.88	£112.65
79 - SPRING HOOK BSD-3609200477.A2 3609200477	£21.52	£25.83
81 - NAMEPLATE BSD-3609200440.A0 3609200440	-
84 - CLAMPING PIECE BSD-3609200478.A2 3609200478	£2.80	£3.36
99 - REFERENCE PLATE BSD-3601119236.A432 3601119236	£3.72	£4.47
850 - HOLDING PLATE BSD-3609200371.A0 3609200371	-

Attribute Name	Value
Brand	Bosch
