Bosch 370 WATT-SERIE / 0607958812 / --- Spare Parts

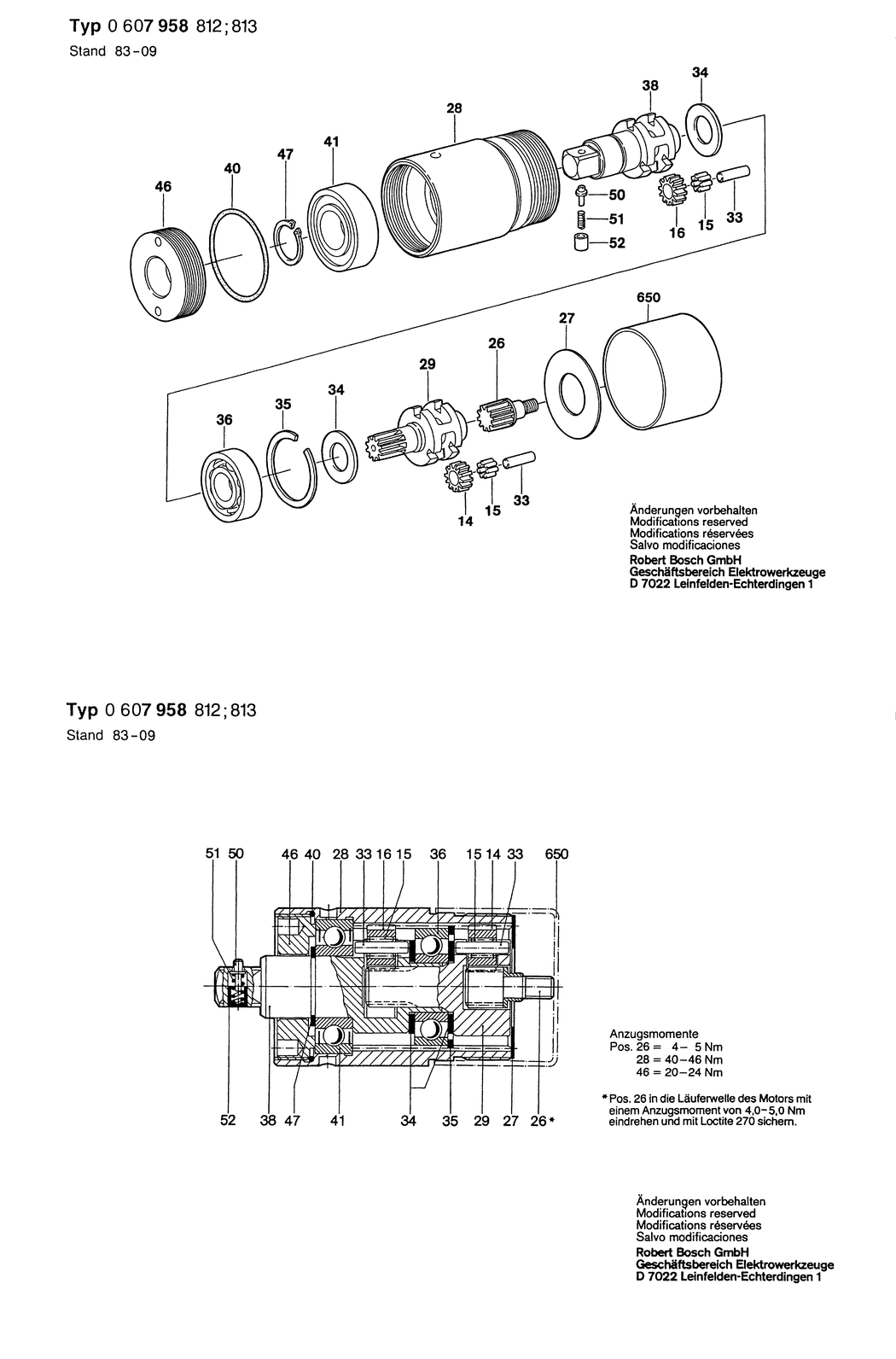

An exploded drawing and listing for the Bosch 370 WATT-SERIE / 0607958812 / ---

	Ex VAT	Inc VAT
14 - CYLINDRICAL GEAR BSD-3606316101.A18 3606316101	£21.68	£26.01
15 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A193 3600913000	£4.26	£5.11
16 - CYLINDRICAL GEAR Z=16 BSD-3606316099.A27 3606316099	£21.68	£26.01
26 - PINION BSD-3606300164.A4 3606300164	£37.27	£44.72
27 - STOP DISC BSD-3600101001.A111 3600101001	£2.61	£3.13
28 - RING GEAR Z=49 BSD-3606334000.A0 3606334000	£102.57	£123.08
29 - PLANETARY-GEAR CARRIER BSD-3606337003.A19 3606337003	£81.81	£98.17
33 - NEEDLE ROLLER BSD-3603201000.A404 3603201000	£1.75	£2.10
34 - SHIM WASHER BSD-3600103002.A84 3600103002	£3.72	£4.47
35 - RETAINING RING BSD-3600224000.A53 3600224000	£1.75	£2.10
36 - GROOVE BALL BEARING 12x28x8 BSD-1900900287.A257 1900900287	£21.68	£26.01
38 - PLANETARY-GEAR CARRIER BSD-3606337101.A6 3606337101	-
40 - PARTS SET BSD-3607010007.A27 3607010007	£18.96	£22.75
41 - GROOVE BALL BEARING BSD-3600905027.A5 3600905027	£16.41	£19.69
46 - THREADED RING BSD-3603344007.A1 3603344007	-
47 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A137 2916650006	£1.75	£2.10
650 - PROTECTIVE CAP BSD-3600508006.A15 3600508006	£1.32	£1.58

Attribute Name	Value
Brand	Bosch
