Bosch 300 WATT-SERIE / 0607661507 / --- Spare Parts

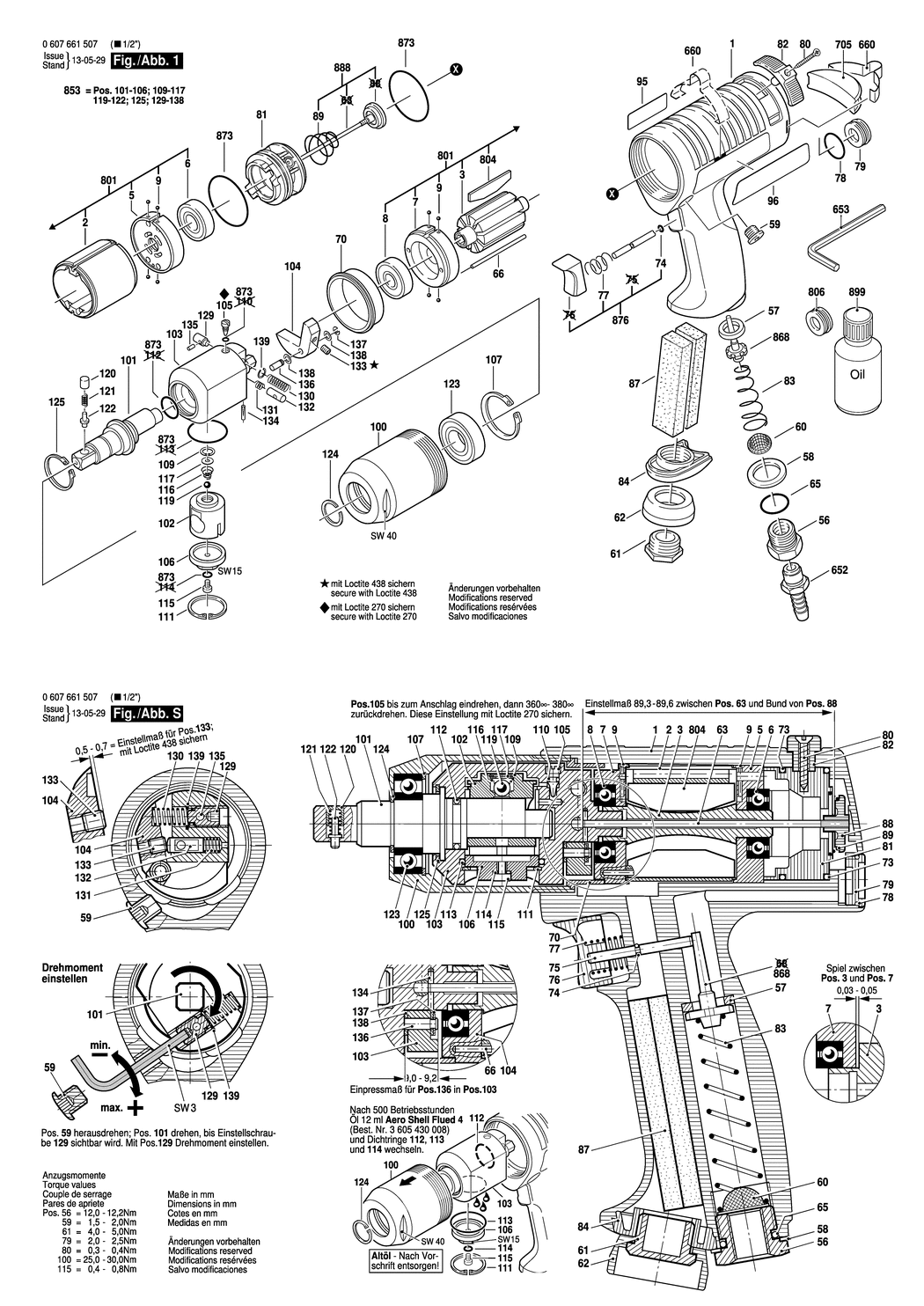

An exploded drawing and listing for the Bosch 300 WATT-SERIE / 0607661507 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108171.A3 3605108171	£156.22	£187.46
2 - STATOR 250-300W BSD-3604090057.A3 3604090057	£63.50	£76.20
3 - ROTOR BSD-3604220097.A2 3604220097	£156.22	£187.46
5 - BEARING FLANGE BSD-3605700210.A2 3605700210	£63.50	£76.20
6 - GROOVE BALL BEARING 10x26x8 BSD-1900905127.A48 1900905127	£27.23	£32.68
7 - BEARING FLANGE BSD-3605700211.A3 3605700211	£72.18	£86.62
8 - GROOVE BALL BEARING 12x28x8 BSD-1900905121.A410 1900905121	£18.96	£22.75
9 - BALL 1.5 MMIIIDIN 5401-ST BSD-1903230026.A18 1903230026	£1.75	£2.10
56 - FITTING BSD-3603462007.A2 3603462007	£7.36	£8.83
57 - SEALING DISK BSD-3600206005.A55 3600206005	£5.30	£6.36
58 - SHIM WASHER BSD-3600105001.A60 3600105001	£1.75	£2.10
59 - SCREW PLUG BSD-3603414020.A3 3603414020	£12.04	£14.45
60 - STRAINER BSD-3600002006.A6 3600002006	£3.72	£4.47
61 - SILENCER BSD-3603462000.A57 3603462000	£16.41	£19.69
62 - SCREENING RING BSD-3600521002.A3 3600521002	£2.80	£3.36
65 - O-RING 15x2 MM BSD-1900210112.A35 1900210112	£2.61	£3.13
66 - STRAIGHT PIN BSD-3603201055.A8 3603201055	£2.80	£3.36
70 - INTERMEDIATE RING BSD-3600206016.A1 3600206016	£37.27	£44.72
74 - O-RING 1.8x1.2 MM BSD-3600210105.A1 3600210105	£2.61	£3.13
77 - COMPRESSION SPRING BSD-3604610016.A22 3604610016	£10.10	£12.12
78 - O-RING 16.0x1.0 MM BSD-3600210104.A25 3600210104	£1.75	£2.10
79 - SCREW PLUG BSD-3600313011.A23 3600313011	£3.72	£4.47
80 - TAPPING SCREW DIN 7982-ST2.9x19 BSD-2910601408.A3 2910601408	£1.75	£2.10
81 - HOUSING BSD-3608750041.A2 3608750041	£4.26	£5.11
82 - CHANGEOVER LEVER BSD-3602000001.A2 3602000001	£3.72	£4.47
83 - COMPRESSION SPRING BSD-3604643016.A2 3604643016	£5.30	£6.36
84 - HOUSING COVER BSD-3605500147.A25 3605500147	£6.52	£7.83
87 - SILENCER BSD-3601010010.A133 3601010010	£2.16	£2.59
89 - COMPRESSION SPRING BSD-3604610043.A4 3604610043	£2.80	£3.36
92 - REFERENCE PLATE BSD-3601110574.A79 3601110574	£2.61	£3.13
95 - NAMEPLATE BSD-160111A3HF.A160 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601110393.A2 3601110393	£4.26	£5.11
99 - REFERENCE PLATE BSD-3601119236.A1322 3601119236	£3.72	£4.47
100 - HOUSING BSD-3600390033.A0 3600390033	£72.18	£86.62
101 - CAMSHAFT BSD-3603523037.A0 3603523037	£135.25	£162.30
102 - PISTON BSD-3608750046.A1 3608750046	£251.67	£302.00
103 - HOUSING BSD-3605110079.A1 3605110079	£357.27	£428.72
104 - FLYWEIGHT BSD-3602329031.A9 3602329031	£33.74	£40.49
105 - THROTTLE SCREW BSD-3603490020.A2 3603490020	£21.52	£25.83
106 - SEALING CAP BSD-3605500220.A0 3605500220	£31.64	£37.97
107 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A286 2916660014	£1.75	£2.10
109 - SPRING RETAINING RING DIN 472 8x0.8MM BSD-2916660041.A2 2916660041	£2.80	£3.36
111 - SPRING RETAINING RING BSD-3600118006.A2 3600118006	£2.61	£3.13
115 - SCREW BSD-3603400004.A2 3603400004	£8.67	£10.41
116 - COMPRESSION SPRING BSD-3604610044.A1 3604610044	£5.30	£6.36
117 - STOP DISC BSD-3600100015.A14 3600100015	£2.80	£3.36
119 - BALL DIN 5401-6 G28 BSD-1903230011.A256 1903230011	£2.61	£3.13
120 - GUIDE SLEEVE BSD-1600506009.A48 1600506009	£7.36	£8.83
121 - COMPRESSION SPRING BSD-1604611019.A57 1604611019	£2.80	£3.36
122 - DETENT PIN BSD-1603124085.A34 1603124085	£3.72	£4.47
123 - GROOVE BALL BEARING 17x35x10 BSD-3600905108.A0 3600905108	£14.91	£17.89
124 - RETAINING RING BSD-3600118007.A1 3600118007	£2.16	£2.59
125 - SPRING RETAINING RING BSD-3600118006.A3 3600118006	£2.61	£3.13
129 - ADJUSTING SCREW BSD-3603414021.A3 3603414021	£10.10	£12.12
130 - COMPRESSION SPRING BSD-3604610047.A3 3604610047	£3.72	£4.47
131 - COMPRESSION SPRING BSD-3604610007.A26 3604610007	£1.75	£2.10
132 - PISTON BSD-3608750044.A1 3608750044	£13.12	£15.75
133 - SET SCREW BSD-2603400011.A23 2603400011	£2.80	£3.36
134 - STRAIGHT PIN 5M2x10 DIN 6325 BSD-2917530036.A4 2917530036	£1.75	£2.10
135 - STRAIGHT PIN BSD-3603100031.A4 3603100031	£6.52	£7.83
136 - RETAINING PIN BSD-3603100032.A1 3603100032	£12.04	£14.45
137 - LOCKING WASHER BSD-3600224035.A4 3600224035	£1.75	£2.10
138 - SHIM 0.5 MM BSD-2600100510.A3 2600100510	£2.61	£3.13
139 - RETAINING RING BSD-3600119029.A4 3600119029	£3.72	£4.47
652 - HOSE FITTING BSD-2603386002.A203 2603386002	£5.30	£6.36
653 - OFFSET SCREWDRIVER DIN 911. SW3 BSD-1907950004.A119 1907950004	£5.58	£6.70
660 - SUSPENSION LOOP BSD-3601923017.A4 3601923017	£21.68	£26.01
705 - SUPPORT ELEMENT BSD-3603231006.A2 3603231006	£48.38	£58.06
801 - ASSEMBLY OF SERVICE PARTS BSD-3607030329.A5 3607030329	£458.51	£550.21
804 - ASSEMBLY OF SERVICE PARTS BSD-3607030331.A2 3607030331	£59.53	£71.44
806 - SCREW PLUG BSD-3609202745.A12 3609202745	-
853 - ASSEMBLY OF SERVICE PARTS BSD-3607030351.A0 3607030351	£1083.37	£1300.04
868 - VALVE CONE BSD-3608750042.A2 3608750042	£6.52	£7.83
873 - ASSEMBLY OF SERVICE PARTS BSD-3607030352.A0 3607030352	£11.30	£13.56
876 - ASSEMBLY OF SERVICE PARTS BSD-3607030332.A3 3607030332	£33.74	£40.49
888 - ASSEMBLY OF SERVICE PARTS BSD-3607030333.A2 3607030333	£37.27	£44.72
899 - OIL 1000 ML BSD-3605430008.A6 3605430008	£27.23	£32.68
