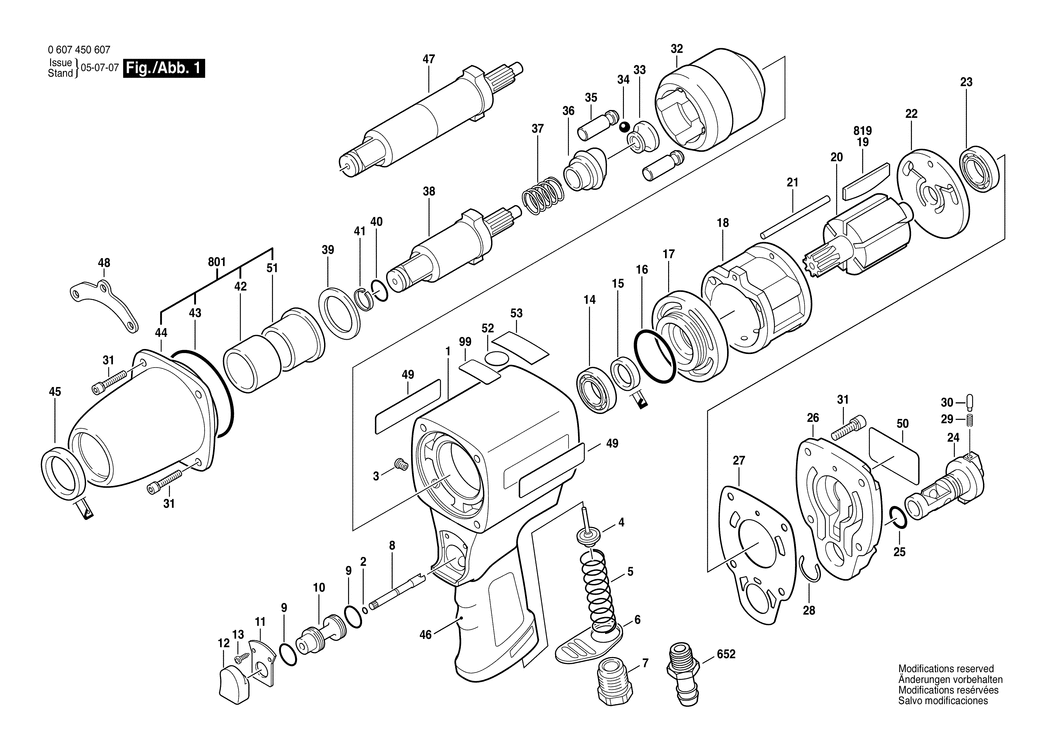

1 - HOUSING
BSD-3609202503.A0
3609202503
|
£243.45
|
£292.14
|
|
|
2 - O-RING
BSD-3609201400.A1
3609201400
|
£3.72
|
£4.47
|
|
|
3 - HEX SOCKET HEAD CAP SCREW
BSD-3609201088.A3
3609201088
|
£4.26
|
£5.11
|
|
|
4 - TAPPET
BSD-3609202506.A0
3609202506
|
£9.49
|
£11.39
|
|
|
5 - COMPRESSION SPRING
BSD-3609202507.A0
3609202507
|
£2.80
|
£3.36
|
|
|
6 - CONNECTING PIECE
BSD-3609202508.A0
3609202508
|
£6.52
|
£7.83
|
|
|
7 - FITTING
BSD-3609202509.A0
3609202509
|
£21.52
|
£25.83
|
|
|
8 - INTAKE VALVE
BSD-3609202510.A0
3609202510
|
£13.12
|
£15.75
|
|
|
9 - O-RING
BSD-3609202511.A0
3609202511
|
£4.26
|
£5.11
|
|
|
10 - VALVE BUSHING
BSD-3609202512.A0
3609202512
|
£18.96
|
£22.75
|
|
|
11 - SHEET METAL COVER
BSD-3609202513.A0
3609202513
|
£7.36
|
£8.83
|
|
|
12 - PUSH-BUTTON
BSD-3609202514.A0
3609202514
|
£10.10
|
£12.12
|
|
|
13 - SCREW
BSD-3609201398.A1
3609201398
|
£5.30
|
£6.36
|
|
|
14 - BALL BEARING
BSD-3609202516.A0
3609202516
|
£21.68
|
£26.01
|
|
|
15 - RADIAL SEAL
BSD-3609202517.A0
3609202517
|
£7.36
|
£8.83
|
|
|
16 - O-RING
BSD-3609202518.A0
3609202518
|
£4.26
|
£5.11
|
|
|
17 - BEARING FLANGE
BSD-3609202519.A0
3609202519
|
£63.50
|
£76.20
|
|
|
18 - STATOR
BSD-3609202520.A0
3609202520
|
£156.22
|
£187.46
|
|
|
20 - ROTOR
BSD-3609202522.A0
3609202522
|
£156.22
|
£187.46
|
|
|
21 - STRAIGHT PIN
BSD-3609202523.A0
3609202523
|
-
|
|
|
|
22 - BEARING FLANGE
BSD-3609202524.A0
3609202524
|
£54.42
|
£65.30
|
|
|
23 - GROOVE BALL BEARING
BSD-3609201078.A2
3609201078
|
£40.80
|
£48.96
|
|
|
24 - REVERSING SWITCH
BSD-3609202526.A0
3609202526
|
£31.64
|
£37.97
|
|
|
25 - O-RING
BSD-3609202527.A0
3609202527
|
£2.80
|
£3.36
|
|
|
26 - HOUSING COVER
BSD-3609202528.A0
3609202528
|
£48.38
|
£58.06
|
|
|
27 - SEALING PLATE
BSD-3609202529.A0
3609202529
|
£8.67
|
£10.41
|
|
|
28 - SPRING RETAINING RING
BSD-3609202530.A0
3609202530
|
£2.80
|
£3.36
|
|
|
29 - COMPRESSION SPRING
BSD-3609201407.A2
3609201407
|
£5.30
|
£6.36
|
|
|
30 - PIN
BSD-3609202415.A1
3609202415
|
£3.72
|
£4.47
|
|
|
31 - HEX SOCKET HEAD CAP SCREW
BSD-3609202533.A0
3609202533
|
£4.26
|
£5.11
|
|
|
32 - STRIKER HOLDER
BSD-3609202534.A0
3609202534
|
-
|
|
|
|
33 - BALL GUIDE
BSD-3609201216.A2
3609201216
|
£46.82
|
£56.18
|
|
|
34 - BALL
BSD-3609201054.A0
3609201054
|
£3.72
|
£4.47
|
|
|
35 - STRIKER PIN
BSD-3609202537.A0
3609202537
|
£31.64
|
£37.97
|
|
|
36 - CARRIER
BSD-3609201075.A2
3609201075
|
£154.03
|
£184.84
|
|
|
37 - COMPRESSION SPRING
BSD-3609202539.A0
3609202539
|
£5.58
|
£6.70
|
|
|
38 - STRIKER SPINDLE
BSD-3609202540.A0
3609202540
|
£218.41
|
£262.09
|
|
|
39 - PRESSURE DISK
BSD-3609202541.A0
3609202541
|
£14.91
|
£17.89
|
|
|
40 - O-RING
BSD-3609201049.A0
3609201049
|
£5.30
|
£6.36
|
|
|
41 - RETAINING SNAP RING
BSD-3609201072.A2
3609201072
|
£21.52
|
£25.83
|
|
|
42 - BUSHING
BSD-3609202732.A0
3609202732
|
£33.74
|
£40.49
|
|
|
43 - O-RING
BSD-3609202545.A0
3609202545
|
£10.10
|
£12.12
|
|
|
44 - MOTOR HOUSING
BSD-3609202733.A0
3609202733
|
£263.33
|
£316.00
|
|
|
45 - RADIAL SEAL
BSD-3609201067.A0
3609201067
|
£21.52
|
£25.83
|
|
|
46 - HANDLE
BSD-3609202548.A0
3609202548
|
£27.23
|
£32.68
|
|
|
47 - STRIKER SPINDLE
BSD-3609202549.A0
3609202549
|
£179.37
|
£215.24
|
|
|
48 - SUSPENSION LOOP
BSD-3609202550.A0
3609202550
|
£7.36
|
£8.83
|
|
|
49 - MANUFACTURER'S NAMEPLATE
BSD-3609202657.A0
3609202657
|
£3.34
|
£4.01
|
|
|
50 - NAMEPLATE
BSD-3609202660.A0
3609202660
|
£3.72
|
£4.47
|
|
|
51 - BUSHING
BSD-3609202734.A0
3609202734
|
£37.27
|
£44.72
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A336
3601119236
|
£3.72
|
£4.47
|
|
|
652 - HOSE FITTING
BSD-3609202662.A0
3609202662
|
-
|
|
|
|
801 - PARTS SET
BSD-3609202744.A0
3609202744
|
-
|
|
|
|
819 - SET OF CLUTCH PLATES
BSD-3609202736.A0
3609202736
|
£41.62
|
£49.95
|
|
