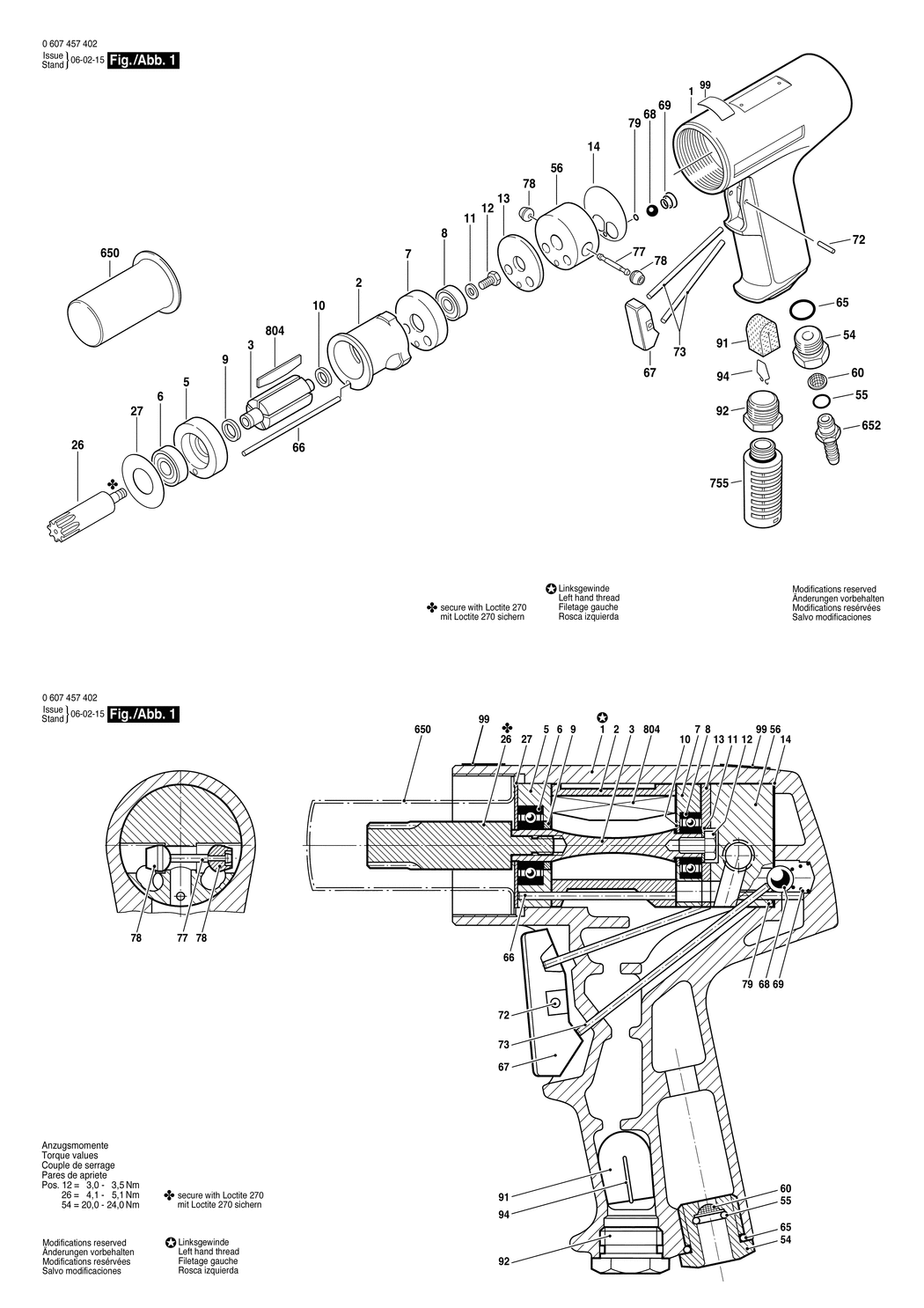

1 - MOTOR HOUSING
BSD-3605108225.A0
3605108225
|
£500.46
|
£600.55
|
|
|
2 - STATOR 740W
BSD-3604090023.A6
3604090023
|
£156.22
|
£187.46
|
|
|
3 - ROTOR
BSD-3604220021.A2
3604220021
|
£102.57
|
£123.08
|
|
|
5 - BEARING FLANGE
BSD-3605700014.A2
3605700014
|
£59.53
|
£71.44
|
|
|
6 - GROOVE BALL BEARING 10x26x8
BSD-1900905127.A94
1900905127
|
£27.23
|
£32.68
|
|
|
7 - BEARING FLANGE
BSD-3605700013.A10
3605700013
|
£48.38
|
£58.06
|
|
|
8 - BALL BEARING 8x22x7
BSD-1900905029.A47
1900905029
|
£21.52
|
£25.83
|
|
|
9 - SPACER RING
BSD-2600200007.A8
2600200007
|
£10.10
|
£12.12
|
|
|
10 - SPACER RING
BSD-3600202004.A16
3600202004
|
£11.30
|
£13.56
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A186
2916011012
|
£1.75
|
£2.10
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A7
2911061150
|
£2.61
|
£3.13
|
|
|
13 - ADJUSTING DISC
BSD-3600136000.A2
3600136000
|
£21.68
|
£26.01
|
|
|
14 - SEALING PLATE
BSD-3600031000.A16
3600031000
|
£2.16
|
£2.59
|
|
|
26 - PINION Z=8
BSD-3606300128.A0
3606300128
|
£102.57
|
£123.08
|
|
|
27 - STOP DISC
BSD-3600101004.A12
3600101004
|
£2.61
|
£3.13
|
|
|
54 - FITTING
BSD-3603458008.A92
3603458008
|
£8.67
|
£10.41
|
|
|
55 - O-RING 10x2 MM
BSD-1900210306.A58
1900210306
|
£1.75
|
£2.10
|
|
|
56 - VALVE INSERT
BSD-3605190015.A7
3605190015
|
£179.37
|
£215.24
|
|
|
60 - STRAINER
BSD-3600002000.A76
3600002000
|
£3.72
|
£4.47
|
|
|
65 - O-RING 15.6x1.8 MM
BSD-3600210003.A42
3600210003
|
£1.75
|
£2.10
|
|
|
66 - STRAIGHT PIN
BSD-3604710007.A16
3604710007
|
£10.10
|
£12.12
|
|
|
67 - CONTROL LEVER
BSD-3602053005.A2
3602053005
|
£14.91
|
£17.89
|
|
|
68 - BALL dia9 MM
BSD-3603230004.A34
3603230004
|
£3.72
|
£4.47
|
|
|
69 - COMPRESSION SPRING
BSD-3604616002.A75
3604616002
|
£2.16
|
£2.59
|
|
|
72 - STRAIGHT PIN 3M6x24 DIN 7-C35K
BSD-2917610083.A58
2917610083
|
£1.75
|
£2.10
|
|
|
73 - STRAIGHT PIN
BSD-3604710003.A52
3604710003
|
£6.52
|
£7.83
|
|
|
77 - HOLDING PIN
BSD-3603203006.A2
3603203006
|
£5.58
|
£6.70
|
|
|
78 - VALVE CONE
BSD-3603231000.A23
3603231000
|
£2.80
|
£3.36
|
|
|
79 - O-RING 1.8x1.0 MM
BSD-3600210002.A50
3600210002
|
£2.61
|
£3.13
|
|
|
91 - SILENCER
BSD-3601010001.A76
3601010001
|
£2.16
|
£2.59
|
|
|
92 - SILENCER
BSD-3603462000.A168
3603462000
|
£16.41
|
£19.69
|
|
|
94 - HOLDING SPRING
BSD-3601250003.A12
3601250003
|
£2.80
|
£3.36
|
|
|
95 - REFERENCE PLATE
BSD-3601110574.A18
3601110574
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A825
3601119236
|
£3.72
|
£4.47
|
|
|
650 - PROTECTIVE CAP
BSD-3600508034.A0
3600508034
|
-
|
|
|
|
652 - HOSE FITTING
BSD-2603386002.A76
2603386002
|
£5.30
|
£6.36
|
|
|
755 - SILENCER
BSD-3607000073.A2
3607000073
|
£18.96
|
£22.75
|
|
|
804 - PARTS SET
BSD-3607030254.A14
3607030254
|
£27.23
|
£32.68
|
|
