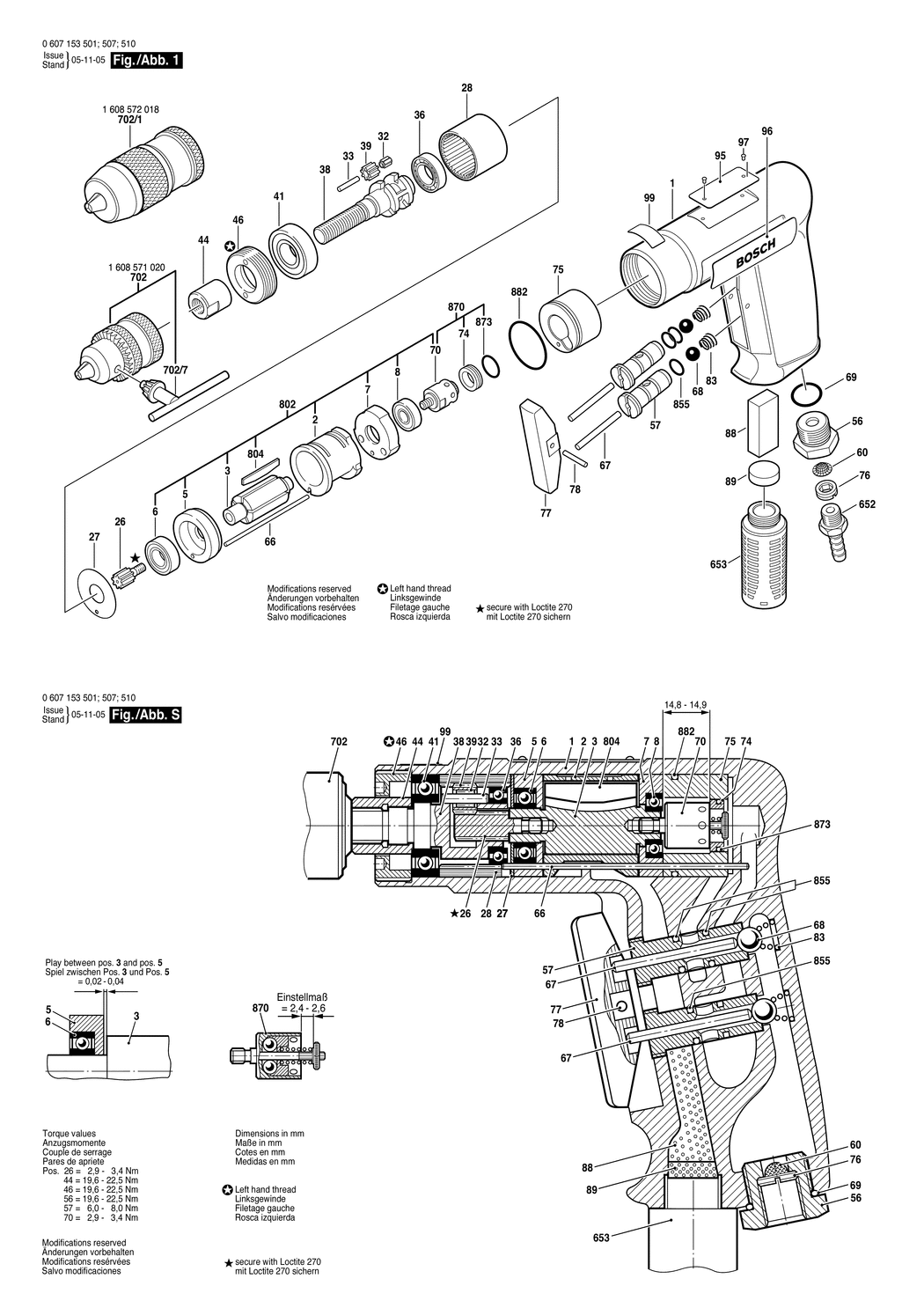

1 - MOTOR HOUSING
BSD-3605108029.A0
3605108029
|
-
|
|
|
|
2 - STATOR 180W
BSD-3604090011.A32
3604090011
|
£81.81
|
£98.17
|
|
|
3 - ROTOR
BSD-3604220009.A23
3604220009
|
£75.79
|
£90.95
|
|
|
5 - BEARING FLANGE
BSD-3605700015.A64
3605700015
|
£47.95
|
£57.54
|
|
|
6 - BALL BEARING 7x19x6
BSD-2600905032.A2292
2600905032
|
£5.57
|
£6.68
|
|
|
7 - BEARING FLANGE
BSD-3605700016.A19
3605700016
|
£59.53
|
£71.44
|
|
|
8 - GROOVE BALL BEARING 7x17x5
BSD-1900905028.A233
1900905028
|
£33.74
|
£40.49
|
|
|
26 - PINION Z=6
BSD-3606300010.A9
3606300010
|
£16.74
|
£20.09
|
|
|
27 - STOP DISC
BSD-3600101047.A117
3600101047
|
£2.16
|
£2.59
|
|
|
28 - RING GEAR
BSD-3606334004.A12
3606334004
|
£42.84
|
£51.41
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A72
3600913000
|
£4.26
|
£5.11
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A315
3603201000
|
£1.84
|
£2.21
|
|
|
36 - GROOVE BALL BEARING 12x21x5
BSD-3600905002.A101
3600905002
|
£16.41
|
£19.69
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337019.A18
3606337019
|
£85.90
|
£103.08
|
|
|
39 - CYLINDRICAL GEAR
BSD-3606316104.A36
3606316104
|
£21.68
|
£26.01
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905015.A15
3600905015
|
£17.22
|
£20.67
|
|
|
44 - THREADED BUSHING
BSD-3600390003.A17
3600390003
|
£12.64
|
£15.17
|
|
|
46 - THREADED RING
BSD-3603344004.A15
3603344004
|
£15.65
|
£18.78
|
|
|
56 - FITTING
BSD-3603458009.A15
3603458009
|
-
|
|
|
|
57 - GUIDE SLEEVE
BSD-3600364005.A21
3600364005
|
£9.49
|
£11.39
|
|
|
60 - STRAINER
BSD-3600002001.A134
3600002001
|
£2.61
|
£3.13
|
|
|
66 - STRAIGHT PIN
BSD-3603201010.A17
3603201010
|
£9.11
|
£10.93
|
|
|
67 - STRAIGHT PIN
BSD-3603201013.A12
3603201013
|
-
|
|
|
|
68 - BALL DIN 5401-dia7MM-III-ST
BSD-1903230013.A321
1903230013
|
£2.27
|
£2.72
|
|
|
69 - O-RING 15x2 MM
BSD-1900210112.A213
1900210112
|
£2.61
|
£3.13
|
|
|
70 - CENTRIFUGAL GOVERNOR
BSD-3607021007.A20
3607021007
|
£33.74
|
£40.49
|
|
|
74 - RETAINING SNAP RING
BSD-3600211001.A14
3600211001
|
£6.52
|
£7.83
|
|
|
75 - GUIDE BUSHING
BSD-3600311002.A7
3600311002
|
-
|
|
|
|
76 - THREADED RING
BSD-3603344003.A45
3603344003
|
£2.61
|
£3.13
|
|
|
77 - CONTROL LEVER
BSD-3602053000.A52
3602053000
|
-
|
|
|
|
78 - STRAIGHT PIN 3M6x24 DIN 7-C35K
BSD-2917610083.A22
2917610083
|
£1.75
|
£2.10
|
|
|
83 - COMPRESSION SPRING
BSD-3604611006.A109
3604611006
|
£2.27
|
£2.72
|
|
|
88 - SILENCER
BSD-3601010004.A9
3601010004
|
£2.16
|
£2.59
|
|
|
89 - SILENCER
BSD-3600009000.A31
3600009000
|
£2.16
|
£2.59
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A538
160111A3HF
|
£3.91
|
£4.69
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A487
3603133000
|
£2.61
|
£3.13
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A379
1601110481
|
£2.27
|
£2.72
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A296
3601119236
|
£3.91
|
£4.69
|
|
|
652 - HOSE FITTING
BSD-3603386002.A128
3603386002
|
£3.34
|
£4.01
|
|
|
653 - SILENCER
BSD-3607000074.A30
3607000074
|
£25.05
|
£30.06
|
|
|
702 - KEY CHUCK dia1-10 MM. 3/8
BSD-1608571020.A114
1608571020
|
-
|
|
|
|
702/1 - KEYLESS CHUCK dia 1-10 MM. 3/8
BSD-1608572018.A14
1608572018
|
-
|
|
|
|
702/7 - CHUCK WRENCH SG2
BSD-2607950007.A361
2607950007
|
£6.85
|
£8.22
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031044.A0
3607031044
|
-
|
|
|
|
804 - PARTS SET
BSD-3607030256.A47
3607030256
|
£31.95
|
£38.34
|
|
|
855 - PARTS SET
BSD-3607010000.A31
3607010000
|
£5.87
|
£7.04
|
|
|
870 - ASSEMBLY OF SERVICE PARTS
BSD-3607031038.A27
3607031038
|
£42.84
|
£51.41
|
|
|
873 - O-RING
BSD-3607010003.A21
3607010003
|
£17.22
|
£20.67
|
|
|
882 - O-RING
BSD-3607010006.A7
3607010006
|
£33.22
|
£39.87
|
|
