Bosch ---- / 1617224031 / --- Spare Parts

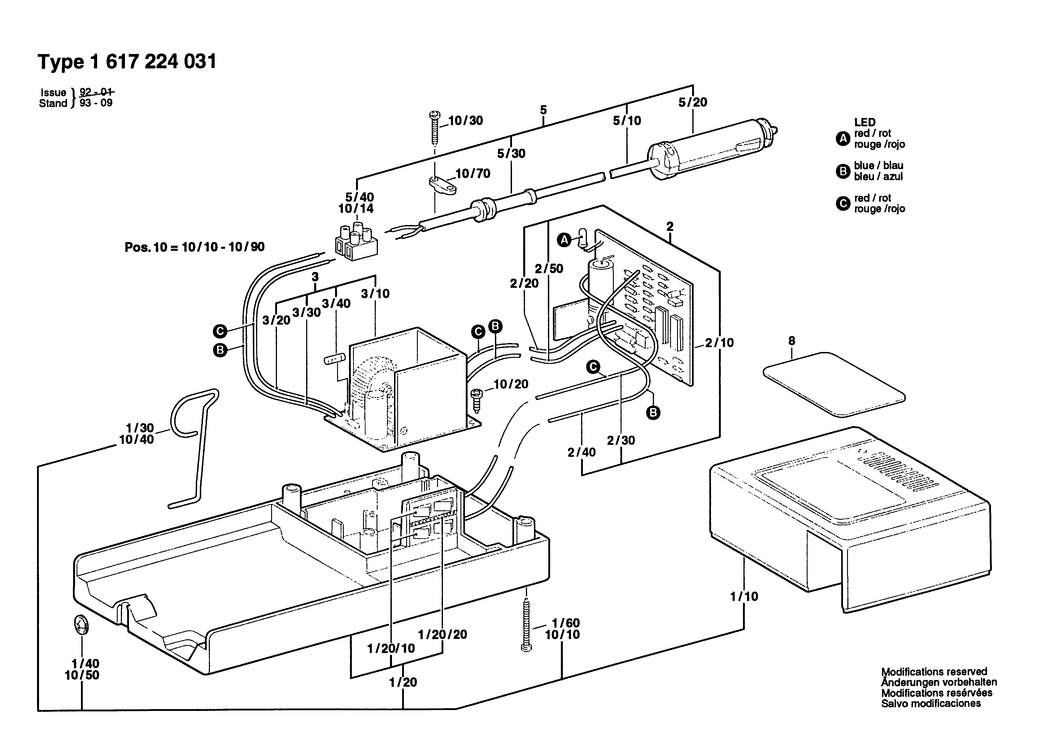

An exploded drawing and listing for the Bosch ---- / 1617224031 / ---

	Ex VAT	Inc VAT
1 - HOUSING BSD-1615190015.A3 1615190015	-
1/10 - HOUSING COVER BSD-1615500273.A7 1615500273	-
1/20 - HOUSING BASE BSD-1615190014.A31 1615190014	-
1/30 - HOLDING SPRING BSD-1614680004.A5 1614680004	-
2 - PRINTED-BOARD ASSEMBLY 12V BSD-2608300002.A0 2608300002	-
3 - PRINTED-CIRCUIT BOARD UNP 12V BSD-2608300001.A2 2608300001	-
5 - CABLE BSD-2604449048.A0 2604449048	-
6 - FUSE SET BSD-2607000145.A2 2607000145	£11.78	£14.13
8 - NAMEPLATE BSD-1611110521.A0 1611110521	-
10 - PARTS SET BSD-2607000146.A0 2607000146	-
10/40 - HOLDING SPRING BSD-1614680004.A3 1614680004	-

Attribute Name	Value
Brand	Bosch
