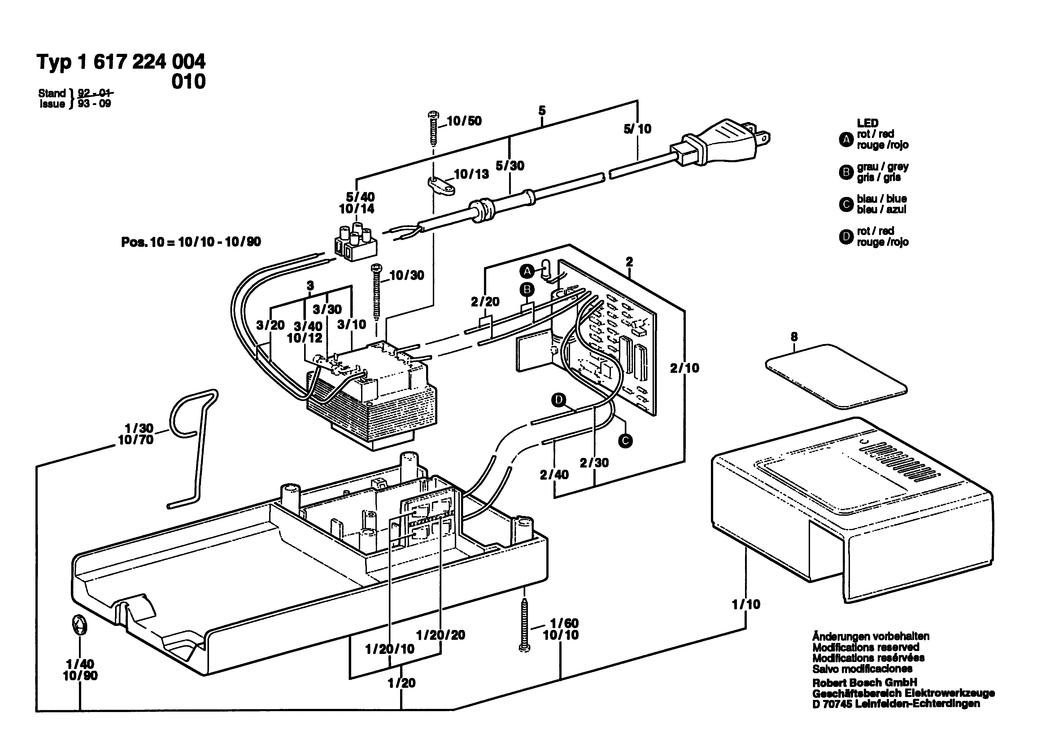

An exploded drawing and listing for the Bosch ---- / 1617224010 / ---

	Ex VAT	Inc VAT
1 - HOUSING BSD-1615190015.A16 1615190015	-
1/10 - HOUSING COVER BSD-1615500273.A29 1615500273	-
1/20 - HOUSING BASE BSD-1615190014.A18 1615190014	-
2 - PRINTED-BOARD ASSEMBLY 220V BSD-1618300000.A15 1618300000	-
3 - POWER TRANSFORMER 100V BSD-1617224015.A0 1617224015	-
3/30 - FUSE SET BSD-1617000166.A3 1617000166	-
3/30/1 - EQUIPMENT FUSE LINK DIN41662TRAEGE-400mA BSD-1904522329.A6 1904522329	-
5 - ELEC. CABLE W/CONNECTION BSD-1614460035.A0 1614460035	-
8 - NAMEPLATE BSD-1611110555.A0 1611110555	-
10 - PARTS SET BSD-1617000116.A15 1617000116	-
10/70 - HOLDING SPRING BSD-1614680004.A20 1614680004	-

Attribute Name	Value
Brand	Bosch
