Bosch ---- / 1617224003 / --- Spare Parts

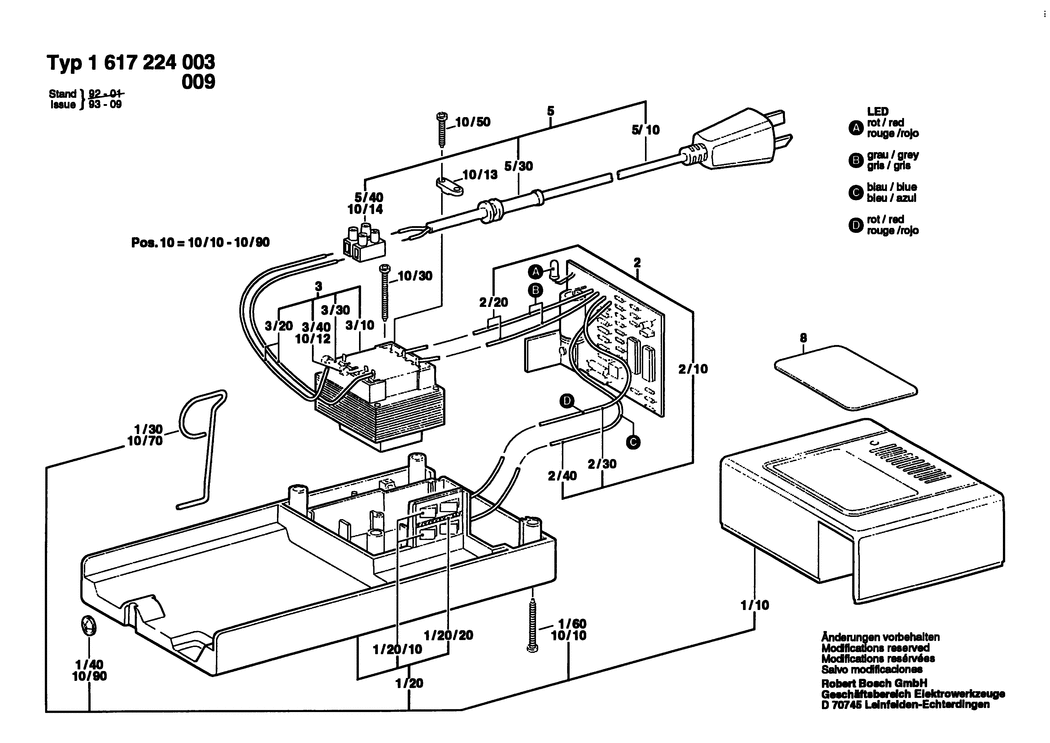

An exploded drawing and listing for the Bosch ---- / 1617224003 / ---

	Ex VAT	Inc VAT
1 - HOUSING BSD-1615190015.A12 1615190015	-
1/10 - HOUSING COVER BSD-1615500273.A33 1615500273	-
1/20 - HOUSING BASE BSD-1615190014.A22 1615190014	-
2 - PRINTED-BOARD ASSEMBLY 220V BSD-1618300000.A11 1618300000	-
3 - POWER TRANSFORMER 240V BSD-1617224017.A7 1617224017	-
3/30 - FUSE SET BSD-1617000165.A12 1617000165	-
5 - ELEC. CABLE W/CONNECTION BSD-1614460037.A3 1614460037	-
8 - NAMEPLATE BSD-1611110259.A1 1611110259	-
10 - PARTS SET BSD-1617000116.A9 1617000116	-
10/70 - HOLDING SPRING BSD-1614680004.A14 1614680004	-

Attribute Name	Value
Brand	Bosch
