Bosch ---- / 1608190006 / --- Spare Parts

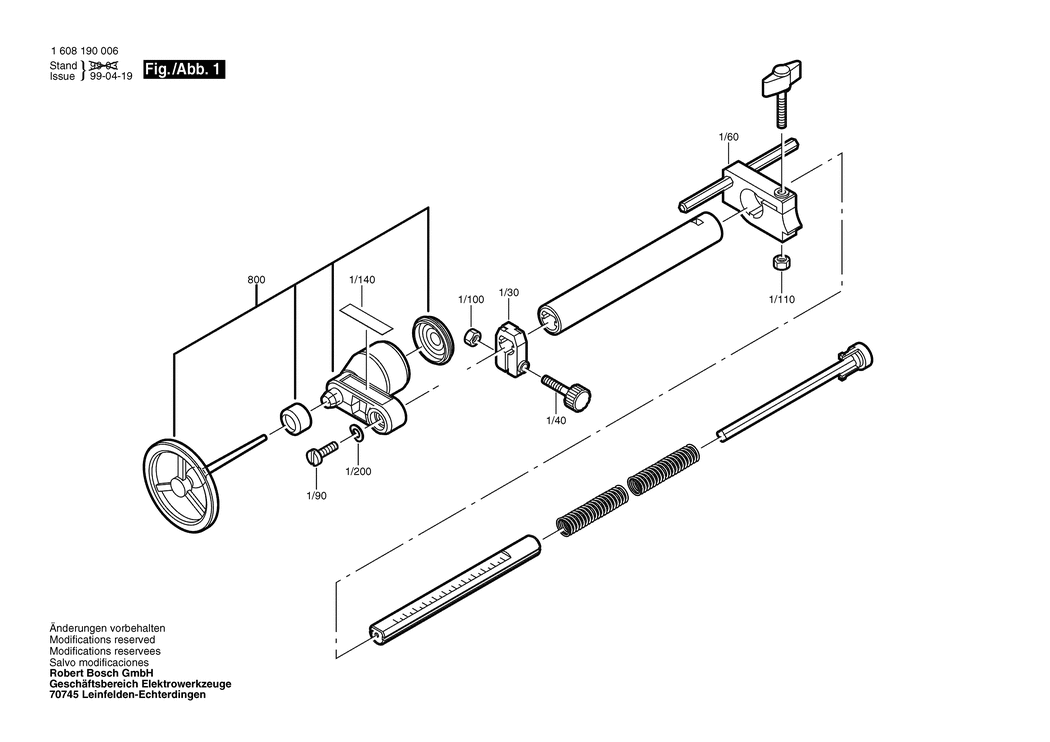

An exploded drawing and listing for the Bosch ---- / 1608190006 / ---

	Ex VAT	Inc VAT
1/30 - CLAMPING PIECE BSD-1611315008.A7 1611315008	-
1/40 - CLAMP SCREW BSD-1613481003.A8 1613481003	£2.80	£3.36
1/50 - GUIDE TUBE BSD-1610715001.A9 1610715001	-
1/60 - SUPPORT CLAMP BSD-1618040043.A2 1618040043	-
1/90 - TAPPING SCREW DIN 7971-B4.8x19 BSD-2910211234.A24 2910211234	£1.75	£2.10
1/100 - HEX NUT DIN 985-M4-8 BSD-2915061002.A20 2915061002	£1.75	£2.10
1/110 - HEX NUT DIN 985-M6-8 BSD-2915061004.A88 2915061004	£1.75	£2.10
1/120 - WING SCREW M6x25 MM BSD-1613480009.A0 1613480009	£1.88	£2.25
1/140 - MANUFACTURER'S NAMEPLATE BSD-1611110250.A5 1611110250	£1.75	£2.10
1/200 - SPRING WASHER DIN 137-A5-FST BSD-2916060006.A225 2916060006	£1.32	£1.58
800 - VERTICAL LEVELING AID BSD-1618190008.A7 1618190008	-

Attribute Name	Value
Brand	Bosch
