Bosch ---- / 0601999015 / --- Spare Parts

Bosch ---- / 0601999015 / --- Spare Parts

Home Details Reviews Delivery

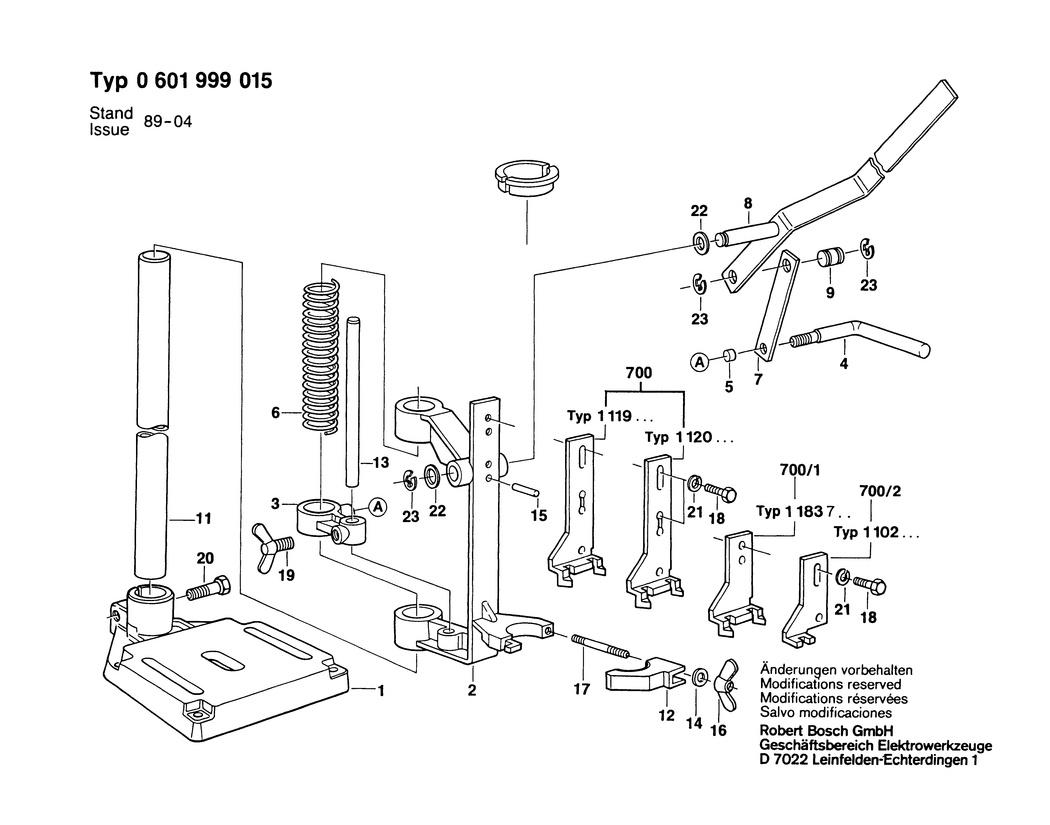

An exploded drawing and listing for the Bosch ---- / 0601999015 / ---

	Ex VAT	Inc VAT
1 - BASE PLATE BSD-1608000011.A4 1608000011	-
2 - RETAINING BRACKET BSD-1608040031.A1 1608040031	-
3 - CLAMPING PIECE BSD-1608040016.A3 1608040016	-
4 - TENSIONING LEVER BSD-1602027009.A0 1602027009	-
5 - PRESSURE SPINDLE BSD-1603200008.A5 1603200008	-
6 - COMPRESSION SPRING BSD-1604615008.A2 1604615008	-
7 - STRAP BSD-1602316000.A0 1602316000	-
8 - FEED LEVER BSD-1601901002.A6 1601901002	-
9 - PIVOT PIN BSD-1603105003.A7 1603105003	-
11 - GUIDE TUBE BSD-1600700005.A5 1600700005	-
12 - CLAMPING SADDLE BSD-1602329002.A0 1602329002	-
12 - CLAMPING SADDLE BSD-1602329008.A2 1602329008	-
13 - GUIDING BOLT BSD-1603000001.A3 1603000001	-
14 - PLAIN WASHER DIN 125-A 8.4-ST BSD-2916011016.A14 2916011016	£1.75	£2.10
15 - STRAIGHT PIN 4 H 8x10 DIN 7 BSD-2917500094.A5 2917500094	£1.32	£1.58
16 - WING NUT DIN 315-M8-GT-C BSD-2915191007.A153 2915191007	£3.72	£4.47
17 - STUD DIN 939-BM8x55-5.6 BSD-2912091256.A1 2912091256	-
18 - HEX SCREW DIN 933-M8x20-8.8 BSD-2911061242.A7 2911061242	-
19 - WING SCREW DIN 316-M10x25-mg-4.6 BSD-2912541291.A1 2912541291	-
20 - HEX NUT DIN 933-M 12x30-8.8 BSD-2911061911.A0 2911061911	-
21 - SPRING LOCK WASHER B 8 DIN 127 BSD-2916680009.A11 2916680009	-
22 - PLAIN WASHER DIN 433-A13-ST 50 BSD-2916011019.A2 2916011019	£2.16	£2.59
23 - LOCKING WASHER DIN 6799-9-FSt BSD-2916080012.A230 2916080012	£1.75	£2.10
700 - TENSIONER PARTS SET BSD-1607000201.A0 1607000201	-
700 - TENSIONER PARTS SET BSD-1607000202.A2 1607000202	-
700 - TENSIONER PARTS SET BSD-1607000203.A0 1607000203	-

Attribute Name	Value
Brand	Bosch
