Bosch SAL20ND / F034K681N7 / EU Spare Parts

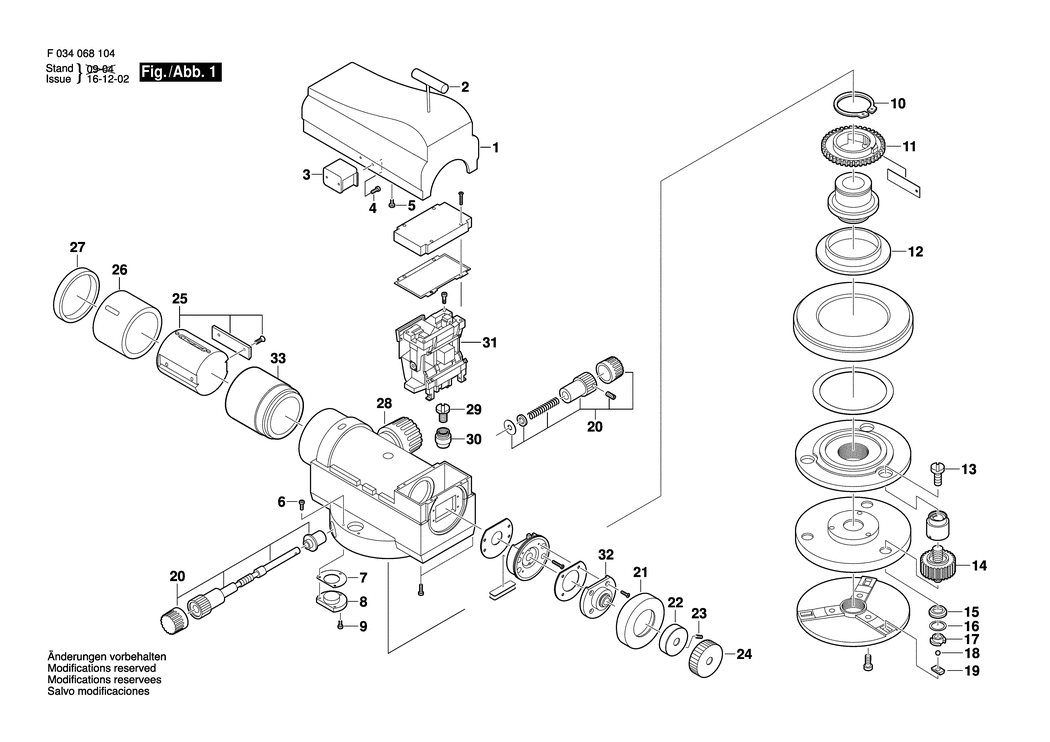

An exploded drawing and listing for the Bosch SAL20ND / F034K681N7 / EU

	Ex VAT	Inc VAT
1 - HOUSING COVER BSD-2610A05738.A0 2610A05738	£11.30	£13.56
2 - VIEWFINDER TUBE BSD-2610A05655.A5 2610A05655	£3.72	£4.47
3 - READER BSD-2610A05657.A5 2610A05657	£12.04	£14.45
4 - SCREW BSD-2610A05656.A0 2610A05656	£1.75	£2.10
5 - SCREW BSD-2610A05696.A0 2610A05696	£1.75	£2.10
6 - SCREW BSD-2610A05698.A0 2610A05698	£1.75	£2.10
7 - CONTACT STRAP BSD-2610A05697.A5 2610A05697	£1.75	£2.10
8 - BUBBLE LEVEL BSD-2610A05718.A0 2610A05718	£11.30	£13.56
9 - SCREW BSD-2610A05758.A0 2610A05758	£1.75	£2.10
10 - RETAINING RING BSD-2610A05671.A10 2610A05671	£1.75	£2.10
11 - GEAR BSD-2610A05667.A5 2610A05667	£6.52	£7.83
12 - RETAINING RING BSD-2610A05744.A0 2610A05744	£1.75	£2.10
13 - SCREW BSD-2610A05734.A6 2610A05734	£1.75	£2.10
14 - CONTROL KNOB BSD-2610A05628.A5 2610A05628	£5.30	£6.36
15 - TENSION CONE BSD-2610A05629.A5 2610A05629	£1.75	£2.10
16 - WASHER BSD-2610A05630.A5 2610A05630	£1.75	£2.10
17 - NUT BSD-2610A05631.A5 2610A05631	£1.75	£2.10
18 - BALL BSD-2610A05692.A5 2610A05692	£1.75	£2.10
19 - BALL SEAT BSD-2610A05693.A5 2610A05693	£1.75	£2.10
20 - ADJUSTING SCREW BSD-2610A05702.A0 2610A05702	£21.68	£26.01
21 - COVER RING BSD-2610A05749.A5 2610A05749	£2.80	£3.36
22 - COVER BSD-2610A05725.A5 2610A05725	-
23 - SET SCREW BSD-2610A05724.A5 2610A05724	£1.75	£2.10
24 - CAP BSD-2610A05750.A0 2610A05750	£3.80	£4.56
25 - PUSHER BSD-2610A05651.A0 2610A05651	£23.86	£28.63
26 - SUN SHADE BSD-2610A05757.A5 2610A05757	£5.30	£6.36
27 - COVER BSD-2610A05715.A5 2610A05715	-
28 - FOCUSING DEVICE BSD-2610A05701.A5 2610A05701	£21.52	£25.83
29 - LOCK SCREW BSD-2610A05752.A0 2610A05752	£2.16	£2.59
30 - TRANSPORT LOCK BSD-2610A05751.A5 2610A05751	£2.80	£3.36
31 - COMPENSATOR BSD-2610A05722.A5 2610A05722	£63.50	£76.20
32 - EYEPIECE BSD-2610A05727.A0 2610A05727	-
33 - ASSEMBLY BSD-2610A05735.A4 2610A05735	-
