Bosch PRT 30 FA / 0600820736 / NL 230 Volt Spare Parts

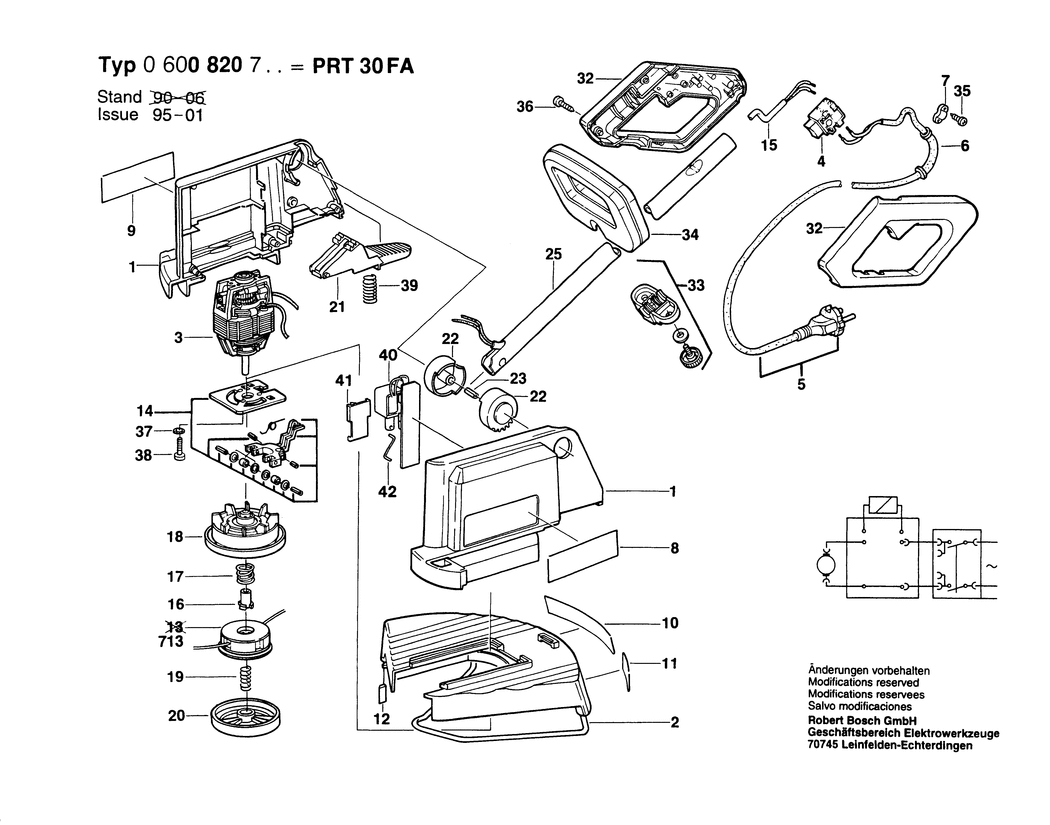

An exploded drawing and listing for the Bosch PRT 30 FA / 0600820736 / NL 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1609202383.A7 1609202383	-
2 - PROTECTIVE SHIELD BSD-1609202384.A0 1609202384	-
3 - ALTERNATING-CURRENT MOTOR BSD-1609202385.A15 1609202385	-
4 - ON-OFF SWITCH BSD-1609201315.A16 1609201315	£10.82	£12.99
5 - POWER SUPPLY CORD BSD-1609202380.A4 1609202380	-
6 - GROMMET dia6.4-dia7.5x75 MM BSD-1600703016.A313 1600703016	£1.75	£2.10
7 - CABLE CLIP BSD-2601035001.A193 2601035001	£1.75	£2.10
8 - NAMEPLATE BSD-1601110823.A0 1601110823	-
9 - MANUFACTURER'S NAMEPLATE BSD-1601110826.A1 1601110826	-
10 - REFERENCE PLATE BSD-1601110536.A10 1601110536	-
11 - REFERENCE PLATE BSD-1601110654.A6 1601110654	-
12 - CUTTER PLATE 38x10x1 MM BSD-1609201464.A9 1609201464	-
14 - MOTOR PLATE BSD-1609202386.A0 1609202386	-
15 - CONNECTING CABLE BSD-1609202438.A7 1609202438	-
16 - CARRIER dia12x18 MM BSD-1609202389.A4 1609202389	-
17 - COMPRESSION SPRING BSD-1609202390.A11 1609202390	-
18 - FAN BSD-1609202388.A11 1609202388	-
19 - COMPRESSION SPRING BSD-1609202445.A7 1609202445	-
20 - SEALING CAP BSD-1609202391.A4 1609202391	-
21 - RELEASE LEVER BSD-1609202392.A11 1609202392	-
22 - CATCH DISK BSD-1609202393.A4 1609202393	-
23 - STRAIGHT PIN DIN 7-3m6x28-C35K-RIKO BSD-2917610086.A8 2917610086	£1.75	£2.10
25 - GUIDE TUBE BSD-1609202395.A15 1609202395	-
32 - HANDLE BSD-1609203314.A0 1609203314	-
33 - TENSIONER PARTS SET BSD-1609201326.A10 1609201326	-
34 - AUXILIARY HANDLE BSD-1609201277.A8 1609201277	-
35 - CROSS RECESSED-HEAD SCREW DIN 7981-ST 3.9x13-F-H BSD-2910611418.A0 2910611418	-
36 - TAPPING SCREW DIN 7981-ST3.9x25-C-Z BSD-2912401022.A112 2912401022	£1.75	£2.10
37 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1234 2910021118	£1.75	£2.10
38 - SERRATED LOCK-WASHER A4.3-FST DIN6798 BSD-2916079031.A14 2916079031	-
39 - COMPRESSION SPRING BSD-1609202400.A8 1609202400	-
40 - ELECTRONIC BOARD BSD-1609202439.A0 1609202439	-
41 - MAGNET DISK BSD-1609202440.A7 1609202440	-
42 - TAUT WIRE BSD-1609202441.A0 1609202441	-
705 - GUIDE BLOCK BSD-1609201304.A5 1609201304	-
713 - CUTTING LINE CARTRIDGE dia1.6 MM BSD-1609202382.A1 1609202382	-

Attribute Name	Value
Brand	Bosch
