Bosch PRT 23 / 0603239566 / N 220 Volt Spare Parts

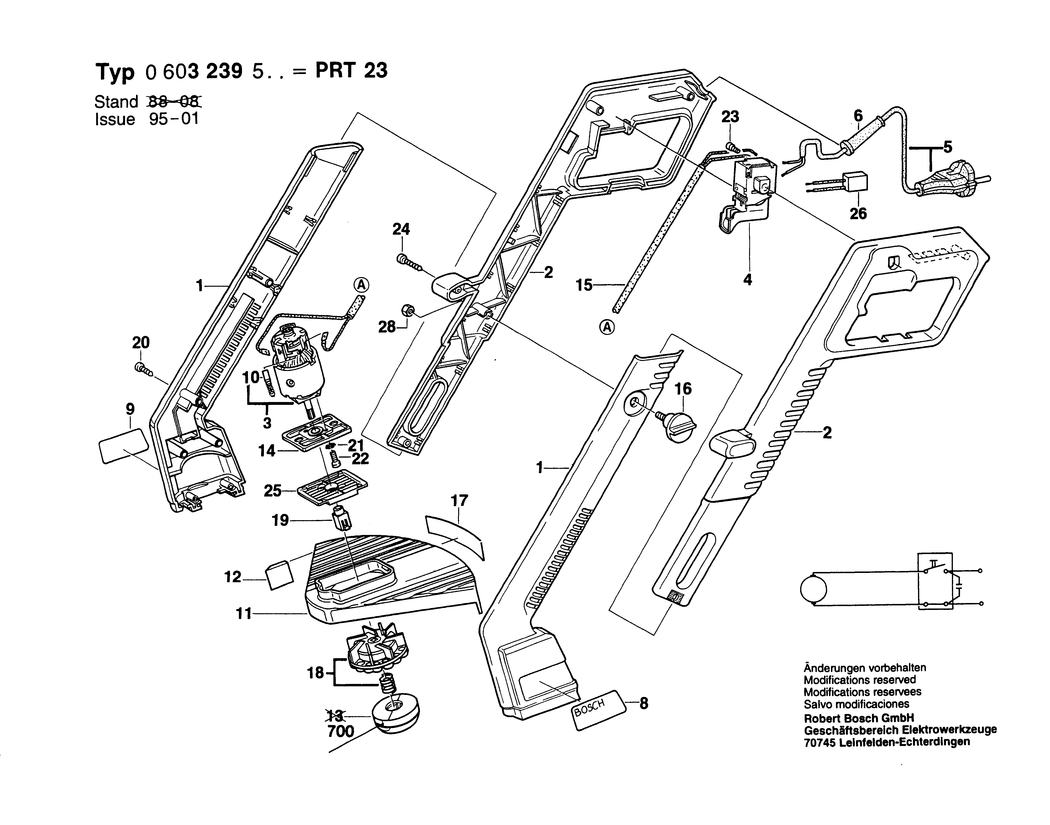

An exploded drawing and listing for the Bosch PRT 23 / 0603239566 / N 220 Volt

	Ex VAT	Inc VAT
1 - HOUSING HALF BSD-1609202313.A1 1609202313	-
2 - HOUSING HALF BSD-1609202314.A2 1609202314	-
3 - ALTERNATING-CURRENT MOTOR BSD-1609202325.A0 1609202325	-
4 - ON-OFF SWITCH BSD-2607200261.A22 2607200261	-
5 - POWER SUPPLY CORD EU 0.46m 2 x 1.0mm H05 VV-F BSD-2604460255.A85 2604460255	£8.67	£10.41
6 - GROMMET BSD-1609201893.A5 1609201893	-
8 - NAMEPLATE BSD-1601110624.A0 1601110624	-
9 - MANUFACTURER'S NAMEPLATE BSD-1601110623.A1 1601110623	-
10 - CARBON-BRUSH SET BSD-1609202316.A1 1609202316	-
11 - PROTECTIVE SHIELD BSD-1609201894.A12 1609201894	-
12 - CUTTER PLATE 24x7x0.8 MM BSD-1609202358.A0 1609202358	-
14 - MOTOR PLATE BSD-1609202317.A13 1609202317	-
15 - CONNECTING CABLE BSD-1609202318.A1 1609202318	-
16 - WING SCREW M 4x12 MM BSD-1609201897.A7 1609201897	-
17 - REFERENCE PLATE BSD-1601110556.A0 1601110556	-
18 - FAN BSD-1609202323.A0 1609202323	-
20 - TAPPING SCREW 3.5x20 MM BSD-1609202016.A7 1609202016	-
21 - TOOTHED LOCK WASHER DIN 6797-A4.3-FST BSD-2916030006.A64 2916030006	£1.75	£2.10
22 - OVAL-HEAD SCREW DIN 7985-M4X8-4.8 BSD-2910641118.A8 2910641118	-
23 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1164 2603410001	£1.75	£2.10
24 - TAPPING SCREW 3.5x35 MM BSD-1609202017.A11 1609202017	-
25 - INSULATING PLATE BSD-1609202319.A13 1609202319	-
26 - SUPPRESSION FILTER BSD-1607328034.A375 1607328034	£4.26	£5.11
28 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A385 2915011005	£1.75	£2.10
700 - CUTTING LINE CARTRIDGE BSD-F016102388.A40 F016102388	-
