Bosch PRT 23 / 0603239432 / CH 220 Volt Spare Parts

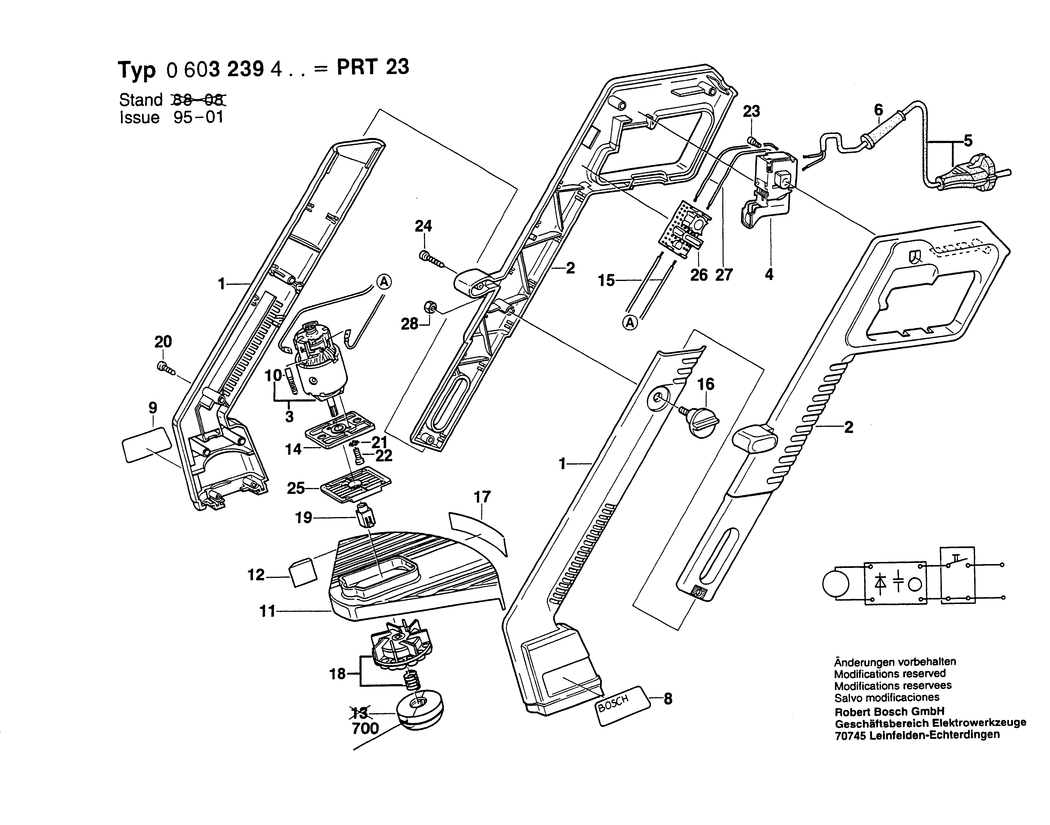

An exploded drawing and listing for the Bosch PRT 23 / 0603239432 / CH 220 Volt

	Ex VAT	Inc VAT
1 - HOUSING HALF BSD-1609201891.A1 1609201891	-
2 - HOUSING HALF BSD-1609201892.A2 1609201892	-
3 - DC MOTOR 220V BSD-1609202172.A1 1609202172	-
4 - ON-OFF SWITCH BSD-2607200261.A21 2607200261	-
5 - POWER SUPPLY CORD CH 0.4m 2 x 1.0mm H05 VV-F BSD-1604460437.A21 1604460437	£7.36	£8.83
6 - GROMMET BSD-1609201893.A1 1609201893	-
8 - NAMEPLATE BSD-1601110537.A0 1601110537	-
9 - MANUFACTURER'S NAMEPLATE BSD-1601110535.A1 1601110535	-
10 - CARBON-BRUSH SET BSD-1609202015.A1 1609202015	-
11 - PROTECTIVE SHIELD BSD-1609201894.A17 1609201894	-
12 - CUTTER PLATE 24x7x0.8 MM BSD-1609202358.A3 1609202358	-
14 - MOTOR PLATE BSD-1609201895.A1 1609201895	-
15 - CONNECTING CABLE BSD-1609201896.A2 1609201896	-
16 - WING SCREW M 4x12 MM BSD-1609201897.A1 1609201897	-
17 - REFERENCE PLATE BSD-1601110536.A3 1601110536	-
18 - FAN BSD-1609201898.A14 1609201898	-
19 - SUPPORT CLAMP BSD-1609202324.A17 1609202324	£2.16	£2.59
20 - TAPPING SCREW 3.5x20 MM BSD-1609202016.A3 1609202016	-
21 - TOOTHED LOCK WASHER DIN 6797-A4.3-FST BSD-2916030006.A67 2916030006	£1.75	£2.10
22 - OVAL-HEAD SCREW DIN 7985-M4X8-4.8 BSD-2910641118.A3 2910641118	-
23 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1153 2603410001	£1.75	£2.10
24 - TAPPING SCREW 3.5x35 MM BSD-1609202017.A14 1609202017	-
25 - INSULATING PLATE BSD-1609202018.A3 1609202018	-
26 - PRINTED-BOARD ASSEMBLY 230V BSD-1609202019.A0 1609202019	-
27 - CONNECTING CABLE BSD-1609202020.A3 1609202020	-
28 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A380 2915011005	£1.75	£2.10
700 - CUTTING LINE CARTRIDGE BSD-F016102388.A33 F016102388	-

Attribute Name	Value
Brand	Bosch
