Bosch PRT 200 / 0603239132 / CH 220 Volt Spare Parts

Home Details Reviews Delivery

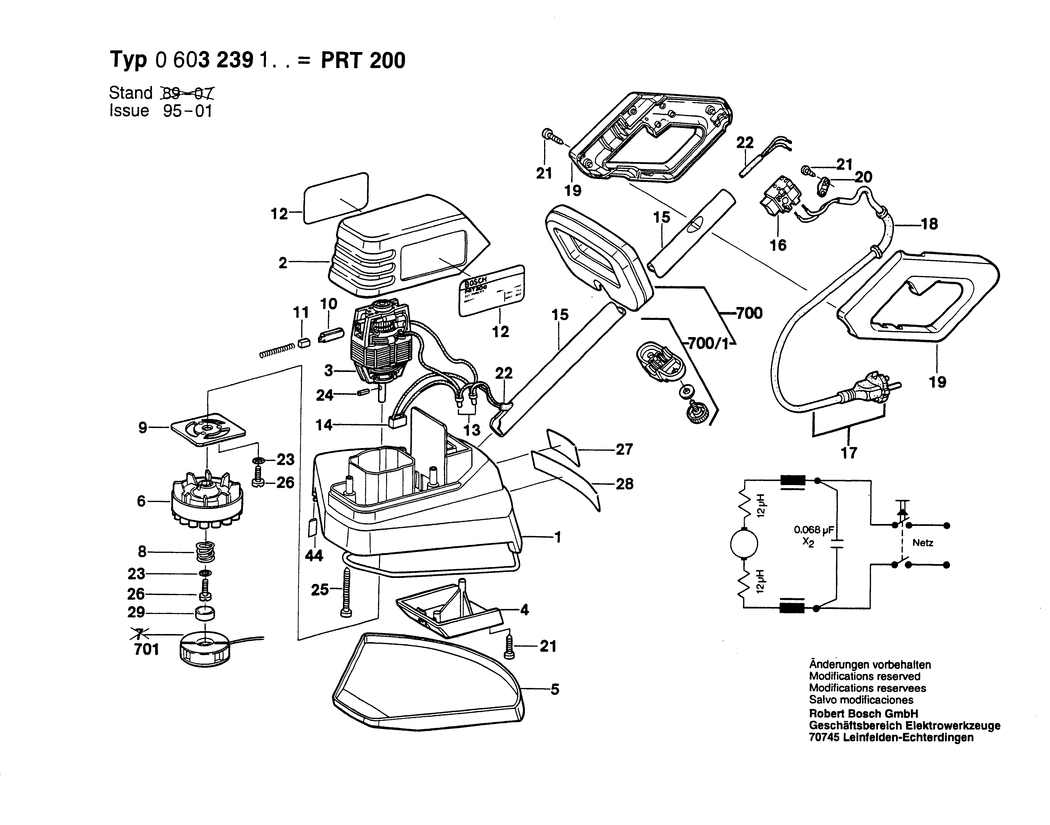

An exploded drawing and listing for the Bosch PRT 200 / 0603239132 / CH 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1609201289.A2 1609201289	-
2 - HOUSING COVER BSD-1609201296.A5 1609201296	-
3 - ALTERNATING-CURRENT MOTOR 220V BSD-1609201300.A1 1609201300	-
4 - HOUSING COVER BSD-1609201297.A2 1609201297	-
6 - CARRIER BSD-1609201305.A2 1609201305	-
8 - COMPRESSION SPRING BSD-1609201307.A5 1609201307	-
9 - FIXING PLATE BSD-1609201308.A2 1609201308	-
10 - BRUSH HOLDER BSD-1609201310.A1 1609201310	-
11 - CARBON-BRUSH SET BSD-1609201311.A6 1609201311	-
12 - MANUFACTURER'S NAMEPLATE BSD-1601110242.A1 1601110242	-
13 - CONNECTING TERMINAL BSD-1609201312.A1 1609201312	-
14 - SUPPRESSION FILTER BSD-1609201313.A6 1609201313	-
15 - GUIDE TUBE BSD-1609201314.A1 1609201314	-
15 - GUIDE TUBE BSD-1609201749.A2 1609201749	-
16 - ON-OFF SWITCH BSD-1609201315.A6 1609201315	£11.37	£13.64
17 - POWER SUPPLY CORD CH 0.4m 2 x 1.0mm H05 VV-F BSD-1604460437.A19 1604460437	£7.72	£9.27
18 - GROMMET dia6.4-dia7.5x75 MM BSD-1600703016.A327 1600703016	£1.75	£2.10
19 - HANDLE BSD-1609201764.A2 1609201764	-
20 - CABLE CLIP BSD-2601035001.A1379 2601035001	£1.84	£2.21
21 - PARTS SET 4x20 MM/4x13 MM/4x25 MM BSD-1609201331.A5 1609201331	-
22 - CABLE BSD-1609201332.A2 1609201332	-
23 - SERRATED LOCK-WASHER A 4.3 DIN 6798-ST BSD-2916070106.A4 2916070106	-
24 - SLOTTED SPRING PIN 3x20 DIN 1481 BSD-2917760081.A18 2917760081	-
25 - TAPPING SCREW BSD-1609201316.A1 1609201316	-
26 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A807 2910021122	£2.27	£2.72
27 - NAMEPLATE BSD-1601110245.A0 1601110245	-
28 - REFERENCE PLATE BSD-1601110140.A4 1601110140	-
29 - PLUG BSD-1609201395.A2 1609201395	-
44 - CUTTER PLATE 38x10x1 MM BSD-1609201464.A21 1609201464	-
650 - CONNECTOR BSD-2604483000.A4 2604483000	-
700 - AUXILIARY HANDLE BSD-1609201277.A6 1609201277	-
700 - TENSIONER PARTS SET BSD-1609201326.A6 1609201326	-
701 - CUTTING LINE CARTRIDGE dia 1.4 MM BSD-1609201653.A2 1609201653	-
702 - CUTTING LINE CARTRIDGE dia 1.4 MM BSD-1609201653.A3 1609201653	-

Attribute Name	Value
Brand	Bosch
