Bosch ART 30 COMBITRIM / 3600H78D03 / EU 230 Volt Spare Parts

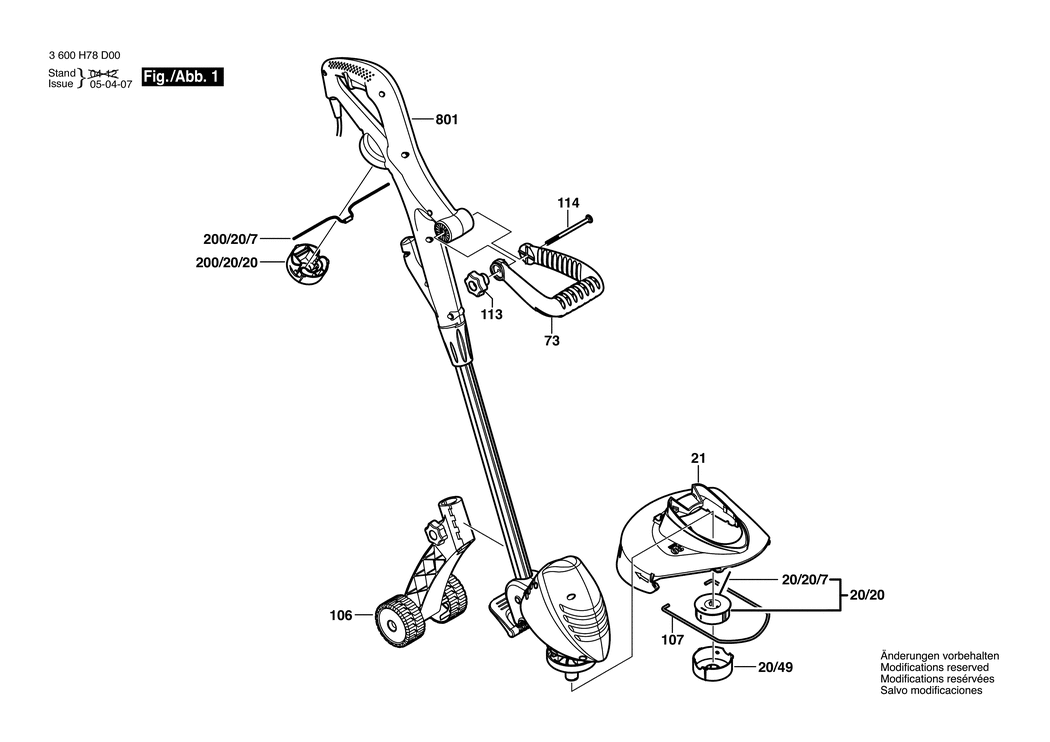

An exploded drawing and listing for the Bosch ART 30 COMBITRIM / 3600H78D03 / EU 230 Volt

	Ex VAT	Inc VAT
20/20 - CUTTING LINE CARTRIDGE BSD-F016L71599.A0 F016L71599	£10.10	£12.12
20/20/7 - PLASTIC CABLE 8 m BSD-F016L71566.A47 F016L71566	-
20/49 - SPOOL COVER BSD-1619X08157.A21 1619X08157	£4.37	£5.24
21 - KNIFE GUARD dia 300 MM BSD-F016L71144.A1 F016L71144	-
73 - SET OF HANDLES BSD-F016L71116.A33 F016L71116	£8.67	£10.41
106 - WHEEL BSD-F016L71147.A5 F016L71147	-
107 - PROTECTIVE SHIELD BSD-F016L71146.A19 F016L71146	£6.52	£7.83
113 - WING NUT BSD-F016L71118.A31 F016L71118	£2.80	£3.36
114 - SCREW BSD-F016F03312.A6 F016F03312	£2.33	£2.80
200/20/7 - PLASTIC CABLE 300 MM BSD-F016L71137.A1 F016L71137	£1.32	£1.58
200/20/20 - CUTTING LINE CARTRIDGE BSD-F016L71115.A10 F016L71115	£7.36	£8.83
801 - LAWN EDGE TRIMMER EU BSD-0600878D03.A2 0600878D03	-
801 - LAWN EDGE TRIMMER EU BSD-0600878D01.A4 0600878D01	-
