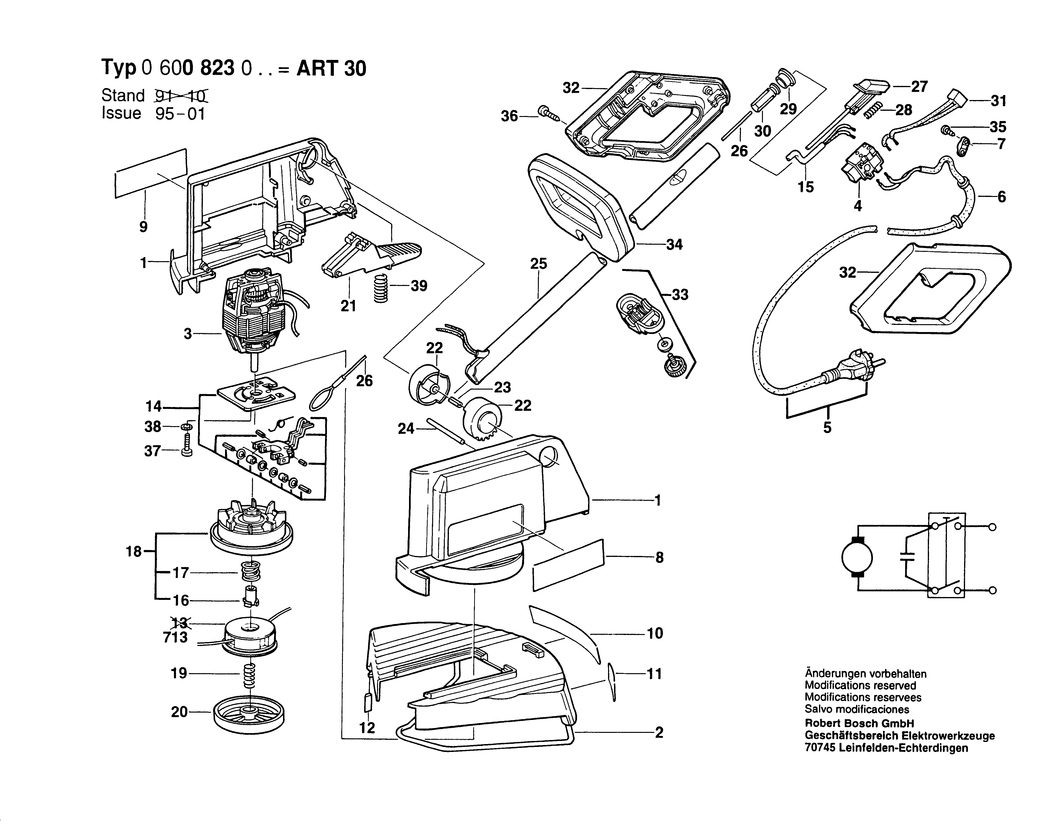

1 - MOTOR HOUSING
BSD-1609202547.A2
1609202547
|
-
|
|
|
|
2 - PROTECTIVE SHIELD
BSD-1609202384.A8
1609202384
|
-
|
|
|
|
3 - ALTERNATING-CURRENT MOTOR
BSD-1609202385.A7
1609202385
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-1609201315.A10
1609201315
|
£11.37
|
£13.64
|
|
|
5 - POWER SUPPLY CORD GB 240V 10.2m 2 x 1.0mm H05 VV-F
BSD-1604460184.A2
1604460184
|
£33.73
|
£40.48
|
|
|
6 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A322
1600703016
|
£1.75
|
£2.10
|
|
|
7 - CABLE CLIP
BSD-2601035001.A167
2601035001
|
£1.84
|
£2.21
|
|
|
8 - NAMEPLATE
BSD-1601110955.A0
1601110955
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110949.A2
1601110949
|
-
|
|
|
|
11 - REFERENCE PLATE
BSD-1601110654.A3
1601110654
|
-
|
|
|
|
12 - CUTTER PLATE 38x10x1 MM
BSD-1609201464.A1
1609201464
|
-
|
|
|
|
14 - MOTOR PLATE
BSD-1609202386.A9
1609202386
|
-
|
|
|
|
15 - CONNECTING CABLE
BSD-1609202387.A6
1609202387
|
-
|
|
|
|
16 - CARRIER dia12x18 MM
BSD-1609202389.A14
1609202389
|
-
|
|
|
|
17 - COMPRESSION SPRING
BSD-1609202390.A1
1609202390
|
-
|
|
|
|
18 - FAN
BSD-1609202388.A1
1609202388
|
-
|
|
|
|
19 - COMPRESSION SPRING
BSD-1609202445.A12
1609202445
|
-
|
|
|
|
20 - SEALING CAP
BSD-1609202391.A14
1609202391
|
-
|
|
|
|
21 - RELEASE LEVER
BSD-1609202392.A1
1609202392
|
-
|
|
|
|
22 - CATCH DISK
BSD-1609202393.A14
1609202393
|
-
|
|
|
|
23 - STRAIGHT PIN DIN 7-3m6x28-C35K-RIKO
BSD-2917610086.A1
2917610086
|
£1.75
|
£2.10
|
|
|
24 - STRAIGHT PIN
BSD-1609202394.A1
1609202394
|
-
|
|
|
|
25 - GUIDE TUBE
BSD-1609202395.A6
1609202395
|
-
|
|
|
|
26 - NYLON LINE
BSD-1609202396.A1
1609202396
|
-
|
|
|
|
27 - PUSH-BUTTON
BSD-1609201329.A6
1609201329
|
-
|
|
|
|
28 - COMPRESSION SPRING
BSD-1609201328.A5
1609201328
|
-
|
|
|
|
29 - GUIDE PIECE
BSD-1609202397.A6
1609202397
|
-
|
|
|
|
30 - PUSHER
BSD-1609202398.A1
1609202398
|
-
|
|
|
|
31 - SUPPRESSION FILTER
BSD-1609201313.A9
1609201313
|
-
|
|
|
|
32 - HANDLE
BSD-1609202548.A1
1609202548
|
-
|
|
|
|
33 - TENSIONER PARTS SET
BSD-1609202549.A2
1609202549
|
-
|
|
|
|
34 - AUXILIARY HANDLE
BSD-1609202550.A5
1609202550
|
-
|
|
|
|
35 - CROSS RECESSED-HEAD SCREW DIN 7981-ST 3.9x13-F-H
BSD-2910611418.A11
2910611418
|
-
|
|
|
|
36 - TAPPING SCREW DIN 7981-ST3.9x25-C-Z
BSD-2912401022.A113
2912401022
|
£1.84
|
£2.21
|
|
|
37 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1235
2910021118
|
£1.84
|
£2.21
|
|
|
38 - SERRATED LOCK-WASHER A4.3-FST DIN6798
BSD-2916079031.A21
2916079031
|
-
|
|
|
|
39 - COMPRESSION SPRING
BSD-1609202400.A5
1609202400
|
-
|
|
|
|
650 - CONNECTOR
BSD-2604483000.A13
2604483000
|
-
|
|
|
|
705 - GUIDE BLOCK
BSD-1609201304.A14
1609201304
|
-
|
|
|
|
713 - CUTTING LINE CARTRIDGE dia1.6 MM
BSD-1609202382.A10
1609202382
|
-
|
|
|
