Bosch ART 25 / 0600822242 / GB 230 Volt Spare Parts

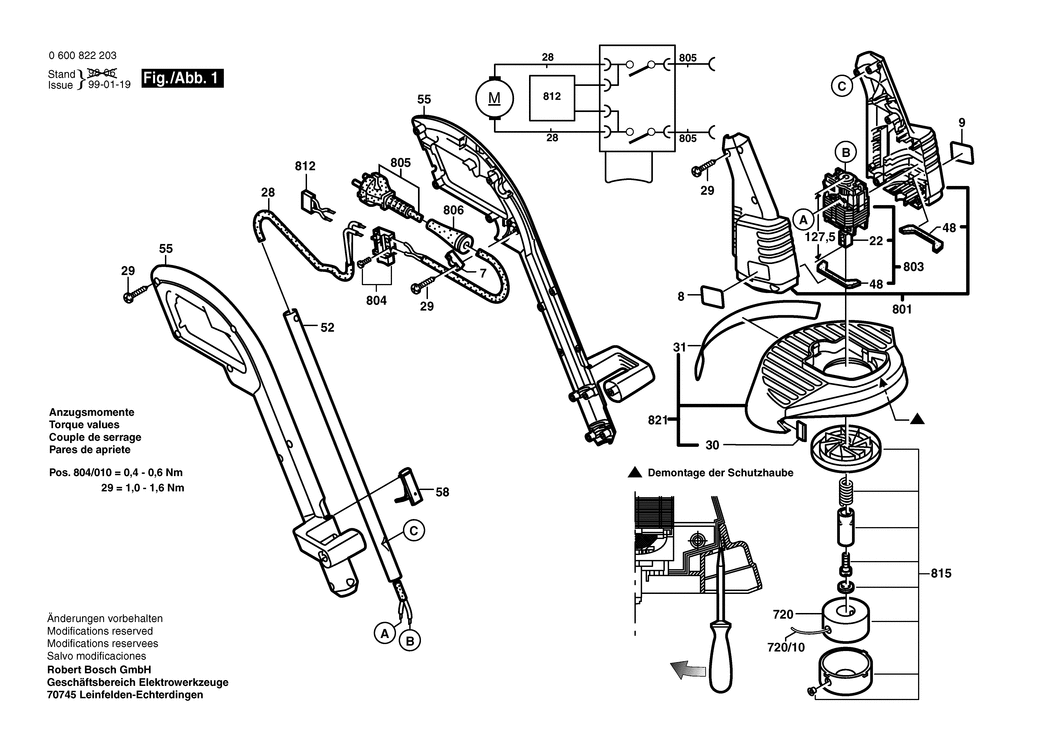

An exploded drawing and listing for the Bosch ART 25 / 0600822242 / GB 230 Volt

	Ex VAT	Inc VAT
7 - CABLE CLIP BSD-2601035001.A173 2601035001	£1.75	£2.10
8 - NAMEPLATE BSD-1601118972.A0 1601118972	-
9 - MANUFACTURER'S NAMEPLATE BSD-1601118034.A7 1601118034	-
22 - SUPPORT CLAMP BSD-1608040116.A7 1608040116	-
28 - CONNECTING CABLE BSD-1604420025.A7 1604420025	-
29 - OVAL-HEAD SCREW 4x18 MM.TORX T20 BSD-2914201506.A108 2914201506	£1.75	£2.10
30 - CUTTER PLATE BSD-1608635042.A12 1608635042	-
31 - REFERENCE PLATE BSD-1601118435.A9 1601118435	£3.34	£4.01
48 - RUBBER PLATE BSD-1601016012.A12 1601016012	-
52 - PIPE BSD-1600700023.A0 1600700023	-
55 - HANDLE COVER BSD-1605133040.A13 1605133040	-
58 - SUPPORT CLAMP BSD-1605500180.A11 1605500180	-
720 - CUTTING LINE CARTRIDGE BSD-F016800002.A5 F016800002	-
720/10 - PLASTIC CABLE dia1.4 MM. L=24 M BSD-1604700004.A2 1604700004	-
801 - MOTOR HOUSING BSD-1607000849.A0 1607000849	-
803 - ALTERNATING-CURRENT MOTOR BSD-1607000850.A7 1607000850	-
804 - SWITCH BSD-1607200116.A32 1607200116	-
805 - POWER SUPPLY CORD BSD-1604460165.A10 1604460165	-
806 - GROMMET dia7.2-dia9.5x81 MM BSD-1600703026.A11 1600703026	£2.16	£2.59
812 - SUPPRESSION FILTER BSD-1607328028.A576 1607328028	£5.30	£6.36
815 - CUTTING LINE CARTRIDGE BSD-F016102658.A29 F016102658	-
821 - PROTECTIVE COVER BSD-1607000954.A15 1607000954	-
