Bosch ART 25 / 0600822232 / CH 230 Volt Spare Parts

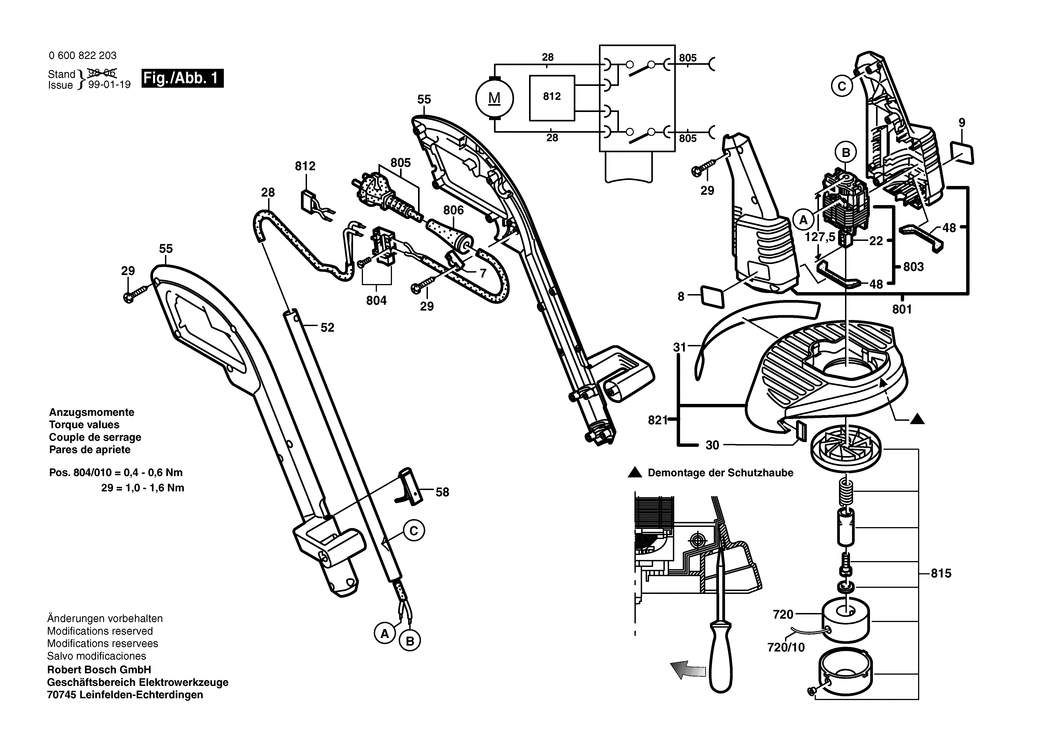

An exploded drawing and listing for the Bosch ART 25 / 0600822232 / CH 230 Volt

	Ex VAT	Inc VAT
7 - CABLE CLIP BSD-2601035001.A212 2601035001	£1.75	£2.10
8 - NAMEPLATE BSD-1601118970.A0 1601118970	-
9 - MANUFACTURER'S NAMEPLATE BSD-1601118034.A0 1601118034	-
22 - SUPPORT CLAMP BSD-1608040116.A3 1608040116	-
28 - CONNECTING CABLE BSD-1604420025.A1 1604420025	-
29 - OVAL-HEAD SCREW 4x18 MM.TORX T20 BSD-2914201506.A151 2914201506	£1.75	£2.10
30 - CUTTER PLATE BSD-1608635042.A16 1608635042	-
31 - REFERENCE PLATE BSD-1601118435.A11 1601118435	£3.34	£4.01
48 - RUBBER PLATE BSD-1601016012.A9 1601016012	-
52 - PIPE BSD-1600700023.A3 1600700023	-
55 - HANDLE COVER BSD-1605133040.A8 1605133040	-
58 - SUPPORT CLAMP BSD-1605500180.A0 1605500180	-
720 - CUTTING LINE CARTRIDGE BSD-F016800002.A9 F016800002	-
720/10 - PLASTIC CABLE dia1.4 MM. L=24 M BSD-1604700004.A6 1604700004	-
801 - MOTOR HOUSING BSD-1607000849.A7 1607000849	-
803 - ALTERNATING-CURRENT MOTOR BSD-1607000850.A0 1607000850	-
804 - SWITCH BSD-1607200116.A9 1607200116	-
805 - POWER SUPPLY CORD CH 0.4m 2 x 1.0mm H05 VV-F BSD-1604460437.A9 1604460437	£7.36	£8.83
806 - GROMMET dia7.2-dia9.5x81 MM BSD-1600703026.A32 1600703026	£2.16	£2.59
812 - SUPPRESSION FILTER BSD-1607328028.A544 1607328028	£5.30	£6.36
815 - CUTTING LINE CARTRIDGE BSD-F016102658.A17 F016102658	-
821 - PROTECTIVE COVER BSD-1607000954.A14 1607000954	-

Attribute Name	Value
Brand	Bosch
