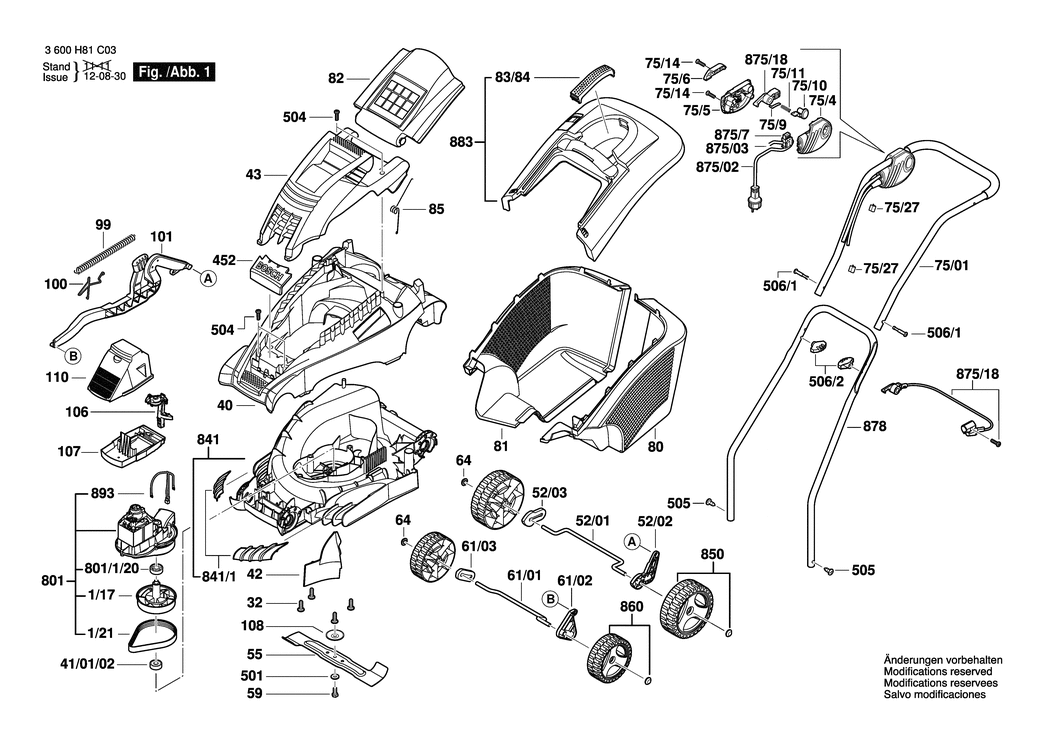

1/17 - DRIVE SHAFT
BSD-F016L65108.A21
F016L65108
|
£13.78
|
£16.54
|
|
|
1/21 - DRIVE BELT
BSD-F016L65109.A80
F016L65109
|
£17.22
|
£20.67
|
|
|
32 - SELF-CUTTING SCREW
BSD-F016L37433.A22
F016L37433
|
£1.75
|
£2.10
|
|
|
40 - MOWER DECK
BSD-F016L66159.A31
F016L66159
|
£37.27
|
£44.72
|
|
|
41/01/02 - BEARING 6003
BSD-F016L64387.A16
F016L64387
|
£5.57
|
£6.68
|
|
|
42 - COVER PANEL
BSD-F016L66041.A3
F016L66041
|
-
|
|
|
|
43 - MOTOR HOOD
BSD-F016L65159.A31
F016L65159
|
£30.28
|
£36.33
|
|
|
52/01 - AXLE
BSD-F016L66467.A1
F016L66467
|
£5.26
|
£6.31
|
|
|
52/02 - LEVER
BSD-F016L90582.A80
F016L90582
|
-
|
|
|
|
52/03 - SPACER
BSD-F016L90583.A112
F016L90583
|
£2.45
|
£2.94
|
|
|
55 - CUTTER BLADE
BSD-F016L65924.A1
F016L65924
|
£35.42
|
£42.51
|
|
|
59 - SCREW AND WASHER ASSEMBLY
BSD-F016104350.A4
F016104350
|
£2.05
|
£2.46
|
|
|
61/01 - AXLE
BSD-F016L66466.A28
F016L66466
|
£6.16
|
£7.39
|
|
|
61/02 - LEVER
BSD-F016L90581.A112
F016L90581
|
£8.17
|
£9.80
|
|
|
61/03 - SPACER
BSD-F016L90585.A80
F016L90585
|
£1.75
|
£2.10
|
|
|
64 - RATCHET CAP 9 MM
BSD-F016F05700.A19
F016F05700
|
£1.95
|
£2.34
|
|
|
75/01 - HANDLE
BSD-F016L66181.A4
F016L66181
|
£23.86
|
£28.63
|
|
|
75/4 - SWITCH HOUSING
BSD-F016L65739.A32
F016L65739
|
-
|
|
|
|
75/5 - SWITCH HOUSING
BSD-F016L66235.A78
F016L66235
|
£3.51
|
£4.21
|
|
|
75/6 - CABLE CLEAT
BSD-F016T49630.A34
F016T49630
|
-
|
|
|
|
75/9 - SPRING LEVER
BSD-F016T49845.A51
F016T49845
|
-
|
|
|
|
75/10 - PUSH-BUTTON
BSD-F016F05705.A43
F016F05705
|
£3.75
|
£4.50
|
|
|
75/11 - COMPRESSION SPRING
BSD-F016T49226.A65
F016T49226
|
-
|
|
|
|
75/14 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A380
F016T49429
|
£1.84
|
£2.21
|
|
|
75/27 - CABLE CLIP
BSD-F016L90575.A37
F016L90575
|
£1.84
|
£2.21
|
|
|
80 - COLLECTOR BOX BOTTOM L/H
BSD-F016L64304.A30
F016L64304
|
£22.76
|
£27.31
|
|
|
81 - COLLECTOR BOX BOTTOM R/H
BSD-F016L64338.A7
F016L64338
|
£17.22
|
£20.67
|
|
|
82 - GUARD FLAP
BSD-F016L66137.A96
F016L66137
|
£13.32
|
£15.99
|
|
|
83/84 - HANDLE
BSD-F016L66441.A88
F016L66441
|
£4.99
|
£5.99
|
|
|
85 - SPRING
BSD-F016L66165.A181
F016L66165
|
£2.97
|
£3.56
|
|
|
99 - SPRING
BSD-F016L59327.A23
F016L59327
|
£2.94
|
£3.53
|
|
|
100 - SPRING
BSD-F016L65790.A29
F016L65790
|
£2.05
|
£2.46
|
|
|
101 - LINK PIECE
BSD-F016L65971.A14
F016L65971
|
-
|
|
|
|
106 - WIRE GUIDE
BSD-F016L90579.A19
F016L90579
|
£35.12
|
£42.15
|
|
|
107 - FILTER HOUSING
BSD-F016L65539.A30
F016L65539
|
£11.87
|
£14.24
|
|
|
108 - BEARING COVER
BSD-F016L67627.A35
F016L67627
|
£2.71
|
£3.25
|
|
|
110 - FILTER HOUSING
BSD-F016L65709.A13
F016L65709
|
£5.87
|
£7.04
|
|
|
452 - COMPANY LOGO ROTAK 43
BSD-F016L66273.A0
F016L66273
|
£2.74
|
£3.29
|
|
|
501 - PLAIN WASHER dia8.15
BSD-F016T48185.A59
F016T48185
|
£3.91
|
£4.69
|
|
|
504 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A381
F016T49429
|
£1.84
|
£2.21
|
|
|
505 - SCREW M5x8 Csk Hd.
BSD-F016L36542.A28
F016L36542
|
£2.62
|
£3.14
|
|
|
506/1 - BOLT M6x50
BSD-F016L59277.A100
F016L59277
|
£3.99
|
£4.79
|
|
|
506/2 - WING NUT
BSD-F016L66136.A27
F016L66136
|
£4.48
|
£5.37
|
|
|
681 - STRAIN-RELIEF CLAMP
BSD-3601398000.A92
3601398000
|
£5.57
|
£6.68
|
|
|
801 - MOTOR
BSD-F016103596.A24
F016103596
|
£140.87
|
£169.04
|
|
|
801/1/20 - BEARING
BSD-F016L64594.A12
F016L64594
|
£3.94
|
£4.73
|
|
|
841 - HOUSING
BSD-F016103600.A8
F016103600
|
-
|
|
|
|
841/1 - COVER
BSD-F016104318.A14
F016104318
|
£6.16
|
£7.39
|
|
|
850 - WHEEL
BSD-F016103992.A29
F016103992
|
-
|
|
|
|
860 - WHEEL
BSD-F016103994.A48
F016103994
|
-
|
|
|
|
875/02 - POWER SUPPLY CORD EU
BSD-F016104086.A46
F016104086
|
£17.58
|
£21.09
|
|
|
875/03 - CONNECTING CABLE
BSD-F016103602.A32
F016103602
|
£15.46
|
£18.55
|
|
|
875/7 - ON-OFF SWITCH
BSD-F016F05717.A25
F016F05717
|
£15.65
|
£18.78
|
|
|
875/18 - CONTROL BAR
BSD-F016103601.A22
F016103601
|
-
|
|
|
|
878 - BOTTOM HANDLE
BSD-F016L65166.A17
F016L65166
|
-
|
|
|
|
883 - COVER
BSD-F016103608.A93
F016103608
|
£28.59
|
£34.31
|
|
|
893 - THERMAL PROTECTOR
BSD-F016103605.A23
F016103605
|
£12.64
|
£15.17
|
|
