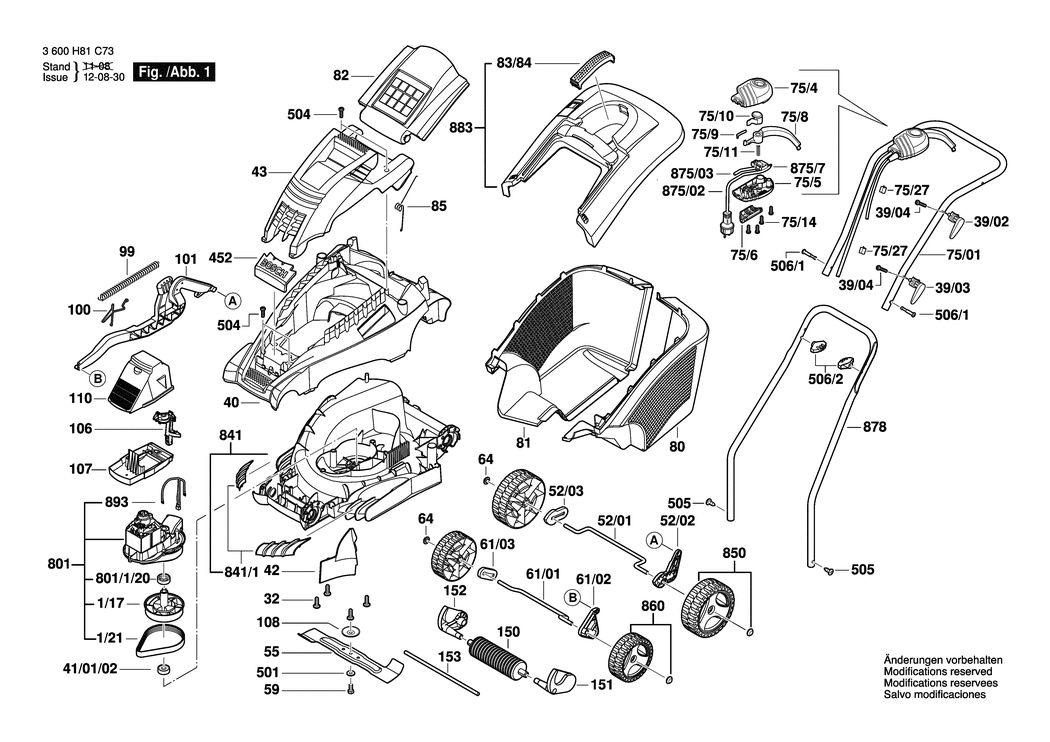

1/17 - DRIVE SHAFT
BSD-F016L65108.A12
F016L65108
|
£13.12
|
£15.75
|
|
|
1/21 - DRIVE BELT
BSD-F016L65109.A89
F016L65109
|
£16.41
|
£19.69
|
|
|
32 - SELF-CUTTING SCREW
BSD-F016L37433.A31
F016L37433
|
£1.75
|
£2.10
|
|
|
39/02 - CABLE HOLDER
BSD-F016L65261.A3
F016L65261
|
£2.52
|
£3.02
|
|
|
39/03 - CABLE HOLDER
BSD-F016L65262.A4
F016L65262
|
£2.80
|
£3.36
|
|
|
39/04 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A393
F016T49429
|
£1.75
|
£2.10
|
|
|
40 - MOWER DECK
BSD-F016L66159.A25
F016L66159
|
£37.27
|
£44.72
|
|
|
41/01/02 - BEARING 6003
BSD-F016L64387.A7
F016L64387
|
£5.30
|
£6.36
|
|
|
42 - COVER PANEL
BSD-F016L66040.A24
F016L66040
|
£6.61
|
£7.93
|
|
|
43 - MOTOR HOOD
BSD-F016L65159.A22
F016L65159
|
£30.28
|
£36.33
|
|
|
52/01 - AXLE
BSD-F016L66467.A4
F016L66467
|
£5.01
|
£6.01
|
|
|
52/02 - LEVER
BSD-F016L90582.A75
F016L90582
|
-
|
|
|
|
52/03 - SPACER
BSD-F016L90583.A117
F016L90583
|
£2.33
|
£2.80
|
|
|
55 - CUTTER BLADE
BSD-F016L65923.A13
F016L65923
|
£31.64
|
£37.97
|
|
|
59 - SCREW AND WASHER ASSEMBLY
BSD-F016104350.A6
F016104350
|
£1.95
|
£2.34
|
|
|
61/01 - AXLE
BSD-F016L66466.A25
F016L66466
|
£5.87
|
£7.04
|
|
|
61/02 - LEVER
BSD-F016L90581.A117
F016L90581
|
£7.78
|
£9.33
|
|
|
61/03 - SPACER
BSD-F016L90585.A75
F016L90585
|
£1.75
|
£2.10
|
|
|
64 - RATCHET CAP 9 MM
BSD-F016F05700.A25
F016F05700
|
£1.95
|
£2.34
|
|
|
75/01 - HANDLE
BSD-F016L65573.A2
F016L65573
|
£18.96
|
£22.75
|
|
|
75/4 - SWITCH HOUSING
BSD-F016L65739.A29
F016L65739
|
-
|
|
|
|
75/5 - SWITCH HOUSING
BSD-F016L66235.A85
F016L66235
|
£3.34
|
£4.01
|
|
|
75/6 - CABLE CLEAT
BSD-F016T49630.A28
F016T49630
|
-
|
|
|
|
75/8 - POSITIONING LEVER
BSD-F016L66238.A29
F016L66238
|
£5.98
|
£7.18
|
|
|
75/9 - SPRING LEVER
BSD-F016T49845.A57
F016T49845
|
-
|
|
|
|
75/10 - PUSH-BUTTON
BSD-F016F05705.A38
F016F05705
|
£3.75
|
£4.50
|
|
|
75/11 - COMPRESSION SPRING
BSD-F016T49226.A60
F016T49226
|
-
|
|
|
|
75/14 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A389
F016T49429
|
£1.75
|
£2.10
|
|
|
75/27 - CABLE CLIP
BSD-F016L90575.A40
F016L90575
|
£1.75
|
£2.10
|
|
|
80 - COLLECTOR BOX BOTTOM L/H
BSD-F016L64304.A23
F016L64304
|
£21.68
|
£26.01
|
|
|
81 - COLLECTOR BOX BOTTOM R/H
BSD-F016L64338.A14
F016L64338
|
£16.41
|
£19.69
|
|
|
82 - GUARD FLAP
BSD-F016L66137.A101
F016L66137
|
£13.32
|
£15.99
|
|
|
83/84 - HANDLE
BSD-F016L66441.A79
F016L66441
|
£4.75
|
£5.70
|
|
|
85 - SPRING
BSD-F016L66165.A186
F016L66165
|
£2.82
|
£3.39
|
|
|
99 - SPRING
BSD-F016L59327.A30
F016L59327
|
£2.80
|
£3.36
|
|
|
100 - SPRING
BSD-F016L65798.A1
F016L65798
|
£5.01
|
£6.01
|
|
|
101 - LINK PIECE
BSD-F016L65971.A11
F016L65971
|
-
|
|
|
|
106 - WIRE GUIDE
BSD-F016L90579.A15
F016L90579
|
£33.45
|
£40.14
|
|
|
107 - FILTER HOUSING
BSD-F016L65539.A28
F016L65539
|
£11.30
|
£13.56
|
|
|
108 - BEARING COVER
BSD-F016L67627.A31
F016L67627
|
£2.71
|
£3.25
|
|
|
110 - FILTER HOUSING
BSD-F016L65709.A18
F016L65709
|
£5.87
|
£7.04
|
|
|
150 - ROLLER DRUM
BSD-F016L66175.A42
F016L66175
|
-
|
|
|
|
151 - BRACKET
BSD-F016L64900.A25
F016L64900
|
-
|
|
|
|
152 - BRACKET
BSD-F016L64901.A57
F016L64901
|
-
|
|
|
|
153 - SPINDLE
BSD-F016L65870.A33
F016L65870
|
£6.61
|
£7.93
|
|
|
452 - COMPANY LOGO ROTAK 40 GC
BSD-F016L66281.A1
F016L66281
|
-
|
|
|
|
501 - PLAIN WASHER dia8.15
BSD-F016T48185.A62
F016T48185
|
£3.72
|
£4.47
|
|
|
504 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A390
F016T49429
|
£1.75
|
£2.10
|
|
|
505 - SCREW
BSD-F016L65803.A78
F016L65803
|
-
|
|
|
|
506/1 - BOLT M6x50
BSD-F016L59277.A93
F016L59277
|
£3.80
|
£4.56
|
|
|
506/2 - WING NUT
BSD-F016L66136.A22
F016L66136
|
£4.26
|
£5.11
|
|
|
801 - MOTOR
BSD-F016103596.A29
F016103596
|
£134.16
|
£160.99
|
|
|
801/1/20 - BEARING
BSD-F016L64594.A18
F016L64594
|
£3.75
|
£4.50
|
|
|
841 - HOUSING
BSD-F016103599.A5
F016103599
|
£33.45
|
£40.14
|
|
|
841/1 - COVER
BSD-F016104317.A6
F016104317
|
£8.67
|
£10.41
|
|
|
850 - WHEEL
BSD-F016103992.A25
F016103992
|
-
|
|
|
|
860 - WHEEL
BSD-F016103994.A52
F016103994
|
-
|
|
|
|
875/02 - POWER SUPPLY CORD GB 22m 2 x 0.75mm without plug
BSD-F016104085.A11
F016104085
|
£31.64
|
£37.97
|
|
|
875/03 - CONNECTING CABLE
BSD-F016103602.A28
F016103602
|
£14.72
|
£17.67
|
|
|
875/7 - ON-OFF SWITCH
BSD-F016F05717.A21
F016F05717
|
£14.91
|
£17.89
|
|
|
878 - BOTTOM HANDLE
BSD-F016L65166.A11
F016L65166
|
-
|
|
|
|
883 - COVER
BSD-F016103608.A97
F016103608
|
£27.23
|
£32.68
|
|
|
893 - THERMAL PROTECTOR
BSD-F016103605.A28
F016103605
|
£12.04
|
£14.45
|
|
