Bosch AXT 23 TC / 3600H03271 / GB 230 Volt Spare Parts

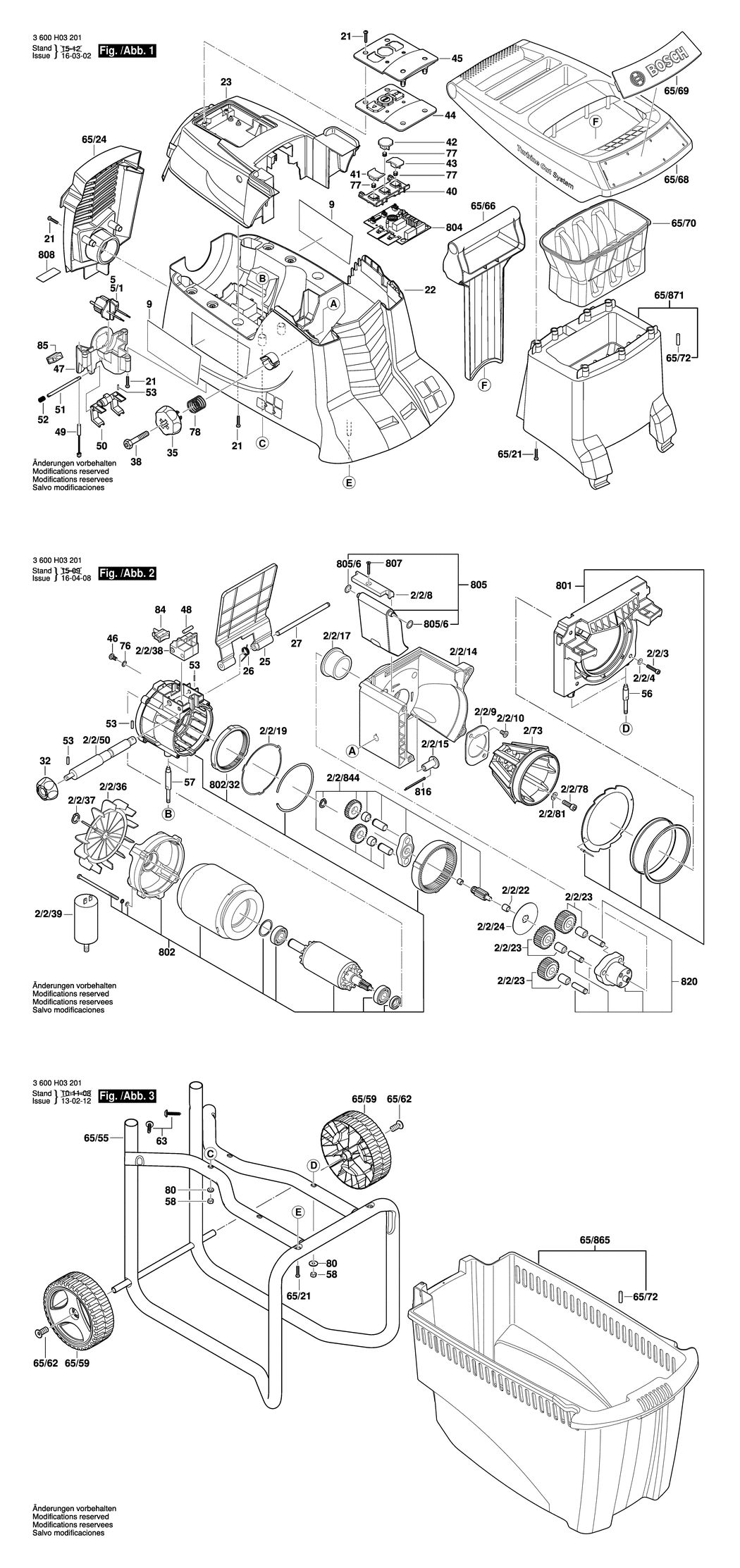

An exploded drawing and listing for the Bosch AXT 23 TC / 3600H03271 / GB 230 Volt

	Ex VAT	Inc VAT
2/73 - TURBINE CUTTER BSD-2609002763.A8 2609002763	£240.72	£288.87
2/2/3 - SCREW BSD-2609003824.A15 2609003824	£1.75	£2.10
2/2/4 - SPRING WASHER BSD-2609003825.A3 2609003825	£1.75	£2.10
2/2/8 - CONNECTING PLATE BSD-2609003828.A3 2609003828	£12.04	£14.45
2/2/9 - PLATE BSD-2609003829.A15 2609003829	£6.52	£7.83
2/2/10 - SCREW BSD-2609003830.A3 2609003830	£1.75	£2.10
2/2/14 - HOUSING BSD-2609003833.A15 2609003833	£81.81	£98.17
2/2/15 - INSERT BSD-2609003834.A3 2609003834	£5.58	£6.70
2/2/17 - FLANGED BEARING BSD-2609003836.A15 2609003836	£14.91	£17.89
2/2/19 - SEAL RING BSD-2609003838.A3 2609003838	£1.75	£2.10
2/2/22 - POROUS BEARING BSD-2609003841.A15 2609003841	£1.75	£2.10
2/2/23 - PLANET GEAR BSD-2609003842.A3 2609003842	£23.86	£28.63
2/2/24 - WASHER BSD-2609003843.A15 2609003843	£2.61	£3.13
2/2/36 - FAN BSD-2609003854.A4 2609003854	£8.67	£10.41
2/2/37 - SPRING RETAINING RING BSD-2609003855.A14 2609003855	£1.75	£2.10
2/2/38 - CLAMPING PIECE BSD-2609004582.A7 2609004582	£6.52	£7.83
2/2/39 - MOTOR CAPACITOR BSD-2609007667.A14 2609007667	£21.68	£26.01
2/2/50 - BOLT BSD-2609004520.A0 2609004520	£21.68	£26.01
2/2/78 - HEX SOCKET HEAD CAP SCREW BSD-2910400244.A5 2910400244	£1.75	£2.10
2/2/81 - LOCKING WASHER BSD-2609003315.A3 2609003315	£1.75	£2.10
2/2/844 - GEAR BOX BSD-2609007456.A2 2609007456	£40.80	£48.96
5/1 - WIRING SET BSD-2609003549.A1 2609003549	£59.53	£71.44
9 - MANUFACTURER'S NAMEPLATE AXT 23 TC BSD-2609003152.A2 2609003152	£2.80	£3.36
21 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A991 2603490024	£1.75	£2.10
22 - HOUSING BSD-2609004511.A9 2609004511	£37.27	£44.72
23 - UPPER HOUSING BSD-2609004512.A0 2609004512	£21.68	£26.01
25 - FLAP BSD-2609004514.A0 2609004514	£5.30	£6.36
26 - SPRING BSD-2609003144.A13 2609003144	£1.75	£2.10
27 - BOLT BSD-2609002795.A2 2609002795	£2.16	£2.59
32 - KNOB BSD-2609004515.A17 2609004515	£2.16	£2.59
35 - KNOB BSD-2609004516.A0 2609004516	£2.16	£2.59
38 - ADJUSTING SCREW BSD-2609004602.A2 2609004602	£6.52	£7.83
40 - HOLDER BSD-2609004640.A7 2609004640	£3.72	£4.47
41 - CAP BSD-2609003399.A3 2609003399	£1.75	£2.10
42 - CAP BSD-2609003400.A15 2609003400	£1.75	£2.10
43 - CAP BSD-2609003401.A3 2609003401	£1.75	£2.10
44 - RUBBER PAD BSD-2609002755.A4 2609002755	£12.04	£14.45
45 - COVER PLATE BSD-2609004607.A2 2609004607	£2.80	£3.36
46 - OVAL-HEAD SCREW M4x8 BSD-2603413035.A18 2603413035	£1.75	£2.10
47 - SOCKET HOUSING BSD-2609004519.A17 2609004519	£3.72	£4.47
48 - RELAY BSD-2609005130.A14 2609005130	£12.04	£14.45
49 - REED SWITCH BSD-2609003540.A16 2609003540	£21.52	£25.83
50 - ROCKER ROD BSD-2609004603.A15 2609004603	£2.61	£3.13
51 - BOLT BSD-2609002846.A16 2609002846	£5.30	£6.36
52 - SPRING BSD-2609002847.A2 2609002847	£1.75	£2.10
53 - SLOTTED SPRING PIN BSD-2609002793.A16 2609002793	£1.75	£2.10
56 - HOLDING PIN BSD-2609003267.A4 2609003267	£5.30	£6.36
57 - HOLDING PIN BSD-2609003268.A14 2609003268	£5.58	£6.70
58 - NUT BSD-2609003551.A3 2609003551	£1.75	£2.10
63 - THREAD-FORMING TAP. SCREW 4.8x22 BSD-2609003552.A15 2609003552	£1.75	£2.10
65/21 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A990 2603490024	£1.75	£2.10
65/24 - REAR HOUSING SECTION BSD-2609004513.A16 2609004513	£21.52	£25.83
65/55 - SUPPORTING FRAME BSD-2609004243.A1 2609004243	£120.11	£144.13
65/59 - WHEEL BSD-1607000E3U.A2 1607000E3U	£21.68	£26.01
65/62 - RETAINING PIN BSD-F016L64669.A39 F016L64669	£1.75	£2.10
65/66 - PUSHER BSD-2609002752.A7 2609002752	£6.52	£7.83
65/68 - HANDLE BSD-2609004641.A1 2609004641	£27.23	£32.68
65/69 - COMPANY LOGO AXT 25 D BSD-2609002685.A12 2609002685	£6.52	£7.83
65/70 - HOPPER BSD-2609004606.A2 2609004606	£18.96	£22.75
65/72 - MAGNET BSD-2609002799.A15 2609002799	£4.26	£5.11
65/865 - CATCHER CONTAINER BSD-2609006904.A15 2609006904	£40.80	£48.96
65/871 - CHUTE BSD-2609006903.A2 2609006903	£33.74	£40.49
76 - TOOTHED LOCK WASHER DIN 6797-A4.3-FST BSD-2916030006.A41 2916030006	£1.75	£2.10
77 - COMPRESSION SPRING BSD-2609003683.A3 2609003683	£1.75	£2.10
78 - SPRING BSD-2609004604.A2 2609004604	£1.75	£2.10
80 - WASHER DIN 9021-6.4x18x1.6 BSD-2610386712.A35 2610386712	£2.61	£3.13
82 - CABLE TIE BSD-2609003117.A5 2609003117	£1.75	£2.10
84 - SWITCH BSD-2609003145.A6 2609003145	£7.36	£8.83
85 - SWITCH ROCKER BSD-2609003517.A5 2609003517	£7.36	£8.83
801 - BEARING PLATE BSD-2609004913.A4 2609004913	£68.42	£82.10
802 - MOTOR BSD-2609004990.A3 2609004990	£218.41	£262.09
802/32 - RING GEAR BSD-2609003851.A7 2609003851	£13.12	£15.75
804 - ELECTRONIC ASSEMBLY BSD-1600A00H67.A3 1600A00H67	£81.81	£98.17
805 - GUIDE-PLATE BSD-2609004916.A4 2609004916	£27.23	£32.68
805/6 - O-RING BSD-2609004197.A3 2609004197	£1.75	£2.10
807 - SCREW BSD-2609003827.A14 2609003827	£1.75	£2.10
808 - NAMEPLATE BSD-160111A3XF.A0 160111A3XF	£2.61	£3.13
816 - SPLIT PIN BSD-2609004989.A14 2609004989	£2.16	£2.59
820 - SHAFT BSD-2609006274.A5 2609006274	£36.63	£43.96
