Bosch AQUATAK CLIC 135 / 3600H79270 / GB 230 Volt Spare Parts

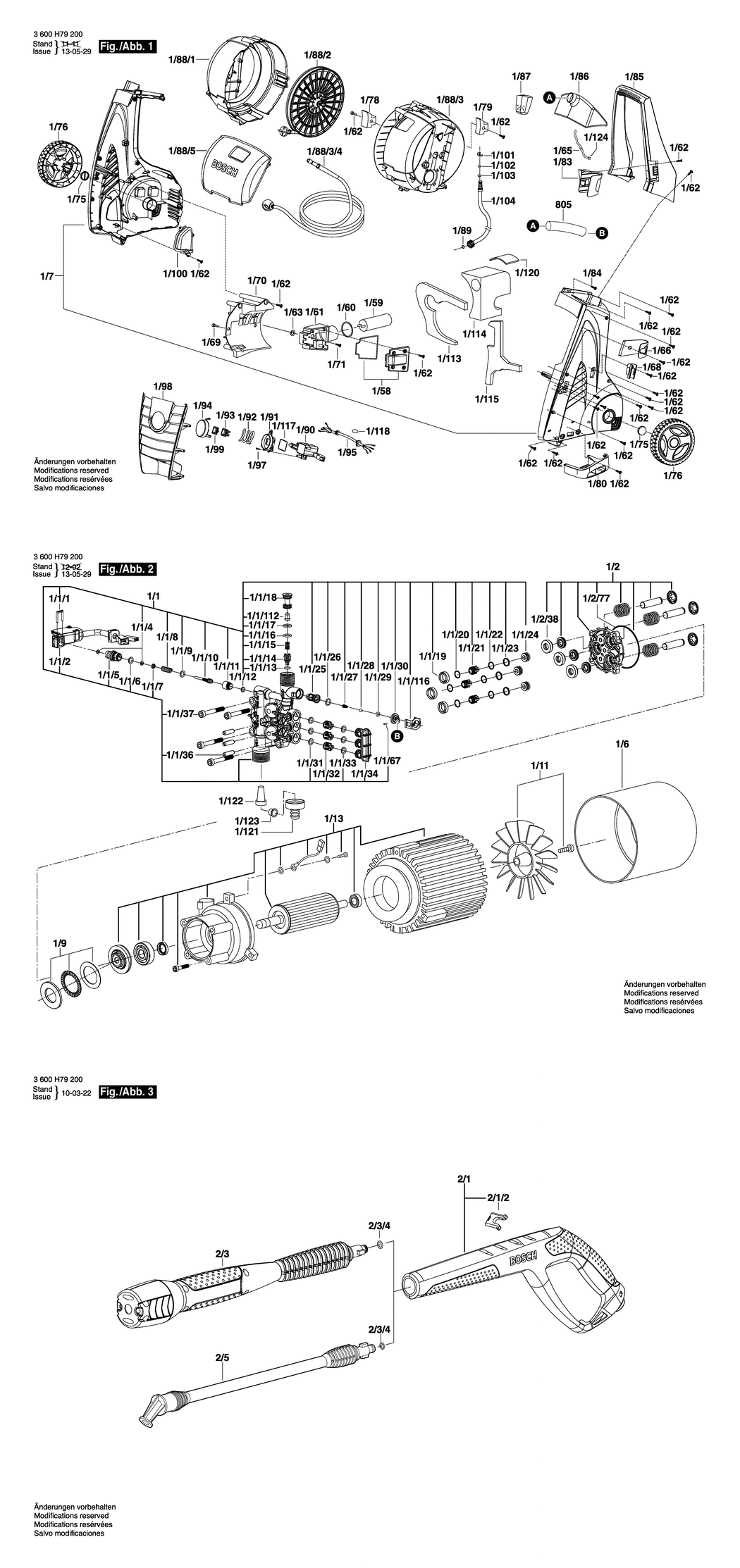

An exploded drawing and listing for the Bosch AQUATAK CLIC 135 / 3600H79270 / GB 230 Volt

	Ex VAT	Inc VAT
1/1 - CYLINDER HEAD BSD-F016F04091.A5 F016F04091	£156.22	£187.46
1/1/1 - HOOK BSD-F016F03862.A22 F016F03862	£1.75	£2.10
1/1/2 - MICROSWITCH BSD-F016F04092.A0 F016F04092	£27.23	£32.68
1/1/3 - SPACER BSD-F016F04093.A5 F016F04093	£3.80	£4.56
1/1/4 - O-RING BSD-F016F03867.A12 F016F03867	£1.32	£1.58
1/1/5 - NIPPLE BSD-F016F04094.A0 F016F04094	£21.68	£26.01
1/1/6 - O-RING 14.0x1.78 MM BSD-F016F03487.A55 F016F03487	£1.75	£2.10
1/1/7 - SPACER BSD-F016F04095.A5 F016F04095	£4.26	£5.11
1/1/8 - COMPRESSION SPRING BSD-F016F04096.A0 F016F04096	-
1/1/9 - O-RING BSD-F016F04097.A5 F016F04097	£2.80	£3.36
1/1/10 - PISTON BSD-F016F04098.A0 F016F04098	£8.67	£10.41
1/1/11 - PISTON BSD-F016F04099.A5 F016F04099	£7.36	£8.83
1/1/12 - O-RING BSD-F016F03869.A15 F016F03869	£1.75	£2.10
1/1/13 - O-RING BSD-F016F03925.A9 F016F03925	£1.75	£2.10
1/1/14 - VALVE BSD-F016F03941.A9 F016F03941	£1.75	£2.10
1/1/15 - COMPRESSION SPRING BSD-F016F03935.A4 F016F03935	£1.75	£2.10
1/1/16 - O-RING 8.73x1.78 MM BSD-F016F03483.A71 F016F03483	£1.75	£2.10
1/1/17 - O-RING BSD-F016F03869.A14 F016F03869	£1.75	£2.10
1/1/18 - NOZZLE BSD-F016F03945.A13 F016F03945	£1.75	£2.10
1/1/19 - BUSHING BSD-F016F03929.A11 F016F03929	£3.80	£4.56
1/1/20 - O-RING 8.73x1.78 MM BSD-F016F03483.A72 F016F03483	£1.75	£2.10
1/1/21 - VALVE BSD-F016F03970.A27 F016F03970	£1.75	£2.10
1/1/22 - O-RING BSD-F016F03919.A18 F016F03919	-
1/1/23 - BUSHING BSD-F016F03927.A13 F016F03927	£1.75	£2.10
1/1/24 - SPACER BSD-F016F03938.A9 F016F03938	£1.75	£2.10
1/1/25 - NIPPLE BSD-F016F03942.A4 F016F03942	£1.32	£1.58
1/1/26 - O-RING BSD-F016F03921.A9 F016F03921	£1.75	£2.10
1/1/27 - COMPRESSION SPRING BSD-F016F03934.A9 F016F03934	£1.75	£2.10
1/1/28 - BALL BSD-F016F03965.A13 F016F03965	£1.75	£2.10
1/1/29 - O-RING BSD-F016F03922.A4 F016F03922	£1.75	£2.10
1/1/30 - NIPPLE BSD-F016F03943.A9 F016F03943	£1.32	£1.58
1/1/31 - O-RING 8.73x1.78 MM BSD-F016F03483.A70 F016F03483	£1.75	£2.10
1/1/32 - VALVE BSD-F016F03970.A26 F016F03970	£1.75	£2.10
1/1/33 - O-RING BSD-F016F03919.A19 F016F03919	-
1/1/34 - COVER BSD-F016F03939.A4 F016F03939	£1.32	£1.58
1/1/36 - PIN BSD-F016F03969.A0 F016F03969	£1.32	£1.58
1/1/37 - SCREW BSD-F016F04100.A0 F016F04100	£1.75	£2.10
1/1/67 - PIN BSD-F016F04101.A13 F016F04101	£1.32	£1.58
1/1/112 - SPACER BSD-F016F04102.A0 F016F04102	£1.32	£1.58
1/1/116 - CLAMPING PIECE BSD-F016F04103.A5 F016F04103	£3.72	£4.47
1/2 - PUMP FLANGE BSD-F016F04104.A0 F016F04104	-
1/2/38 - BUSHING BSD-F016F03963.A13 F016F03963	£4.26	£5.11
1/2/77 - O-RING BSD-F016F04105.A5 F016F04105	£1.32	£1.58
1/6 - SEALING CAP BSD-F016F03721.A3 F016F03721	£13.41	£16.09
1/7 - HOUSING BSD-F016F03971.A2 F016F03971	£40.80	£48.96
1/9 - BALL BEARING BSD-F016F03017.A25 F016F03017	£33.45	£40.14
1/11 - PARTS SET BSD-F016F03719.A11 F016F03719	£6.61	£7.93
1/13 - MOTOR BSD-F016F04106.A0 F016F04106	£243.45	£292.14
1/58 - BOX COVER BSD-F016F04107.A5 F016F04107	£4.75	£5.70
1/59 - SUPPRESSION CAPACITOR BSD-F016F04108.A0 F016F04108	-
1/60 - O-RING BSD-F016F03461.A2 F016F03461	£1.32	£1.58
1/61 - HOUSING BSD-F016F04109.A4 F016F04109	£8.67	£10.41
1/62 - SCREW BSD-F016F03517.A31 F016F03517	£2.61	£3.13
1/63 - O-RING BSD-F016F03451.A3 F016F03451	£1.32	£1.58
1/65 - SLEEVE BSD-F016F03849.A7 F016F03849	-
1/66 - ACCESSORY DEPOSIT BSD-F016F03955.A12 F016F03955	£2.61	£3.13
1/68 - ACCESSORY DEPOSIT BSD-F016F04110.A1 F016F04110	£2.80	£3.36
1/69 - SCREW BSD-F016F04111.A4 F016F04111	£1.32	£1.58
1/70 - MOTOR BASE BSD-F016F04112.A1 F016F04112	£19.45	£23.34
1/71 - SCREW BSD-F016F04113.A4 F016F04113	£1.32	£1.58
1/75 - CAP BSD-F016F03951.A1 F016F03951	£1.75	£2.10
1/76 - ROLLER BSD-F016F03964.A2 F016F03964	£8.49	£10.19
1/78 - BRACKET BSD-F016F04114.A1 F016F04114	£10.10	£12.12
1/79 - BRACKET BSD-F016F04115.A4 F016F04115	£10.10	£12.12
1/80 - ACCESSORY DEPOSIT BSD-F016F04116.A1 F016F04116	£5.30	£6.36
1/83 - ACCESSORY DEPOSIT BSD-F016F03957.A10 F016F03957	£3.72	£4.47
1/84 - SCREW BSD-F016F04117.A4 F016F04117	£1.75	£2.10
1/85 - HANDLE BSD-F016F03948.A1 F016F03948	£11.30	£13.56
1/86 - TANK BSD-F016F03953.A1 F016F03953	£13.12	£15.75
1/87 - STOPPER BSD-F016F03952.A12 F016F03952	£1.66	£1.99
1/88/1 - DRUM BSD-F016F04132.A3 F016F04132	£21.68	£26.01
1/88/2 - POWER SUPPLY CORD BSD-F016F04133.A2 F016F04133	£114.88	£137.86
1/88/3 - DRUM UNIT BSD-F016F04134.A3 F016F04134	£218.41	£262.09
1/88/3/4 - TUBE BSD-F016F04135.A2 F016F04135	£116.15	£139.38
1/88/5 - COVER BSD-F016F04136.A3 F016F04136	£21.52	£25.83
1/89 - O-RING BSD-F016F03509.A22 F016F03509	£1.75	£2.10
1/90 - SWITCH HOUSING BSD-F016F04118.A1 F016F04118	£6.61	£7.93
1/91 - SWITCH COVER BSD-F016F04119.A12 F016F04119	£2.52	£3.02
1/92 - SPRING BSD-F016F04120.A1 F016F04120	£1.95	£2.34
1/93 - SWITCH BUTTON BSD-F016F04121.A4 F016F04121	£5.87	£7.04
1/94 - SWITCH BUTTON BSD-F016F04122.A1 F016F04122	-
1/95 - CONNECTION CABLE BSD-F016F03930.A2 F016F03930	£8.67	£10.41
1/97 - SCREW 4x16 BSD-F016F03079.A65 F016F03079	£1.32	£1.58
1/98 - HOUSING BSD-F016F03949.A12 F016F03949	£8.49	£10.19
1/99 - SWITCH COVER BSD-F016104123.A3 F016104123	£1.75	£2.10
1/100 - COVER BSD-F016F03980.A11 F016F03980	£1.66	£1.99
1/101 - BUSHING BSD-F016F03968.A12 F016F03968	£1.32	£1.58
1/102 - O-RING BSD-F016F03484.A11 F016F03484	£1.95	£2.34
1/103 - O-RING BSD-F016F03920.A3 F016F03920	£1.32	£1.58
1/104 - MANIFOLD PIPE SET BSD-F016F03966.A2 F016F03966	£31.64	£37.97
1/113 - PACKAGING BSD-F016F04124.A4 F016F04124	£5.30	£6.36
1/114 - AIR DISTRIBUTOR BSD-F016F04125.A1 F016F04125	£5.01	£6.01
1/115 - PACKAGING BSD-F016F04126.A4 F016F04126	£5.87	£7.04
1/118 - CABLE TIE BSD-F016F04127.A1 F016F04127	£1.75	£2.10
1/119 - CONNECTING TERMINAL BSD-F016F04128.A4 F016F04128	£1.32	£1.58
1/120 - STYROFOAM BSD-F016F04129.A1 F016F04129	£1.32	£1.58
1/121 - THREADED CONNECTION BSD-F016F03359.A73 F016F03359	£3.34	£4.01
1/122 - FILTER BSD-F016F03884.A24 F016F03884	£1.75	£2.10
1/123 - PLUG BSD-F016F04130.A15 F016F04130	£1.75	£2.10
1/124 - FILTER BSD-F016F04131.A1 F016F04131	£1.32	£1.58
2/1 - HANDLE BSD-F016F03978.A12 F016F03978	£45.67	£54.80
2/1/2 - STOP PLATE BSD-F016F03988.A10 F016F03988	£1.75	£2.10
2/3 - JET PIPE BSD-F016F03979.A1 F016F03979	-
2/3/4 - O-RING BSD-F016F03541.A52 F016F03541	-
2/5 - JET PIPE BSD-F016F04138.A1 F016F04138	£24.45	£29.34
805 - HOSE BSD-F016L72004.A14 F016L72004	£5.58	£6.70
