Bosch AQUATAK 150 PRO X / 3600H77BZ0 / DK 230 Volt Spare Parts

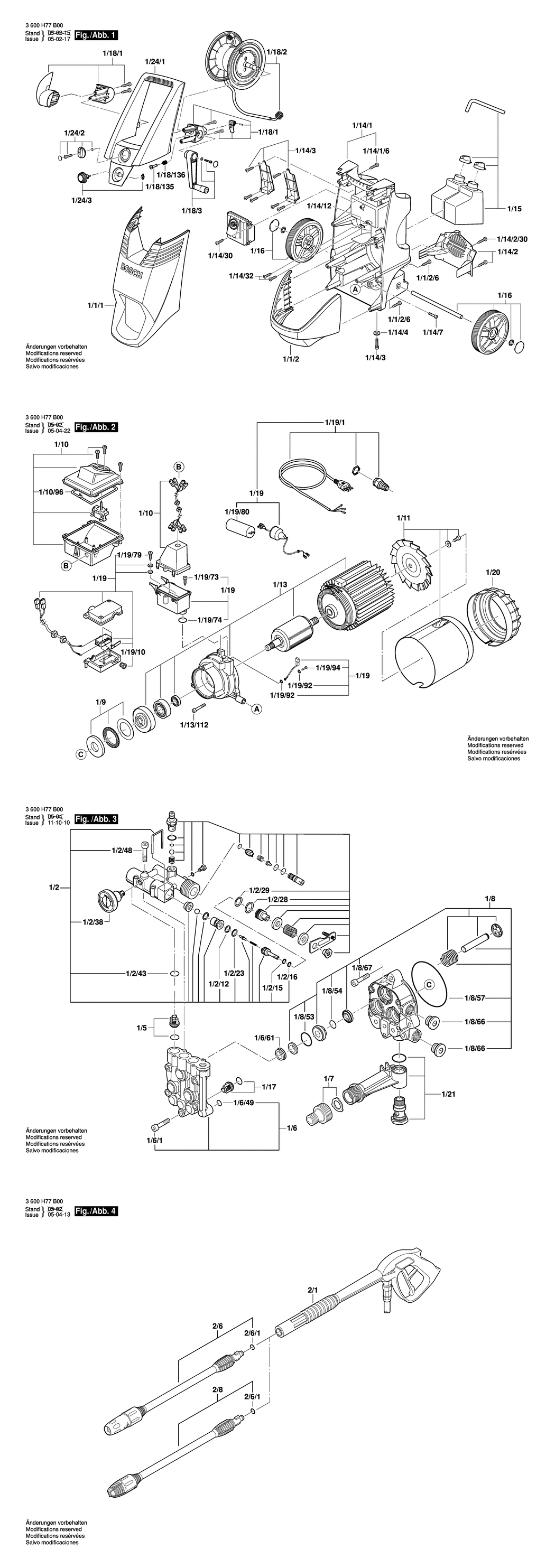

An exploded drawing and listing for the Bosch AQUATAK 150 PRO X / 3600H77BZ0 / DK 230 Volt

	Ex VAT	Inc VAT
1/1/1 - HOUSING BSD-F016F03577.A1 F016F03577	£48.38	£58.06
1/1/2 - HOUSING BSD-F016F03500.A8 F016F03500	-
1/1/2/6 - SCREW BSD-F016F03343.A51 F016F03343	-
1/2 - CONTROL HEAD BSD-F016F03574.A2 F016F03574	£88.07	£105.68
1/2/12 - WASHER BSD-F016F03482.A9 F016F03482	£1.75	£2.10
1/2/15 - O-RING BSD-F016F03484.A23 F016F03484	£1.95	£2.34
1/2/16 - WASHER BSD-F016F03485.A28 F016F03485	£1.75	£2.10
1/2/23 - O-RING 8.73x1.78 MM BSD-F016F03483.A57 F016F03483	£1.75	£2.10
1/2/28 - O-RING 14.0x1.78 MM BSD-F016F03487.A43 F016F03487	£1.75	£2.10
1/2/29 - O-RING 12.42x1.78 MM BSD-F016F03486.A8 F016F03486	£1.75	£2.10
1/2/38 - PRESSURE GAUGE BSD-F016F03432.A5 F016F03432	£31.64	£37.97
1/2/43 - O-RING BSD-F016F03431.A10 F016F03431	£1.75	£2.10
1/5 - VALVE BSD-F016F03011.A28 F016F03011	£12.04	£14.45
1/6 - CYLINDER HEAD BSD-F016F03435.A3 F016F03435	£88.07	£105.68
1/6/1 - SCREW BSD-F016F03436.A10 F016F03436	£1.32	£1.58
1/6/49 - O-RING BSD-F016F03437.A3 F016F03437	-
1/6/61 - O-RING 14x22x6 schwarz BSD-F016F03438.A10 F016F03438	-
1/7 - THREADED CONNECTION BSD-F016F03014.A16 F016F03014	-
1/8 - HOUSING BSD-F016F03439.A2 F016F03439	-
1/8/53 - O-RING BSD-F016F03564.A9 F016F03564	£1.75	£2.10
1/8/54 - O-RING BSD-F016F03565.A4 F016F03565	£2.33	£2.80
1/8/57 - O-RING 80.60x2.62 BSD-F016F03016.A21 F016F03016	£2.33	£2.80
1/8/66 - SEALING CAP BSD-F016F03070.A16 F016F03070	-
1/8/67 - SCREW BSD-F016F03440.A11 F016F03440	£1.75	£2.10
1/9 - BALL BEARING BSD-F016F03017.A16 F016F03017	£33.45	£40.14
1/10 - PARTS SET BSD-F016F03575.A6 F016F03575	£88.07	£105.68
1/10/96 - SEAL BSD-F016F03457.A10 F016F03457	£23.86	£28.63
1/11 - PARTS SET BSD-F016F03076.A20 F016F03076	£33.45	£40.14
1/13 - MOTOR BSD-F016F03477.A9 F016F03477	£352.76	£423.31
1/13/112 - SCREW M6x20 BSD-F016F03009.A26 F016F03009	£1.32	£1.58
1/14/1 - HOUSING BSD-F016F03511.A9 F016F03511	£129.38	£155.25
1/14/1/6 - SCREW BSD-F016F03343.A39 F016F03343	-
1/14/2 - HOUSING BSD-F016F03567.A9 F016F03567	£12.04	£14.45
1/14/2/30 - SCREW BSD-F016F03517.A8 F016F03517	£2.61	£3.13
1/14/3 - COVER BSD-F016F03568.A4 F016F03568	£6.52	£7.83
1/14/3 - SCREW BSD-F016F03512.A8 F016F03512	£1.75	£2.10
1/14/4 - WASHER BSD-F016F03513.A9 F016F03513	£1.75	£2.10
1/14/7 - SCREW BSD-F016F03512.A9 F016F03512	£1.75	£2.10
1/14/12 - CLAMPING PIECE BSD-F016F03035.A52 F016F03035	-
1/14/30 - SCREW BSD-F016F03517.A9 F016F03517	£2.61	£3.13
1/14/32 - SCREW 4;8x16 ZINC BSD-F016F03034.A21 F016F03034	£1.75	£2.10
1/15 - CONTAINER BSD-F016F03581.A0 F016F03581	£36.62	£43.95
1/16 - WHEEL BSD-F016F03520.A8 F016F03520	£41.62	£49.95
1/17 - VALVE BSD-F016F03054.A17 F016F03054	£13.12	£15.75
1/18/1 - PARTS SET BSD-F016F03578.A5 F016F03578	£16.74	£20.09
1/18/2 - HOSE HOLDER BSD-F016F03582.A4 F016F03582	£251.67	£302.00
1/18/3 - HANDLE BSD-F016F03583.A4 F016F03583	£37.72	£45.27
1/19 - PARTS SET BSD-F016F03576.A2 F016F03576	£103.14	£123.77
1/19/10 - HOUSING BSD-F016F03337.A57 F016F03337	£4.75	£5.70
1/19/73 - SCREW BSD-F016F03343.A37 F016F03343	-
1/19/74 - O-RING 19.0x2.0 MM BSD-F016F03376.A9 F016F03376	£1.32	£1.58
1/19/79 - SCREW BSD-F016F02894.A9 F016F02894	-
1/19/80 - SUPPRESSION CAPACITOR BSD-F016F03101.A12 F016F03101	-
1/19/92 - WASHER BSD-F016F03031.A12 F016F03031	£1.32	£1.58
1/19/94 - SCREW M4x12 BSD-F016F03032.A4 F016F03032	-
1/20 - HOUSING BSD-F016F03409.A0 F016F03409	£11.30	£13.56
1/21 - INLET CONNECTOR BSD-F016F03441.A2 F016F03441	-
1/24/1 - HANDLE BSD-F016F03579.A0 F016F03579	£36.62	£43.95
1/24/2 - KNOB BSD-F016F03570.A9 F016F03570	£3.34	£4.01
1/24/3 - ADJUSTMENT KNOB BSD-F016F03580.A4 F016F03580	£33.74	£40.49
2/1 - HANDLE BSD-F016F03539.A11 F016F03539	£54.42	£65.30
2/6 - JET PIPE BSD-F016F03540.A7 F016F03540	£59.53	£71.44
2/6/1 - O-RING BSD-F016F03541.A4 F016F03541	-
2/8 - NOZZLE BSD-F016F03542.A7 F016F03542	-
