Bosch AHR 700 / 0600812032 / CH 230 Volt Spare Parts

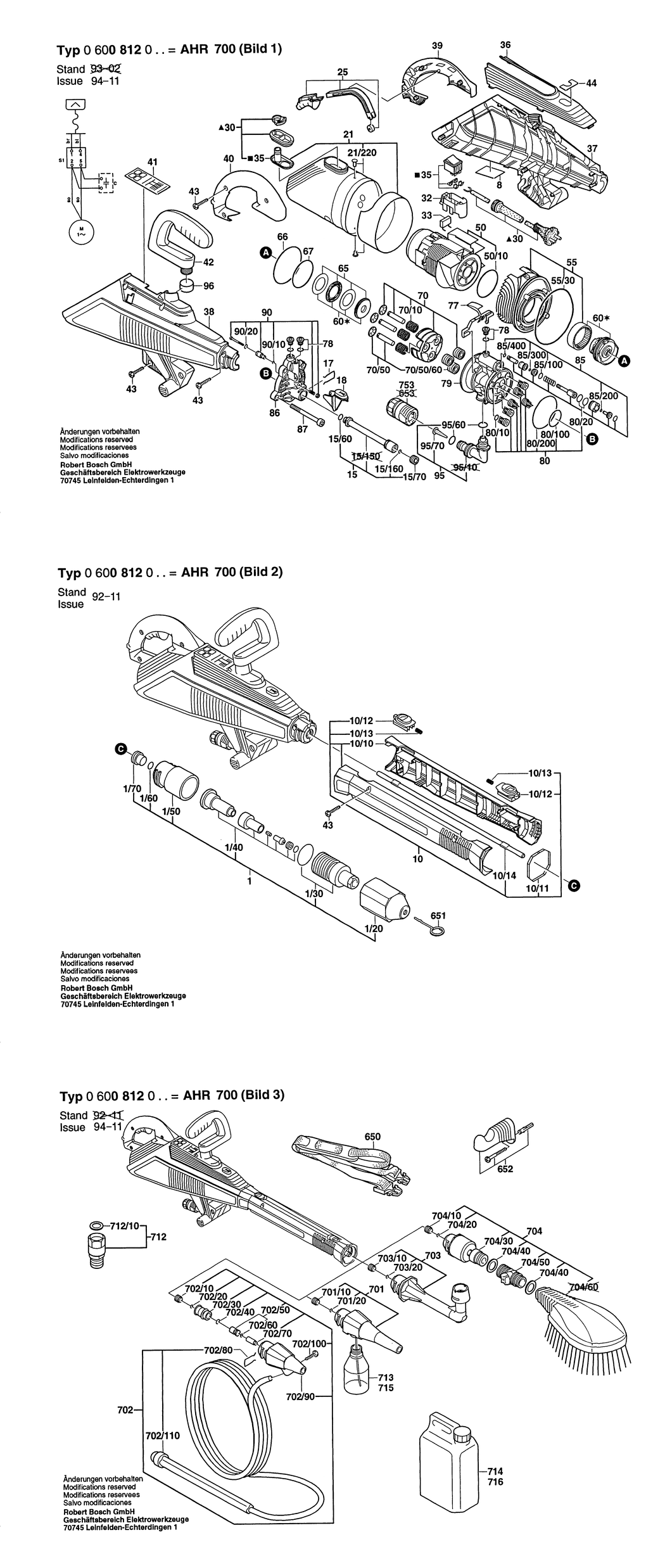

An exploded drawing and listing for the Bosch AHR 700 / 0600812032 / CH 230 Volt

	Ex VAT	Inc VAT
1 - NOZZLE BSD-1609350206.A0 1609350206	-
1/20 - HOUSING BSD-1609350244.A2 1609350244	-
1/30 - NOZZLE CARRIER BSD-1609350245.A1 1609350245	-
1/40 - REPAIR KIT BSD-1609350207.A3 1609350207	-
1/50 - COVER BSD-1609350262.A0 1609350262	-
1/60 - PARTS SET dia2.5x7.0 MM BSD-1609350241.A13 1609350241	-
1/70 - HOLDER BSD-1609350251.A16 1609350251	-
8 - NAMEPLATE BSD-1601118146.A0 1601118146	-
10 - SPRAY TUBE BSD-1609350208.A0 1609350208	-
15 - PRESSURE TUBE BSD-1609350209.A3 1609350209	-
15/60 - PARTS SET dia2.5x7.0 MM BSD-1609350241.A19 1609350241	-
15/70 - HOLDER BSD-1609350251.A17 1609350251	-
15/160 - PARTS SET dia11.1x1.6 MM BSD-1609350263.A3 1609350263	-
17 - HOLDING SPRING BSD-1609350210.A0 1609350210	-
18 - PUSH-BUTTON BSD-1609350211.A3 1609350211	-
21 - REPAIR KIT BSD-1609350212.A0 1609350212	-
21/220 - REPAIR KIT BSD-1609350213.A3 1609350213	-
25 - REPAIR KIT BSD-1609350277.A2 1609350277	-
30 - POWER SUPPLY CORD L=5 M BSD-1609350276.A0 1609350276	-
32 - SWITCH HOUSING BSD-1609350215.A2 1609350215	-
33 - SUPPRESSION FILTER BSD-1609350216.A1 1609350216	-
35 - REPAIR KIT BSD-1609350217.A2 1609350217	-
36 - COVER PLATE BSD-1609350218.A1 1609350218	-
37 - HOUSING SECTION BSD-1609350219.A2 1609350219	-
38 - HOUSING SECTION BSD-1609350264.A2 1609350264	£37.72	£45.27
39 - HANDLE BSD-1609350220.A1 1609350220	-
40 - HANDLE BSD-1609350265.A1 1609350265	-
41 - REFERENCE PLATE BSD-1609350221.A2 1609350221	-
42 - STRAP-SHAPED HANDLE BSD-1609350222.A1 1609350222	-
43 - PARTS SET BSD-1609350223.A2 1609350223	-
44 - REFERENCE PLATE BSD-1601118162.A2 1601118162	-
50 - REPAIR KIT BSD-1609350224.A1 1609350224	-
50/10 - PARTS SET dia2.5x44 MM BSD-1609350287.A2 1609350287	-
55 - REPAIR KIT BSD-1609350225.A1 1609350225	-
55/30 - PARTS SET dia6x120 MM BSD-1609350288.A2 1609350288	-
60 - REPAIR KIT BSD-1609350226.A1 1609350226	-
65 - REPAIR KIT BSD-1609350227.A2 1609350227	-
66 - PARTS SET dia84x2 MM BSD-1609350228.A1 1609350228	-
67 - PARTS SET dia64x2 MM BSD-1609350229.A2 1609350229	-
70 - REPAIR KIT BSD-1609350230.A1 1609350230	-
70/10 - PARTS SET BSD-1609350266.A2 1609350266	-
70/50 - REPAIR KIT BSD-1609350267.A1 1609350267	-
70/50/60 - THRUST RING BSD-1609350275.A1 1609350275	-
77 - CONTROL LEVER BSD-1609350231.A2 1609350231	-
78 - PARTS SET BSD-1609350232.A1 1609350232	-
79 - HOUSING BSD-1609350233.A2 1609350233	-
80 - REPAIR KIT BSD-1609350234.A1 1609350234	-
80/10 - PARTS SET dia2x10 MM BSD-1609350065.A80 1609350065	-
80/20 - PARTS SET dia17.1x1.6 MM BSD-1609350268.A2 1609350268	-
80/100 - PARTS SET dia2x35 MM BSD-1609350269.A1 1609350269	-
80/200 - PARTS SET dia2.0x74.0 MM BSD-1609350270.A2 1609350270	-
85 - REPAIR KIT BSD-1609350235.A2 1609350235	-
85/100 - PARTS SET dia1.6x12.1 MM BSD-1609350278.A3 1609350278	-
85/200 - PARTS SET dia1.2x3.5 MM BSD-1609350279.A0 1609350279	-
85/300 - PARTS SET dia1.78x5.28 MM BSD-1609350280.A3 1609350280	-
85/400 - PARTS SET dia1.5x8.0 MM BSD-1609350281.A0 1609350281	-
86 - CYLINDER HEAD BSD-1609350236.A1 1609350236	-
87 - PARTS SET BSD-1609350237.A2 1609350237	-
90 - REPAIR KIT BSD-1609350238.A1 1609350238	-
90/10 - PARTS SET dia2.62x2.85 MM BSD-1609350271.A1 1609350271	-
90/20 - PARTS SET dia1.0x7.0 MM BSD-1609350272.A2 1609350272	-
95 - CONNECTING PIECE BSD-1609350239.A2 1609350239	-
95/60 - PARTS SET dia2.4x11.6 MM BSD-1609350273.A1 1609350273	-
95/70 - SUCTION FILTER BSD-1609350274.A2 1609350274	-
96 - RETAINING SNAP RING BSD-1609350289.A1 1609350289	£1.95	£2.34
650 - SHOULDER STRAP BSD-1609350203.A1 1609350203	-
651 - CLEANING PIN BSD-1609350124.A10 1609350124	-
652 - HIGH PRESSURE CLEANER BSD-1609350204.A2 1609350204	-
701 - FOAM SPRAY DEVICE BSD-2609200169.A0 2609200169	-
701/10 - HOLDER BSD-1609350251.A14 1609350251	-
701/20 - PARTS SET dia2.5x7.0 MM BSD-1609350241.A10 1609350241	-
702 - SAND BLAST EQUIPMENT BSD-2609200168.A3 2609200168	-
702/10 - HOLDER BSD-1609350251.A15 1609350251	-
702/20 - PARTS SET dia2.5x7.0 MM BSD-1609350241.A12 1609350241	-
702/30 - INSERT BSD-1609350257.A1 1609350257	-
702/40 - PARTS SET dia2.4x18.3MM BSD-1609350242.A1 1609350242	-
702/50 - NOZZLE BSD-1609350258.A2 1609350258	-
702/60 - PARTS SET dia2xdia11 MM BSD-1609350074.A6 1609350074	-
702/70 - NOZZLE BSD-1609350134.A29 1609350134	-
702/80 - CLIP BSD-1609350259.A1 1609350259	-
702/90 - HOUSING BSD-1609350260.A2 1609350260	-
702/100 - TAPPING SCREW DIN 7981 2.9x6.5 BSD-2912401004.A3 2912401004	-
702/110 - SUCTION CONNECTION PIECE BSD-1609350135.A15 1609350135	-
703 - JET PIPE BSD-2609200167.A0 2609200167	-
703/10 - HOLDER BSD-1609350251.A12 1609350251	-
703/20 - PARTS SET dia2.5x7.0 MM BSD-1609350241.A11 1609350241	-
704 - CLEANING BRUSH BSD-2609200166.A3 2609200166	-
704/10 - HOLDER BSD-1609350251.A13 1609350251	-
704/20 - PARTS SET dia2.5x7.0 MM BSD-1609350241.A16 1609350241	-
704/30 - ADAPTER BSD-1609350286.A2 1609350286	-
704/40 - GASKET dia15xdia24x3=3/4 BSD-1609351002.A184 1609351002	-
704/50 - CONNECTING PIECE BSD-1609351014.A63 1609351014	£21.52	£25.83
712 - NON-RETURN VALVE BSD-1609350060.A9 1609350060	-
712/10 - GASKET dia15xdia24x3=3/4 BSD-1609351002.A185 1609351002	-
713 - CLEANING AGENT 1x0.55 LITER BSD-1609350152.A5 1609350152	-
714 - CLEANING AGENT 1x2.5 LITER BSD-1609350154.A5 1609350154	-
715 - WAX 1x0.55 LITER BSD-1609350161.A35 1609350161	-
716 - WAX 1x2.5 LITER BSD-1609350162.A5 1609350162	-
753 - HOSE COUPLING 1/2 BSD-0600802009.A14 0600802009	-
