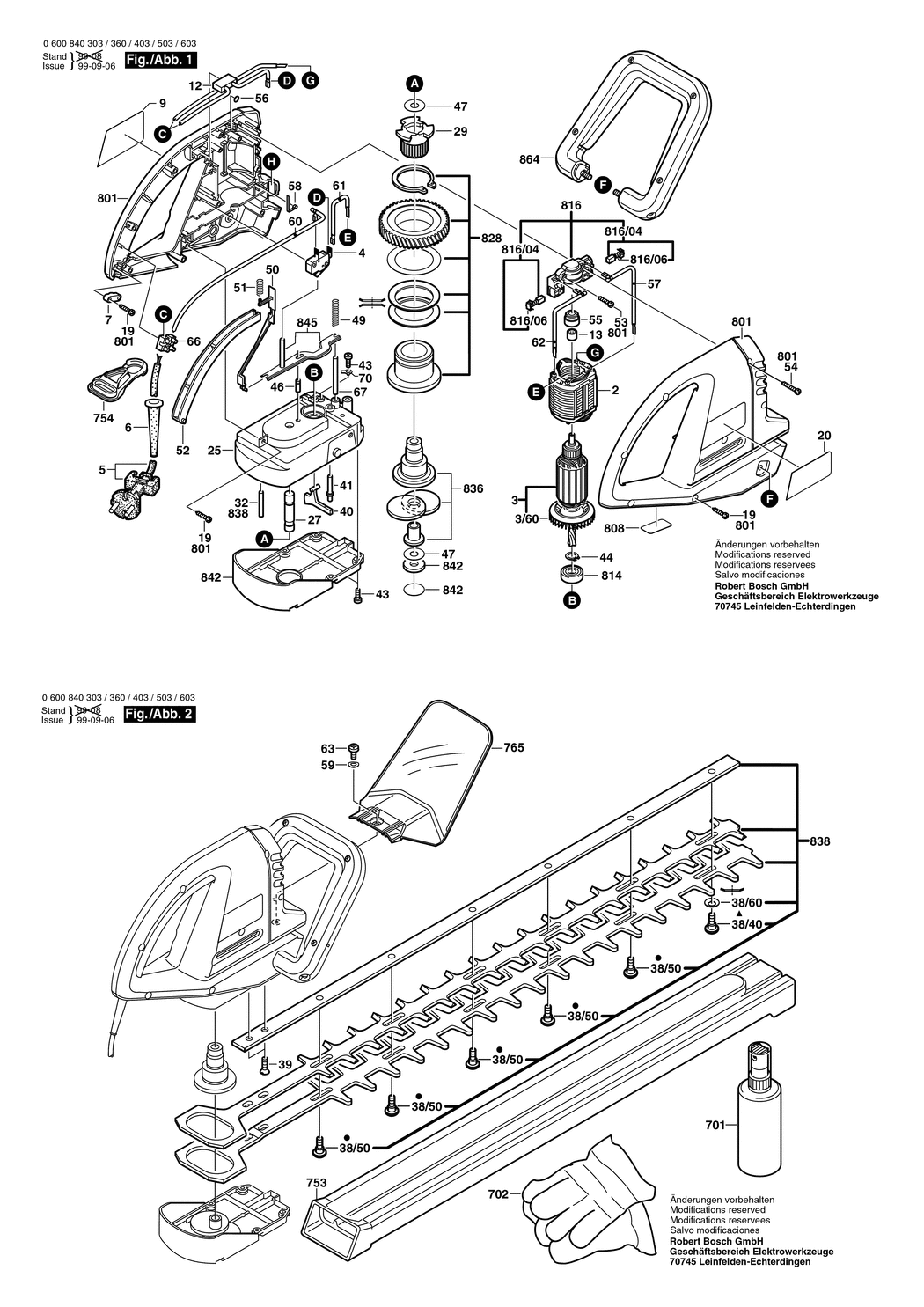

2 - FIELD 220-230V
BSD-2604220429.A16
2604220429
|
£23.86
|
£28.63
|
|
|
3 - ARMATURE 230V
BSD-2604010870.A3
2604010870
|
-
|
|
|
|
3/60 - FAN
BSD-2606610068.A27
2606610068
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200291.A24
2607200291
|
-
|
|
|
|
5 - POWER SUPPLY CORD EU 0.46m 2 x 1.0mm H05 VV-F
BSD-2604460255.A47
2604460255
|
£8.67
|
£10.41
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A405
2600703017
|
£2.74
|
£3.29
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2571
2601035001
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601117073.A0
2601117073
|
-
|
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-2607329133.A27
2607329133
|
-
|
|
|
|
13 - FLANGED BEARING
BSD-2605805004.A7
2605805004
|
£8.67
|
£10.41
|
|
|
19 - SCREW 4x16
BSD-2603490022.A2301
2603490022
|
£1.84
|
£2.21
|
|
|
20 - REFERENCE PLATE
BSD-2601118184.A17
2601118184
|
-
|
|
|
|
25 - GEAR HOUSING
BSD-2605806407.A0
2605806407
|
-
|
|
|
|
27 - AXLE
BSD-2603120041.A13
2603120041
|
-
|
|
|
|
29 - FREEWHEELING
BSD-2606490054.A27
2606490054
|
-
|
|
|
|
32 - BRAKE SPRING
BSD-2603001005.A3
2603001005
|
-
|
|
|
|
38/40 - THREAD-FORMING TAP. SCREW
BSD-2603413031.A34
2603413031
|
-
|
|
|
|
38/50 - THREAD-FORMING TAP. SCREW
BSD-2603413032.A24
2603413032
|
-
|
|
|
|
38/60 - CUPPED WASHER
BSD-2600200036.A0
2600200036
|
-
|
|
|
|
39 - COUNTERSUNK-HEAD SCREW TORX T25
BSD-2603421223.A3
2603421223
|
-
|
|
|
|
40 - CONTROL LEVER
BSD-2603239020.A2
2603239020
|
-
|
|
|
|
41 - SWITCH SLIDE
BSD-2603123020.A2
2603123020
|
-
|
|
|
|
43 - THREAD-FORMING TAP. SCREW M4x12 MM
BSD-2603410049.A294
2603410049
|
£1.84
|
£2.21
|
|
|
44 - SPRING RETAINING RING DIN 471 9x1MM
BSD-2916640006.A58
2916640006
|
£1.84
|
£2.21
|
|
|
46 - CRANK ROD
BSD-2603123021.A25
2603123021
|
-
|
|
|
|
47 - SHIM 0.2 MM
BSD-2600101614.A35
2600101614
|
-
|
|
|
|
47 - SHIM 0.3 MM
BSD-2600101654.A25
2600101654
|
£2.33
|
£2.80
|
|
|
49 - COMPRESSION SPRING
BSD-2604610029.A25
2604610029
|
-
|
|
|
|
50 - SHIFTER ROD
BSD-2608040060.A3
2608040060
|
-
|
|
|
|
51 - COMPRESSION SPRING
BSD-2604610027.A26
2604610027
|
-
|
|
|
|
52 - SWITCH SEGMENT
BSD-2608001011.A57
2608001011
|
-
|
|
|
|
53 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A418
2603490023
|
£1.84
|
£2.21
|
|
|
54 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A840
2603490024
|
£1.84
|
£2.21
|
|
|
55 - BEARING SLEEVE
BSD-2600222002.A29
2600222002
|
-
|
|
|
|
56 - O-RING 5.0x1.5 MM
BSD-1900210000.A97
1900210000
|
£1.84
|
£2.21
|
|
|
57 - CONNECTING CABLE L=50 MM
BSD-2604448190.A2
2604448190
|
-
|
|
|
|
58 - CONTACT SPRING
BSD-2601329057.A151
2601329057
|
-
|
|
|
|
59 - SPRING WASHER DIN 137-A 5-FST
BSD-2916061006.A0
2916061006
|
-
|
|
|
|
60 - CONNECTING CABLE L=273 MM
BSD-2604448162.A2
2604448162
|
-
|
|
|
|
61 - CONNECTING CABLE L=88 MM
BSD-2604448034.A40
2604448034
|
£1.75
|
£2.10
|
|
|
62 - CONNECTING CABLE L=73 MM
BSD-2604448123.A7
2604448123
|
-
|
|
|
|
63 - OVAL-HEAD SCREW DIN 7985-M5x10-4.8
BSD-2910641152.A26
2910641152
|
-
|
|
|
|
66 - CLAMPING STRIP
BSD-2604490012.A8
2604490012
|
-
|
|
|
|
67 - STRAIGHT PIN
BSD-2609002714.A142
2609002714
|
£1.84
|
£2.21
|
|
|
70 - TAB WASHER
BSD-2601098019.A3
2601098019
|
-
|
|
|
|
701 - OIL SPRAY TIN
BSD-1609200399.A66
1609200399
|
£9.18
|
£11.01
|
|
|
702 - PROTECTIVE GLOVE
BSD-2607000134.A43
2607000134
|
-
|
|
|
|
753 - OIL RESERVOIR
BSD-2605411040.A2
2605411040
|
-
|
|
|
|
754 - STRAIN-RELIEF CLAMP
BSD-2601398012.A7
2601398012
|
-
|
|
|
|
765 - PROTECTIVE SHIELD
BSD-2607001151.A3
2607001151
|
-
|
|
|
|
801 - HOUSING SECTION
BSD-2605104836.A23
2605104836
|
-
|
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A4253
160111A3H3
|
£2.74
|
£3.29
|
|
|
814 - GROOVE BALL BEARING 9x24x7
BSD-2600905039.A290
2600905039
|
£12.64
|
£15.17
|
|
|
816 - BRUSH PLATE
BSD-2609992604.A68
2609992604
|
-
|
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2607014001.A38
2607014001
|
-
|
|
|
|
816/06 - RATCHET CAP
BSD-2601322013.A355
2601322013
|
£1.84
|
£2.21
|
|
|
828 - SLIDING CLUTCH
BSD-2606490916.A1
2606490916
|
-
|
|
|
|
836 - ECCENTRIC
BSD-2602210908.A12
2602210908
|
-
|
|
|
|
838 - SET OF KNIVES 700 MM
BSD-2607001232.A10
2607001232
|
-
|
|
|
|
842 - GEAR COVER
BSD-2605500132.A15
2605500132
|
-
|
|
|
|
845 - SWITCHING ELEMENT
BSD-2601901003.A0
2601901003
|
-
|
|
|
|
864 - AUXILIARY HANDLE
BSD-2602025107.A27
2602025107
|
-
|
|
|
